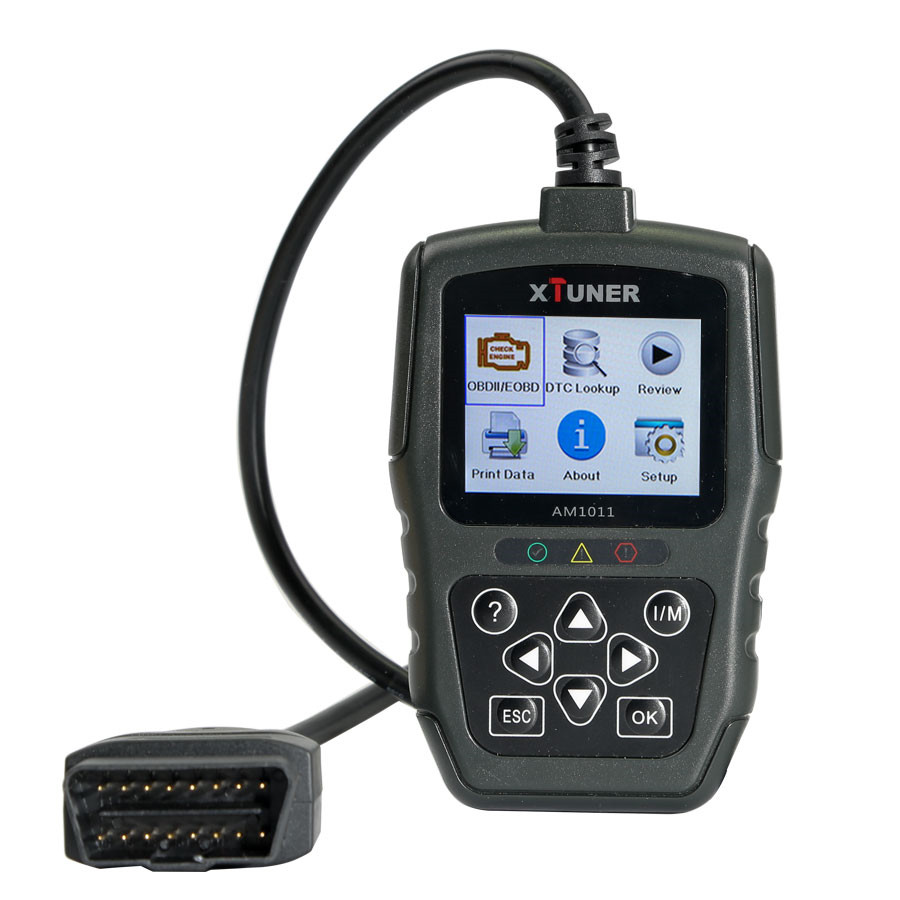

XTUNER AM1011 OBDII/EOBD PLUS Code Reader

XTUNER AM1011 Language: English, Spanish, French, Portuguese, Swedish.
More languages available: German, Polish, Russian, Italian, Hungarian, Dutch.

XTUNER AM1011 Compatible Vehicles:

Compatible with All 1996 & newer vehicles (OBDII and EOBD)
Supported Protocols: J1859-PWM, J1850-VPW, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)

XTUNER AM1011 Functions:

Retrieves Manufacturers Specific & Pending Codes automatically by VIN code
Reads, Displays and Clears Diagnostic Trouble Codes
Reads & Displays Vehicle Identification Number (VIN)
Reads & Display Inspection/Maintenance Monitor Status (I/M)
Live Data-Display complete OBD-II vehicle data stream
Live Data-Records and Plays back complete OBD-II vehicle data stream
DTC Lookup
Data Graphing
Print via PC for live data, DTCs & Vehicle information
I/M Readiness Key
Enhanced OBD-II Mode 6

XTUNER AM1011 Test reports:

Read informative post: Test Xtuner AM1011 scanner test reports on Hyundai
Youtube video demo on XTUNER AM1011 Code Reader Test On Hyundai

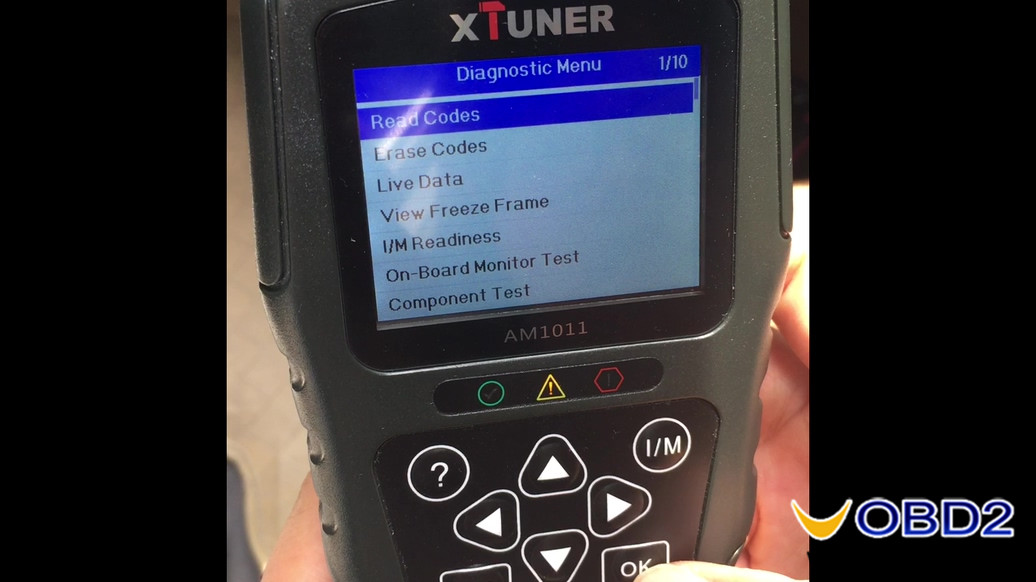

Pic.1: XTUNER AM1011 diagnostic menu

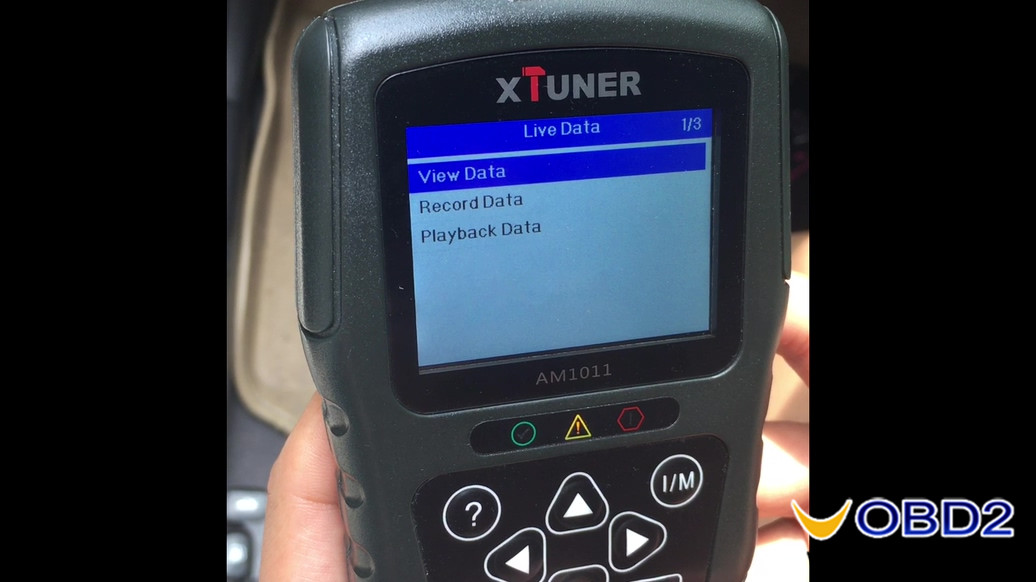

Pic.2: XTUNER AM1011 live data

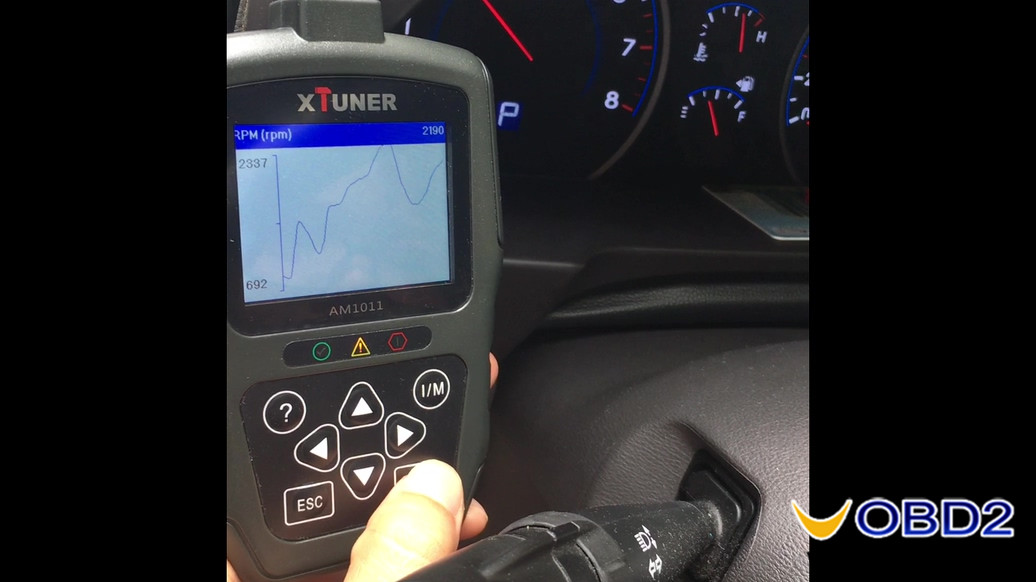

Pic.3: XTUNER AM1011 read live data in Waveform format

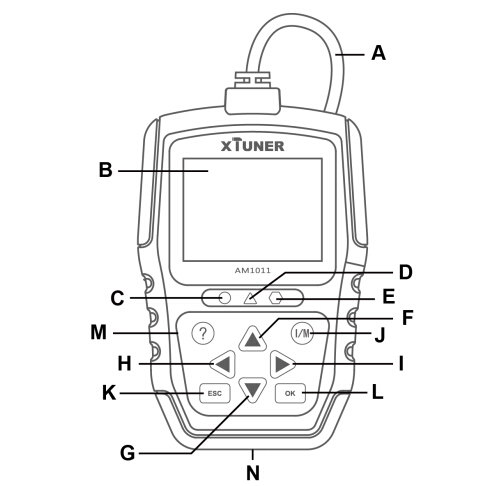

XTUNER AM1011 Scan Tool Descriptions:

A. OBD II Cable- provides communication for vehicle DLC.
B .LCD Display - shows menus, test results and operation tips.
C. Green LED Display- indicates the engine system is working normally (all monitors on the vehicles are active and performing their diagnostic testing), and no DTCs are found.
D. Yellow LED Display- shows the tool finds a possible problem. Pending DTCs exist or/and some of the vehicle’s emission monitors have not run their diagnostic testing.
E. Red LED Display -indicates there are some problems in one or more of the vehicle’s systems. In this case, the MIL lamp on the instrument panel is on.
F. UP Key - quick access to the Read Codes function before going to diagnostic menu and moves selection up. When looking up DTC, it is used to change value of selected character.
G. DOWN Key - Quick access to the Clear Codes function before going to diagnostic menu and moves selection down. When looking up DTC, it is used to change value of selected character.
H. LEFT SCROLL Key-goes to previous character when looking up DTCs. Scrolls back and forth through codes found and through different screens of data. Also it is used to make selection of PIDs when viewing custom PID list, and to view PID graphs.
I. RIGHT SCROLL Key-goes to next character when looking up DTCs. Scrolls back and forth through codes found and through different screens of data. Also it is used to cancel all selections of PIDs when viewing custom PID list.
J. One Click I/M Readiness Key -quick checks state emissions readiness and drive cycle verification.
K. ESC Key - cancels an action and returns to previous screen or level.
L.OK Key - confirms an action or movement and moves to next level.
M. Key - accesses to the Help function and it is also used to update the code reader when long pressed.
N. USB Port – provides a USB connection between the code reader and PC or laptop.

XTUNER AM1011 Specification:

Display: 2.8"TFT color display
Working Temperature: 0 to 60 (32 to 140 F)
Storage Temperature: -20 to 70 (-4 to 158 F)
Power Supply: 8 to 18V vehicle power
Dimension: 125*80*24mm
Weight: 0.5KG

XTuner AM1011 Package List:

1pc x XTUNER AM1011 Main Unit
1pc x User manual
1pc x USB cable
