2012 code scanner LAUNCH CReader VI

1. Read dynamic datastream
2. MIL indicator
3. Readiness status test
4. Search freeze frame data

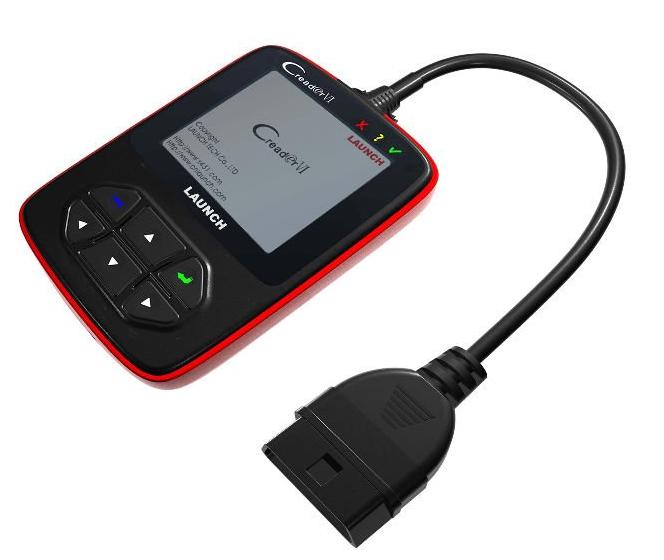

2012 code scanner Launch CReader VI

Specifications
Launch Creader VI is especially for the DIY users and the servicemen of small service workshop with multi-language selection.Launch Creader VI is the next generation of vehicle fault diagnosis tool developed by Launch, especially for the DIY users and the servicemen of small service workshop. Launch Creader VI applies the color LCD display and personalized function menu. It can diagnose the OBD & EOBD vehicles in whole functions with multi-language selection and LED diagnostic status indicators, which improves the user-friendliness. Meanwhile, the adoption of a whole new operation system makes the Creader VI run faster and help the user diagnose the vehicle more efficient.

Features
Read dynamic datastream
MIL indicator
Readiness status test
Search freeze frame data
Read current DTCs
Clear DTCs
O2 sensor detection test
Specified monitoring system on-board monitor test
Read pending DTCs
Read on-board systems or components control
Read vehicle information
Read permanent DTCs
DTCs search
Tested data playback

Specifications
Screen: 2.8'' TFT 262K true color, 320*240 Pixels LCD display
Input voltage range: 8 ~ 32V
Operating current:<100mA@12V(Typical)
Power consumption: <1.2W(Typical)
Link connection: Standard OBD 16-pin DLC
Operating temperature: 0 C ~ 50 C
Storage temperature: -20 C ~ 70 C @ RH 60%
Outline dimension: L * W * H = 121 * 82 * 26mm
Weight: <500g per set
