Latest Xhorse VVDI Key Tool Max

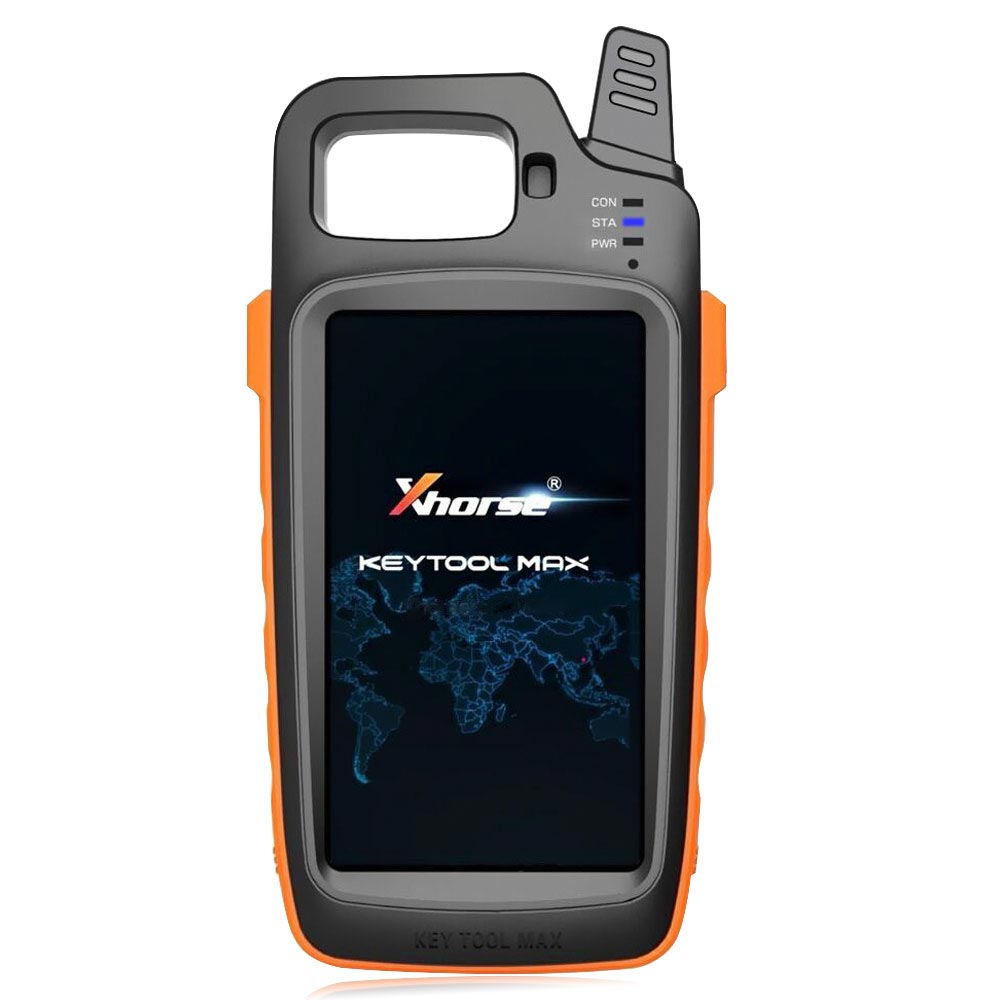

VVDI Key Tool Max is a professional smart device with multi-function,Bluetooth and WIFI communication interface are intergrated inside,which is convenient for connecting Xhorse Key Cutting Machine,MINI OBD TOOL and other products to do specific operations.This device adopts HD LCD screen with clear interface,easy to use and flexibility.

VVDI Key Max Features:

1. Use KEY TOOL MAX to connect the dolphin to cut the key for the customer.

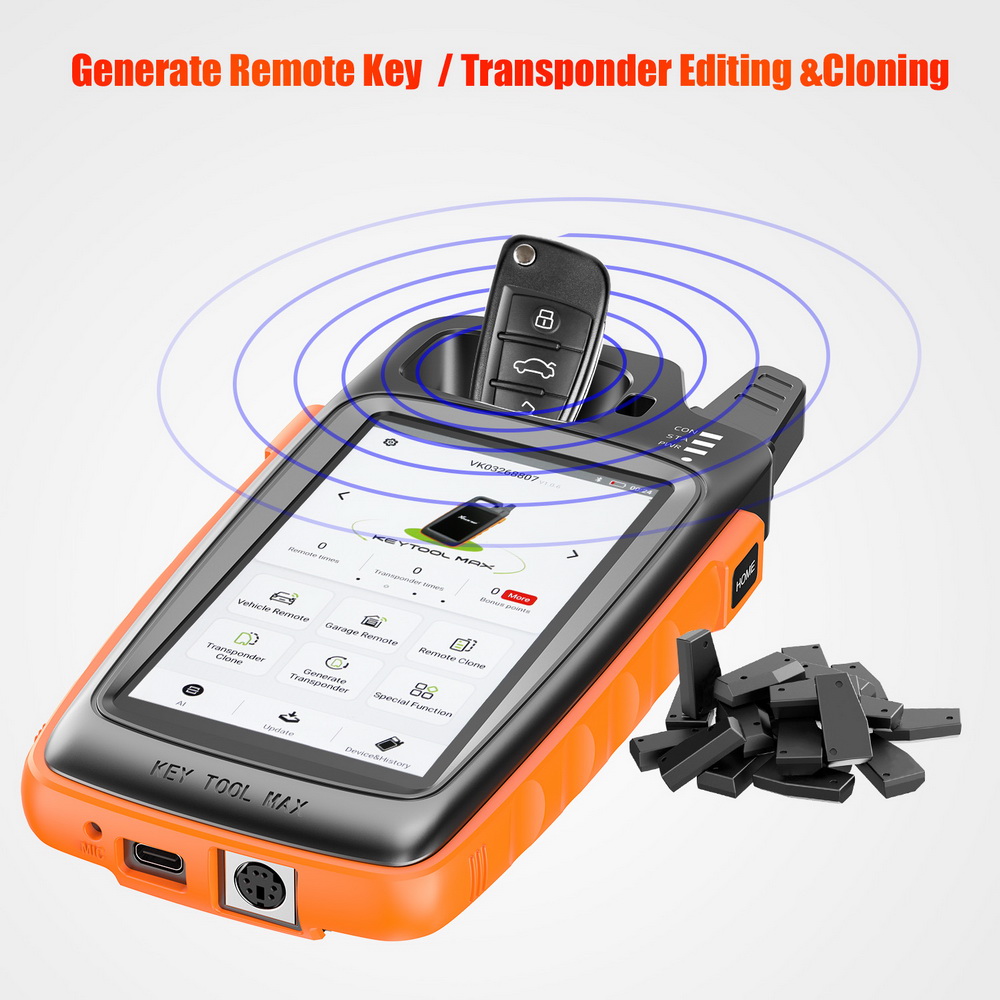

2. Support Generate transponder and remote.etc
3. Enter the car directly using KEY MAX+MINI OBD for matching. The entire process can be seamlessly connected without switching devices.
4. KEY TOOL MAX +MINI OBD TOOL can not only match the chip remote control of imported domestic cars, smart card, but also Toyota H chip will be released first on KEY TOOL MAX.

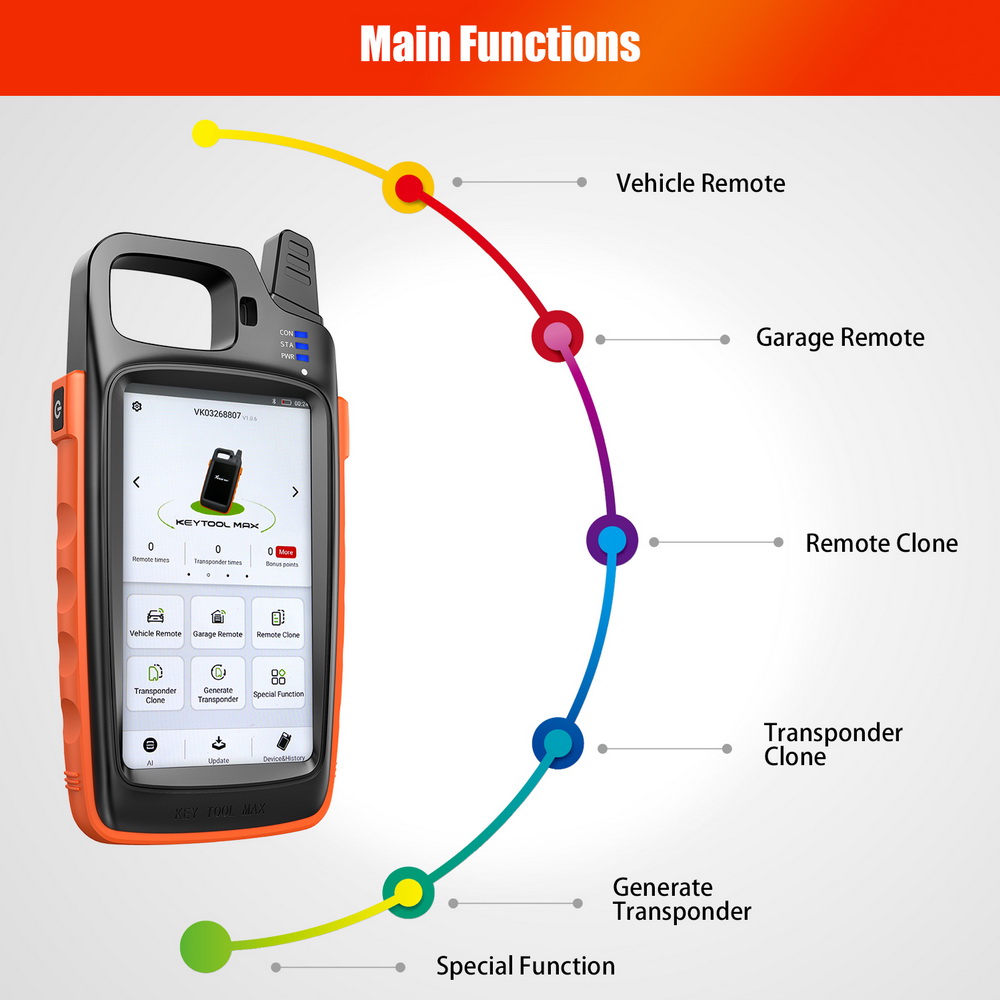

VVDI Key Tool Max Function:

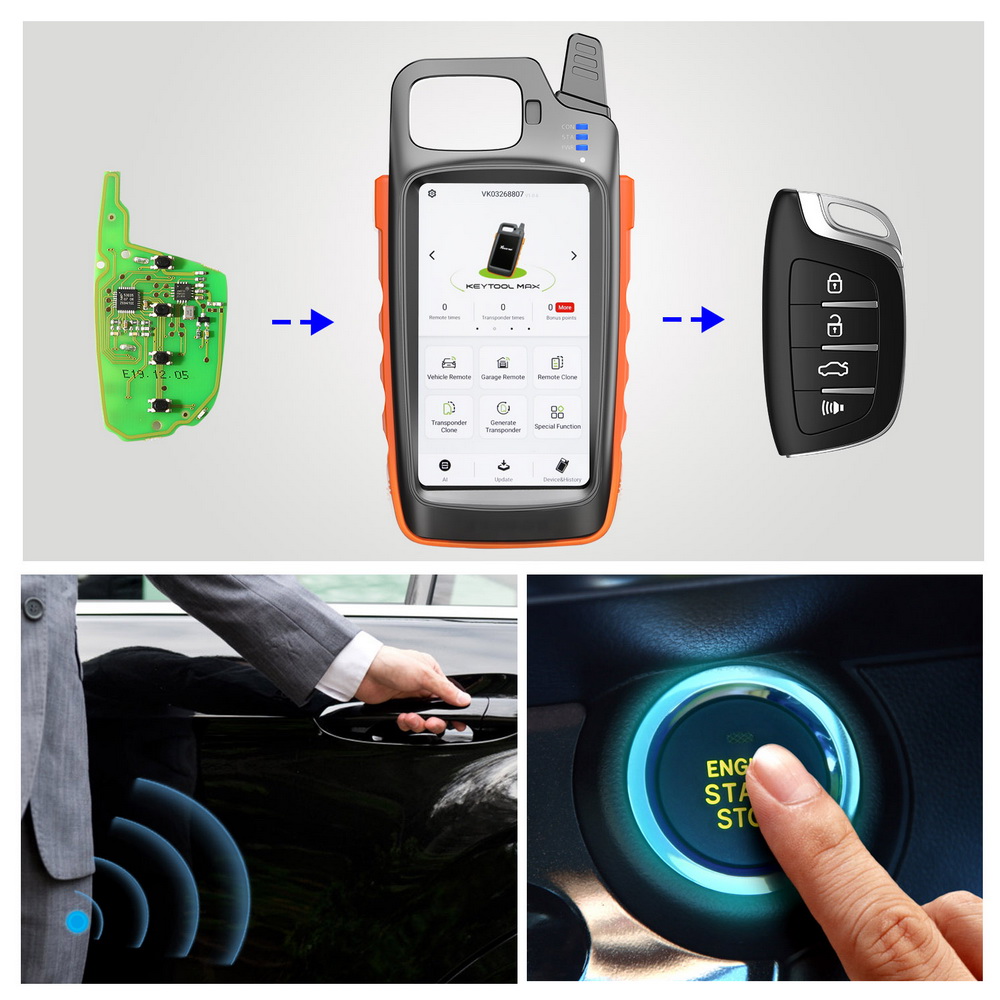

Generate remote and smart key
Program and Immo transponder
Generate speical transponder
Renew remote
Recognize and copy access card
Generate and copy garage remote
Frequency detection and copy remote
Connect to Xhorse key cutting machine
Special function (VVDI Special TP, Unlock Toyota Smart Key, Special 4D to 4C, ID63 to ID83, VVDI smart key clone, VVDI remote repair calibration etc)



How to Use VVDI Key Tool Max?

Step 1: Read the vehicle data (VIN & immobilizer) via OBD utilizing the soon-to-be released Mini OBD Tool.
Step 2: View the remote and transponder chip information for the vehicle you’re plugged into and instantly generate your chip and key.
Step 3: View the proper keyway for cutting on the Dolphin and cut your blade (once you’ve Lishi’d to determine your cuts).
Step 4: Take your completed key back to the vehicle for immobilizer programming

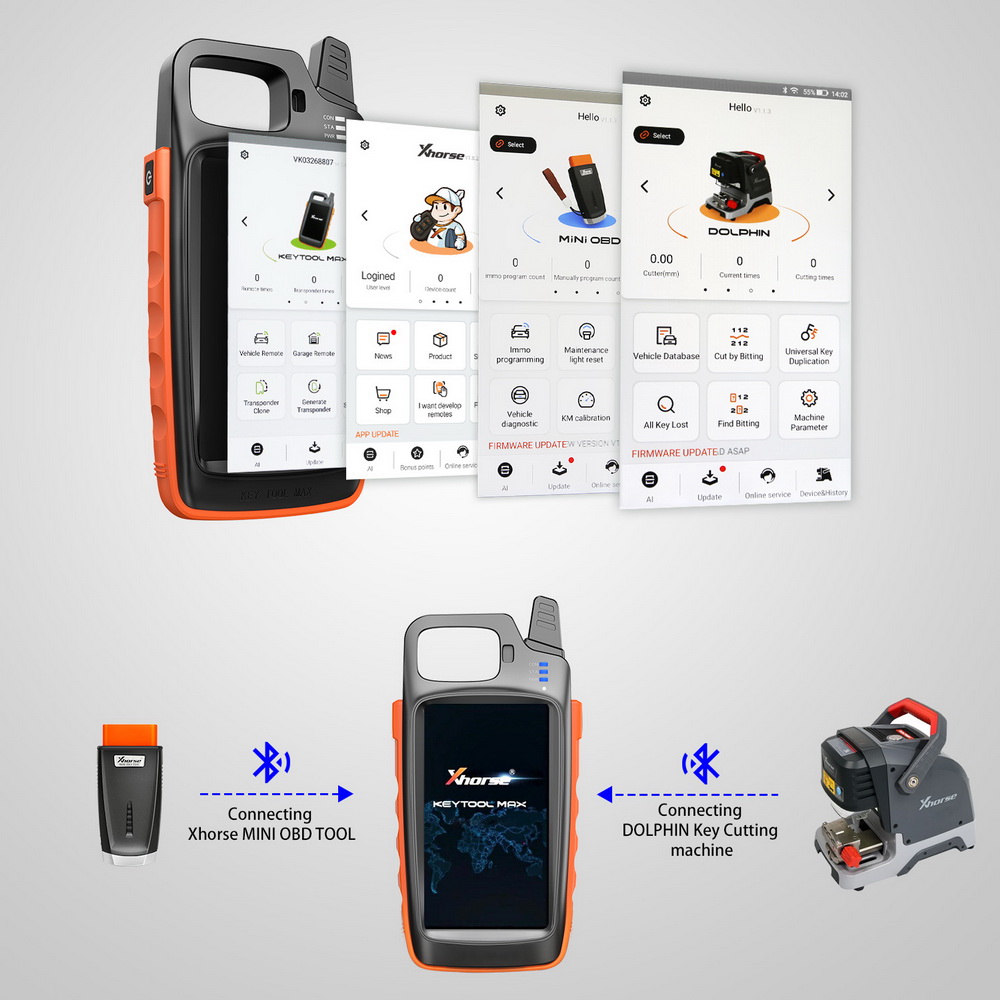

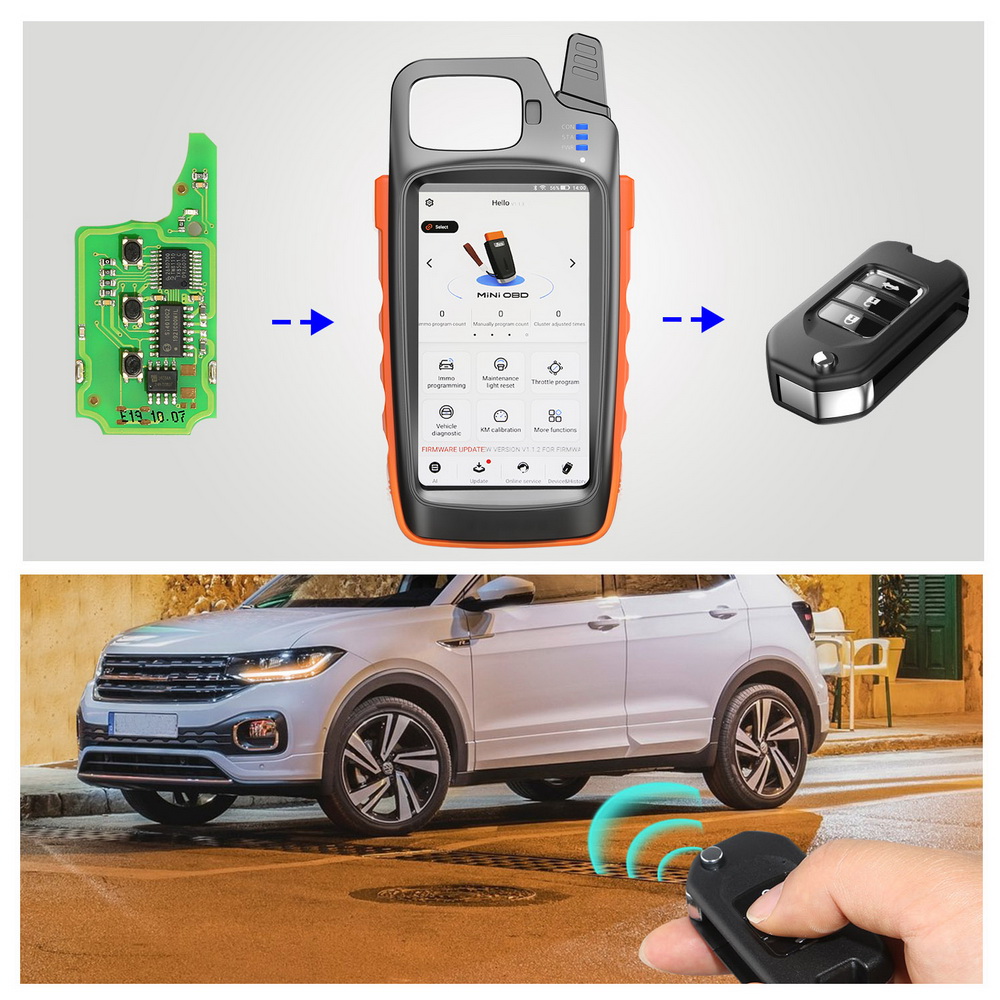

VVDI Key Tool Max Connect to MINI OBD TOOL
There are 3 ways for Key Tool Max connect to MINI OBD TOOL:
1--USBTYPE-C cable
2--WIFI
3--Bluetooth
1) Click on the [Select] on the HOME page,available device will be shown on the screen,choose device to connect according to Serial Number
2) Software will detect current device with software interface connection status,WLAN connection status and WIFI connection status.

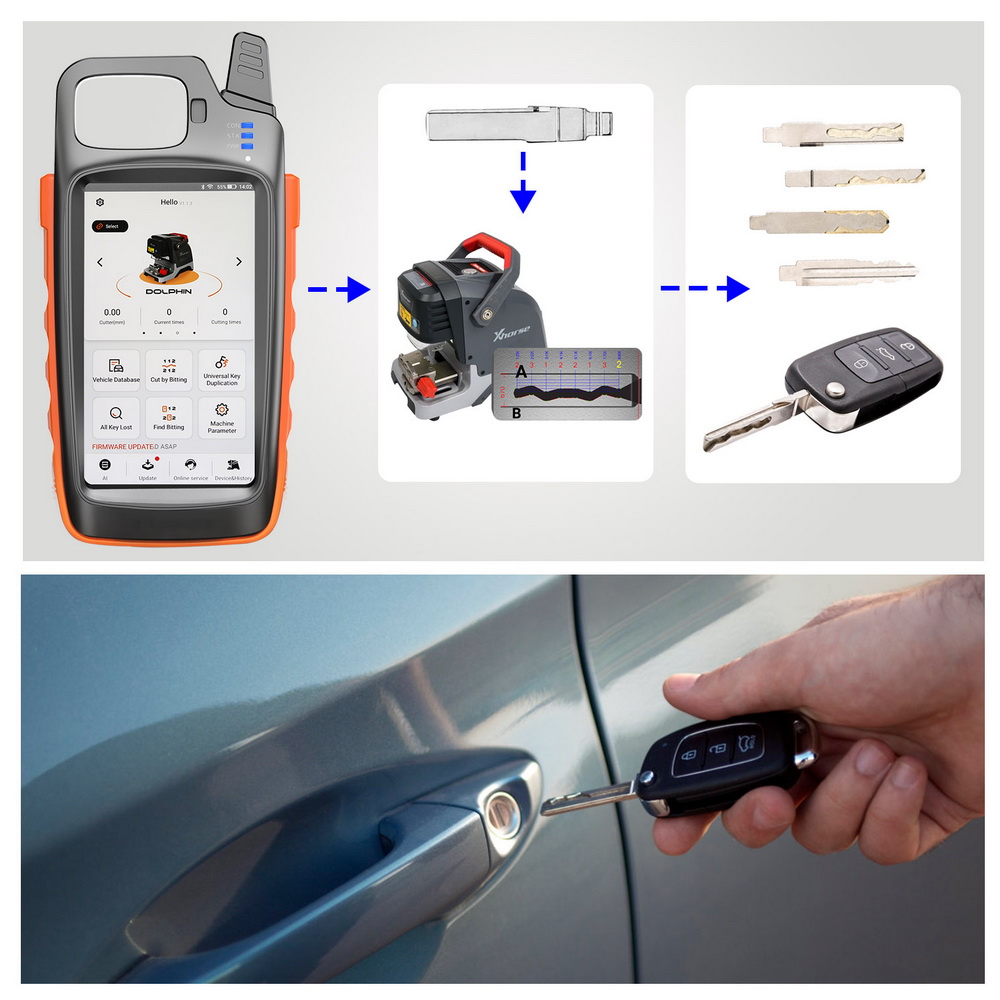

VVDI Key Tool Connect to Xhorse Key Cutting Machine:
Key Tool MAX connects to Key Cutting Machine by Bluetooth to do cutting operations.




VVDI Key Max Parameter:

Battery Capacity: 3375mAh
Battery Life: >6 hours
Standby Time: >5 days
Recharging Current: 1500mAh
Brightness: >400nlts
Screen Resolution: 1280*720P
Camera Resolution: 800W

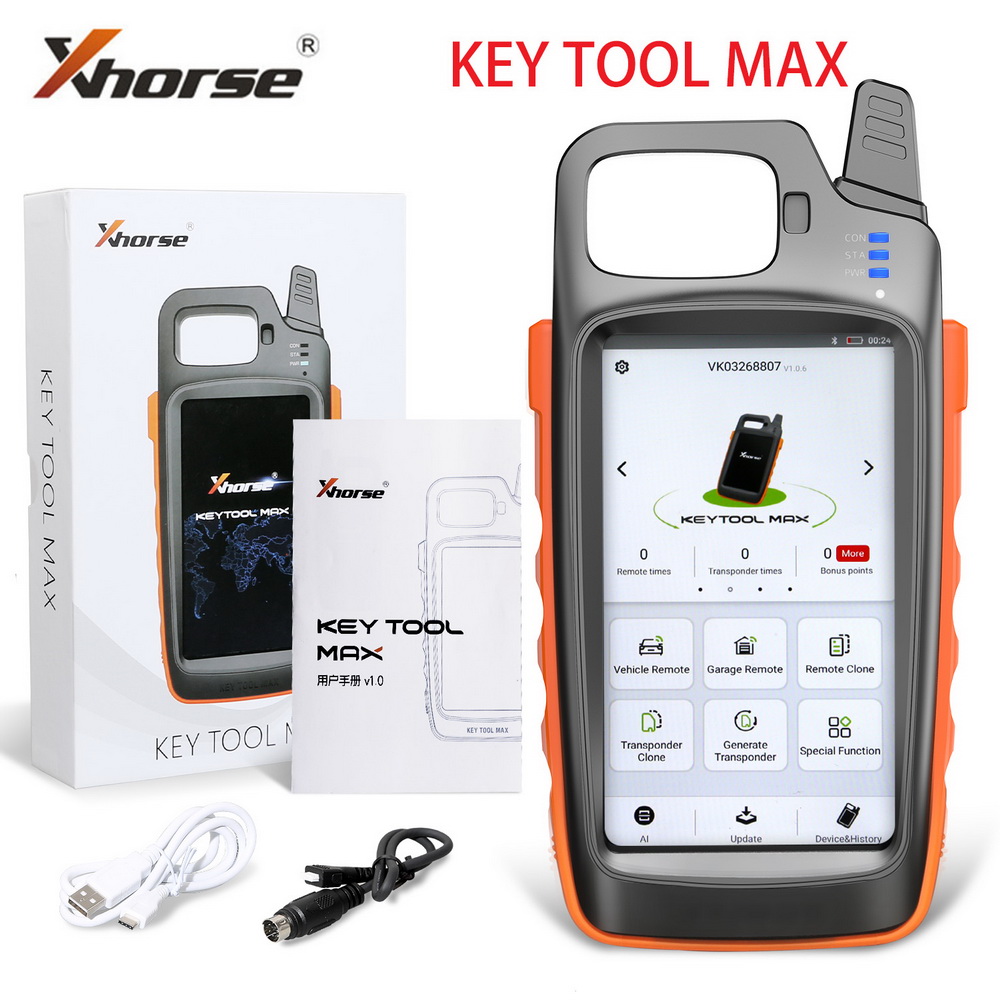

VVDI Key Tool Max Package List:

1x VVDI Key Tool Max tablet
1x USB-C cable
1x Remote generation cable
1x User Manual
