Home › Products › Automotive diagnostic tools › EUCLEIA wiScan T6 J2534 Diagnostic Tool
Large Image :EUCLEIA wiScan T6 J2534 Diagnostic Tool

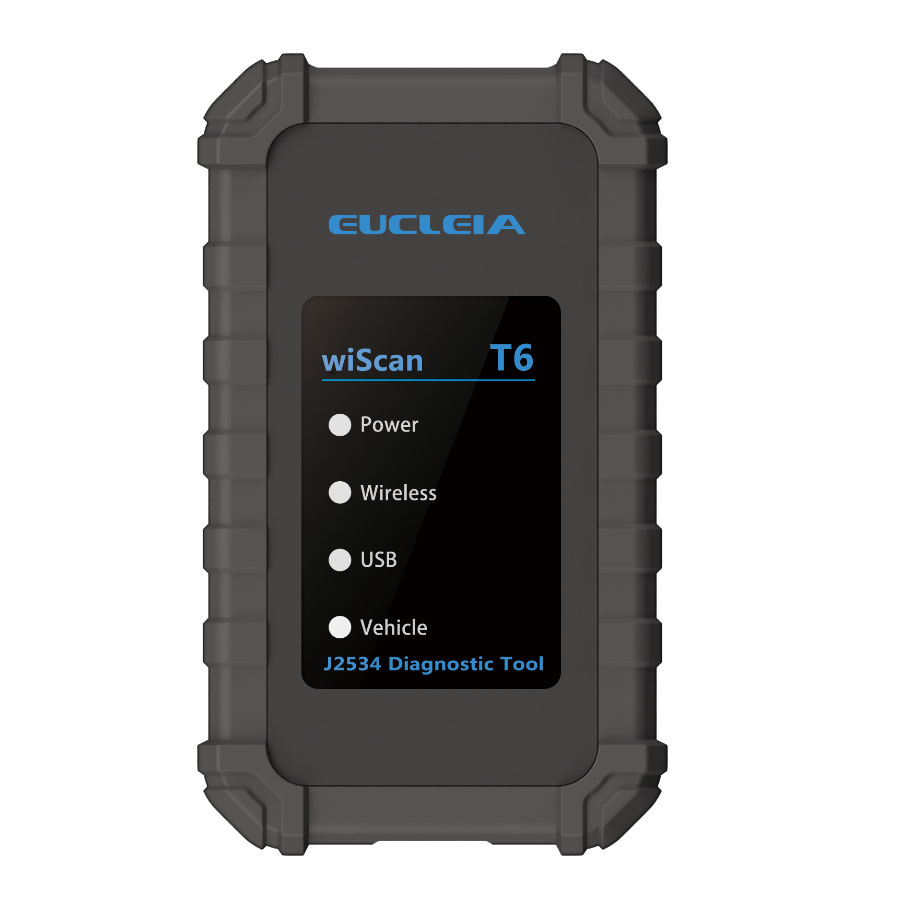

EUCLEIA wiScan T6 J2534 Diagnostic Tool
EUCLEIA wiScan T6 is a car diagnostic tool which supports J2534 standard interface and major original manufacturer diagnosis software and function. wiScan T6 is a professional, reliable, fast, flexible and with wide adaptation diagnostic device.
Descriptions of EUCLEIA wiScan T6 J2534 Diagnostic Tool
EUCLEIA wiScan T6 is a car diagnostic tool which supports J2534 standard interface and major original manufacturer diagnosis software and function. wiScan T6 is a professional,reliable, fast, flexible and with wide adaptation diagnostic device.
EUCLEIA wiScan T6 J2534 Diagnostic ToolwiScan T6 is a car diagnostic tool which supports J2534 standard interface and major original manufacturer diagnosis software and function. wiScan T6 is a professional,reliable, fast, flexible and with wide adaptation diagnostic device.
SAE J2534 is a standard devised of two independent parts: subscription software and a J2534 compliant Pass Thru vehicle interface. The subscription software comes directly from the automaker, runs on your shop PC or laptop, and can either be web-based or CD-based. The subscription fees are charged differently for each automaker.
EUCLEIA wiScan T6 Features锛?/strong>
Compatible with J2534 standard interfaces
T6 Supports numerous OEM diagnostic software such as Volkswagen, Jaguar Land Rover,
Volvo, Honda, Toyota, Ford, Mazda, GM, etc.
Equipped with high performance processor and perfectly compatible with the original
diagnosis function
Network upgrades support
Rugged design can be used in a variety of harsh environments
EUCLEIA wiScan T6 Function List:
Supports OEM diagnostic software and diagnostic function
EUCLEIA wiScan T6 Car Model and Software Support:
Note: 24V model is not supported.
EUCLEIA wiScan T6 Specifications:
EUCLEIA wiScan T6 Car Model and Software Support:
| Brand | Models | Software |
| Toyota | Toyota銆丩exus銆丼cion | Techstream |
| Honda | Honda銆丄cura | HDS |
| Volvo | Volvo | VIDA |
| VW | Volkswagen銆?Audi銆?Seat, Skoda銆丅entley銆?/div> Lamborghini | ODIS |
| GM | GM | GDS2 |
| Mazda | Mazda | Mazda IDS |
| Ford | Ford | Ford IDS |
| JLR | Jaguar銆丩and Rover | SDD |
Note: 24V model is not supported.
EUCLEIA wiScan T6 System Support:
System support: windowsXp銆?win7銆?win8銆?win10and follow-up version of the 32 bit or 64 bit operating system.
EUCLEIA wiScan T6 Specifications:
| Processor | ARM 32bit Cortex M3 |
| Flash | 512KB |
| RAM | 128KB |
| Connectivity | USB Type-B,USB 2.0 |
| Interface | DB15锛?Double row joint |

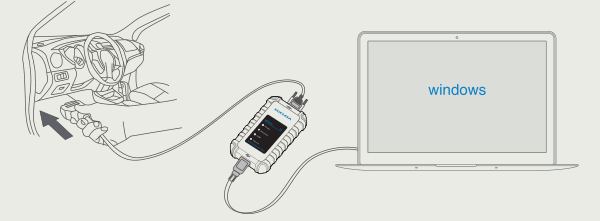

| Connection mode | The main test line connected with the car, and USB connected with PC |
| Standard | *Fully compatible with SAEJ2534-1 and SAE J2534-2 *Supports OEM Diagnostics software |
| Support protocols | ISO9141(K-Line) ISO14230-2 (K-Line) ISO15765 (CAN) SAE-J1850 PWM (Ford SCP) SAE-J1850 VPW (GM Class2) Single line CAN(GMLAN) |
| Packing size ( mm) | 292mm*205mm*80mm |
| Product dimension ( mm) | 145mm*85mm*29mm |
| Net Weight | 200g |
| Gross weight | 1100g |
EUCLEIA wiScan T6 Working Environment:
Input voltage: 7~18V DC
Working current: <300mA@DC 12V
Working temperature: -20~70 degrees Celsius
Storage humidity: <80%
Storage temperature: -40 to 80°C (-4 to 158 °F)
Housing: Rubberized external and rugged internal protection
EUCLEIA wiScan T6 Package Includes:
EUCLEIA wiScan T6 Package Includes:
1pc x wiScan T6
1pc x USB cable
1pc x CD driver
1pc x Quick start guide
1pc x Main line
1pc x Tool box
1pc x Warranty card
