Wireless Inspection Camera with 3.5 inch Monitor Digital Inspection Videoscope

Features:

1. Night Vision Range:1.5m
2. Waterproof Level: IP67 with Underwater
3. Lightweight, handhold design for easily find, diagnose and solve problems
4. 3 useful accessories includes: hook, mirror and magnet

Specification:

1.Camera Specifications

Image Sensor:CMOS
Total Pixels: 704×576 (PAL);712×486(NTSC)
Horizontal View Angle:50 degree
Transmission Frequency:2468MHz
Minimum Illumination:0 Lux
Modulation Type:FM
Bandwidth:25MHz
Power Supply:4xAA
Dimensions (WxDxH):186x145x41(mm) (Exclude Flexible Tube)

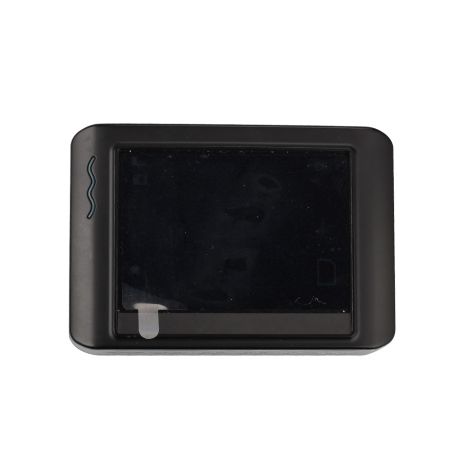

2.Monitor Parameters

LCD Screen Type:3.5″TFT-LCD
Effective Pixels:480 x 240
Video System:PAL/NTSC
Transmission Frequency:2468MHz
Consumption Current (Max):450mA
Video Output Level: 0.9-1.3VP-P@75ohm
Operating Temperature: -10°Cto+50°C/+14°F to +122°F
Operating Humidity (Max.):15 to 85%RH
