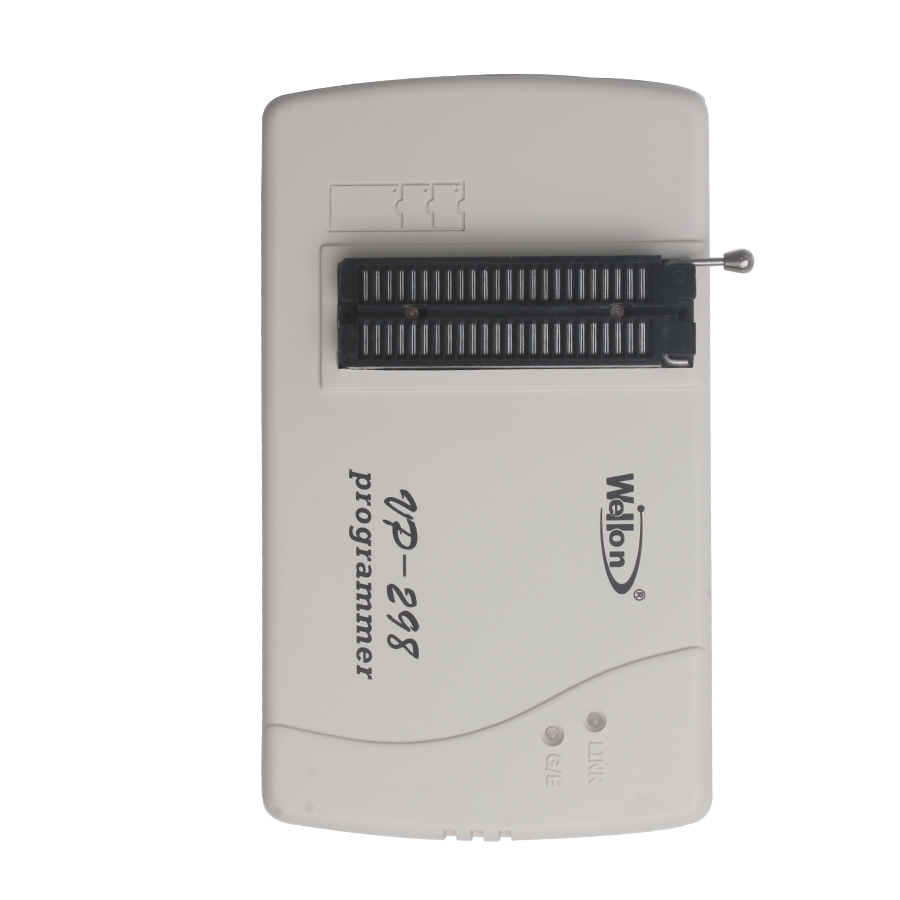

Wellon Programmer VP-298 VP298

VP298 Programmer Support for dozens of manufacturers of PLD, E (E) PROM, FLASH, MCU, etc. thousand kinds of programmable devices. Can test TTL & CMOS standard logic devices and memory. This programmer for electronic product development, mass burning chips, mobile phones, computers, car maintenance.

VP298 Programmer Specification:

Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/0.6A
Standby current: <200 mA; Operating Current :250-350mA
48 Pin ZIF socket pin-drivers.
Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16,Motorola S record
Manages 16 and 32-bit word split (Set Programming)

VP298 Programmer Features:

Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Auto-run mode starts programming automatically upon detection of chip insertion
Supports WindowsXP/Vista/ Windows 7 (32bit and 64bit)
Supports eight languages,such as Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portuguese and Dutch..

Package List:

1 VP-298 programer
1 usb cable
1 power adapt
1 user manual
1 cd disk
