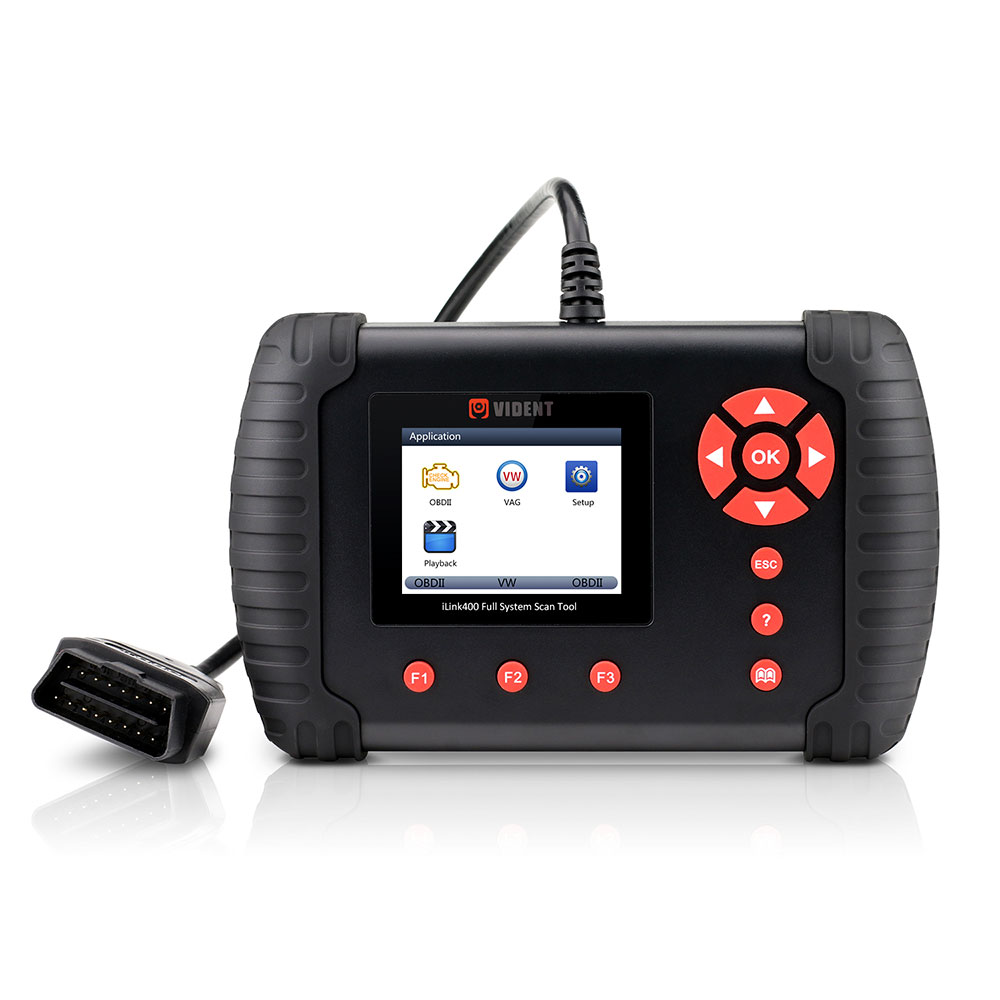

Original VIDENT iLink400 Full System Scan Tool Single Make Support ABS/SRS/EPB//DPF Regeneration/Oil Reset

Product Descriptions:

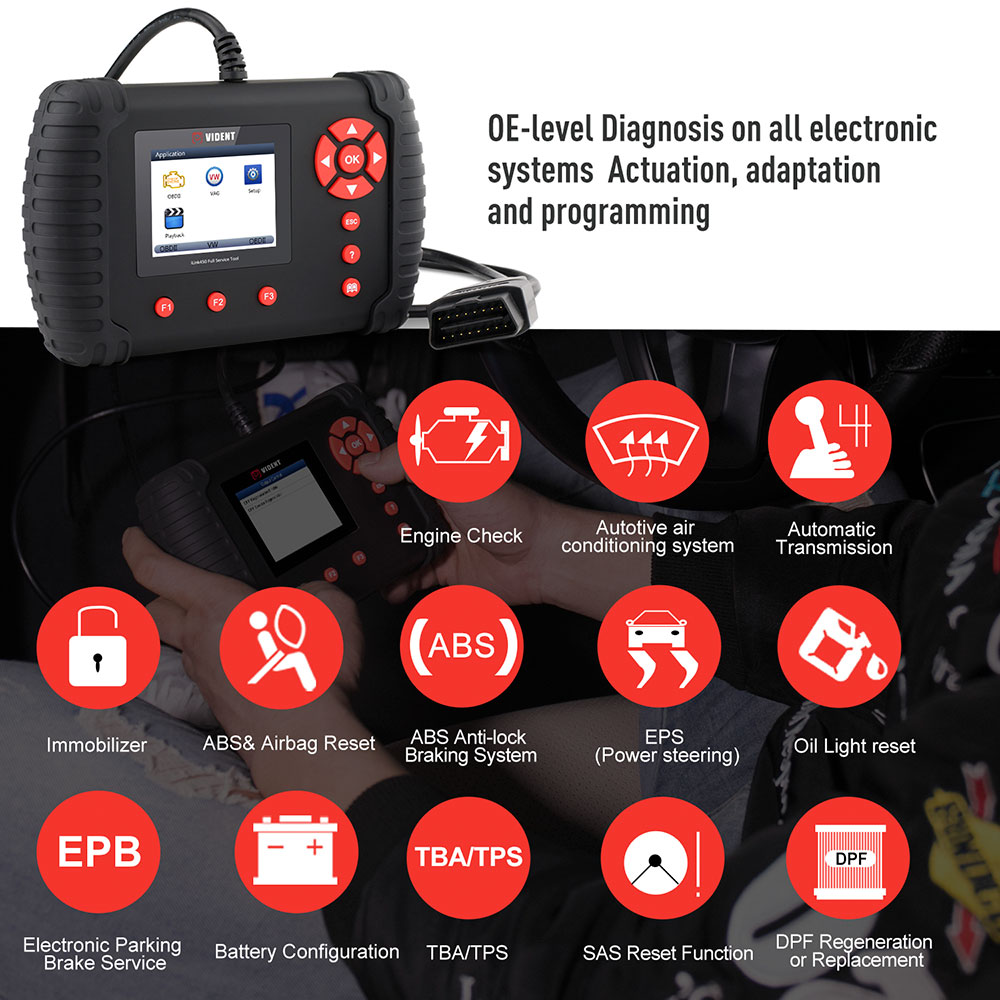

Viden iLink400 Full System Single Make Scan tool is the most cost-effective professional multi-system scan tool that delivers OE-level diagnosis for all electronic systems of different car brands. It does not only include basic functions such as read/erase codes and live data, but also it's capable of advanced functions such as actuation, adaptation and programming. In addition, it lets you to access the most commonly required service features such as Oil service Light Reset, Throttle Body Alignment, Electronic Parking Brake Service, Battery configuration, Steering Angel Sensor Calibration, CBS correct and much more.

Vident iLink400 Features:

1. Compatible with both OBDI and OBDII vehicles
2. Works on the latest 2016/2017 vehicle mdoels
3. Multi-system Diagnosis
4. Quick Test Function to test most common vehicle system
5. Turn off dashboard warning lights
6. Perform bi-directional actuation tests
7. Retrieve ECU information
8. Key coding for serveral veicle
9. Request and record live sensor data and display live data graphs...
10. Support advanced functions such as adaptations and control module coding
11. Support commonly service features:brake deactivation,service reset,SAS,DPF,ABS,BCM/SIR setup,TPS/TBA,etc.
12.Upgradable to cover more car makes
13. Multi-lingual menus and code definitions for an international market place
14. TF memory card for data backup and software update
15. As easy as 1-2-3 with large TFT color screen and menu-driven operations
16. Ergonomic design and ruggedly built for both shop and road tests
17. 3 years free software update
18. Multilingual: English, French, German, Polish, Russian, Spanish Portuguese, Dutch, Swedish and more.

VIDENT iLink400 Latest Update Information:

ABS&SRS reset
Oil service light reset
Brake pad replacement
Steering angle sensor reset
Battery reset
Electronice throttle sensor reset
TPMS sensor reset
DPF regeneration
Immobilizer programming
Injector coding
Gear learning


Vident iLink400 Function List:

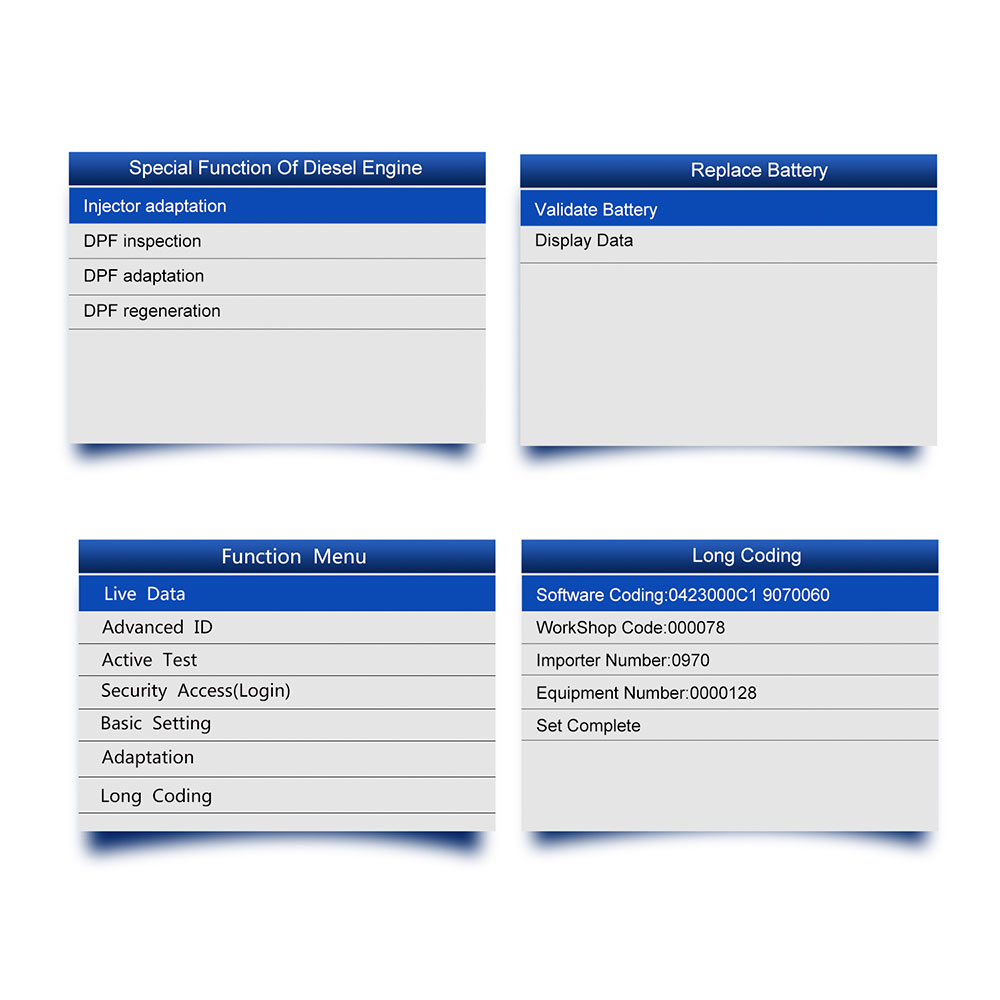

Diagnostic Functions
Read Codes
Freeze Frame Data
Erase Codes
ECU information
Live Data
Custom Data
Active test
Advance ID
Basic setting
Security access (Login)
Adaptation
Readiness test
ECU Information
Complete Data List
Coding
I/M Readiness
O2 Sensor Test
On-board Monitor Test
Component Test
Vehicle Information
Modules Present
Unit of measure

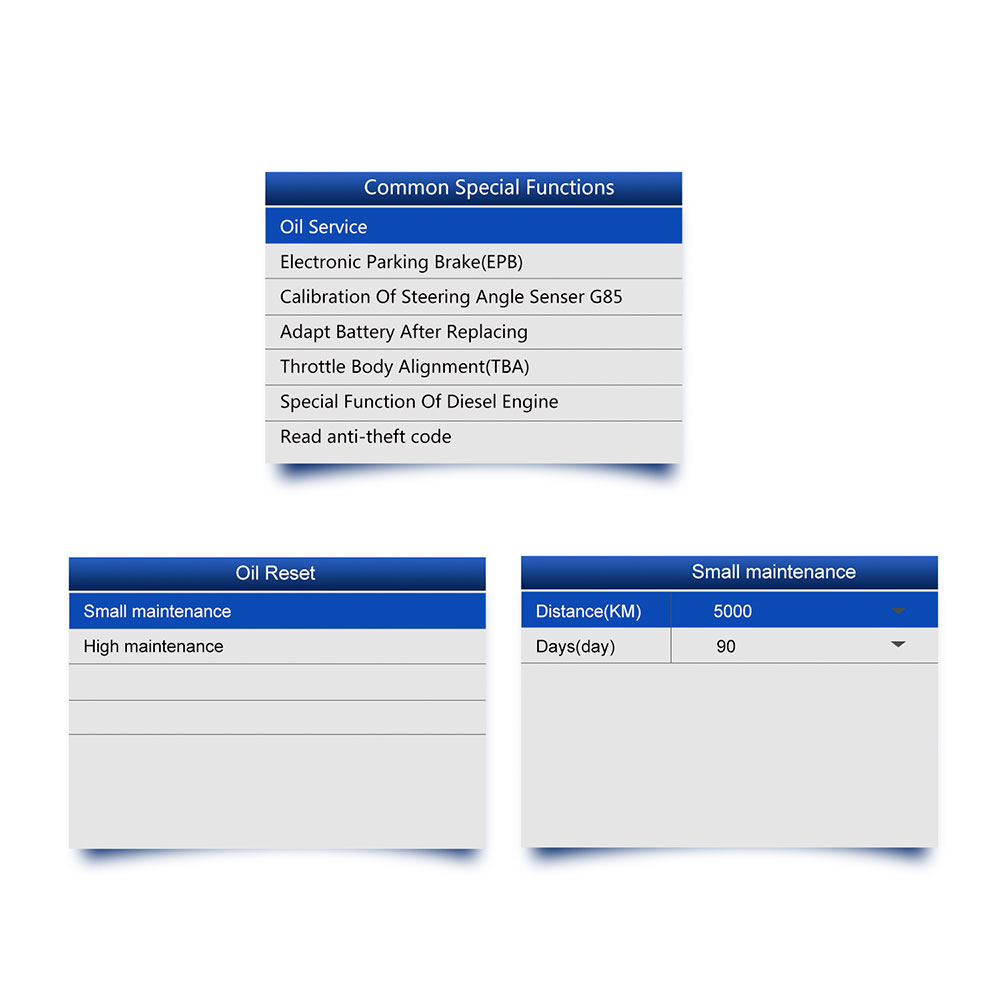

Special Functions:
Oil Service
Electronic Parking Brake (EPB)
Calibration of Steering Angle Sensor G85
Adapt Battery After Replacing
Throttle Body Alignment (TBA)
Special function of Diesel Engine
Read Anti-theft Code
Reset Airbag

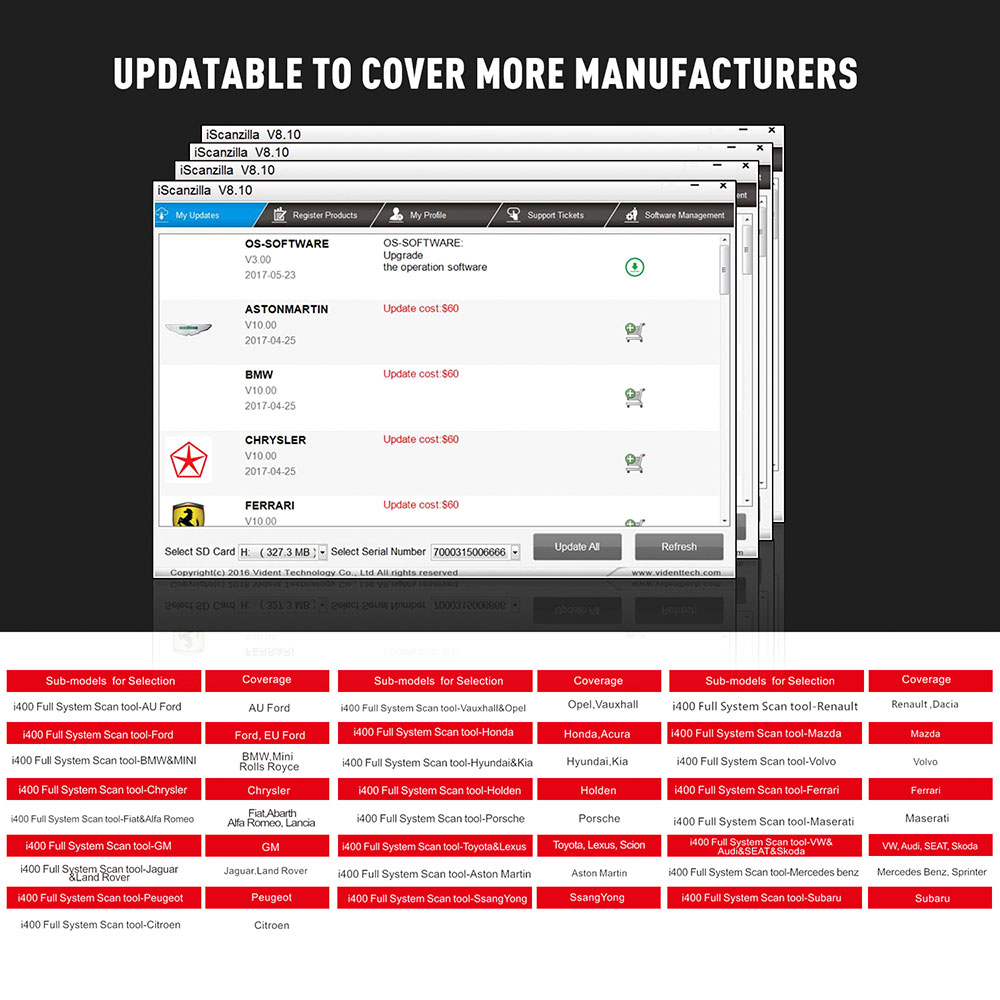

Vident iLink400 Vehicle List:

iLink400 comes with no software installed. You can select any of the car make software below to update on your scan tool. The first software is free of charge with your purchase. Any additional software costs $60 each. One hardware can have 5 car makes at most.

SC367-2 VIDENT iLink 400 - EU Ford
SC367-3 VIDENT iLink 400 - BMW, Mini and Rolls Royce
SC367-4 VIDENT iLink 400 - Citroen
SC367-5 VIDENT iLink 400 - Chrysler
SC367-6 VIDENT iLink 400 - Fiat, Alfa Fiat, Abarth, Alfa Romeo, Lancia
SC367-7 VIDENT iLink 400 - Ferrari
SC367-8 VIDENT iLink 400 - Land Rover, Jaguar
SC367-9 VIDENT iLink 400 - GM
SC367-10 VIDENT iLink 400 - Opel, Vauxhall
SC367-11 VIDENT iLink 400 - Honda
SC367-12 VIDENT iLink 400 - Hyundai, Kia
SC367-14 VIDENT iLink 400 - Porsche
SC367-15 VIDENT iLink 400 - Toyota Lexus Toyota, Lexus and Scion
SC367-16 VIDENT iLink 400 - Mercedes Benz, Sprinter
SC367-17 VIDENT iLink 400 - Maserati
SC367-18 VIDENT iLink 400 - Mazda
SC367-19 VIDENT iLink 400 -VAG VW, Audi, Skoda, Seat, Bentley, Bugatti, Lamborghini, VW Commercial
SC367-20 VIDENT iLink 400 - Volvo
SC367-21 VIDENT iLink 400 - Renault, Dacia
SC367-23 VIDENT iLink 400 - Subaru
SC367-24 VIDENT iLink 400 -SsangYong
SC367-25 VIDENT iLink 400 -Peugeot


Please refer to VIDENT iLink400 Car List here.

Vident iLink400 Specifications:

Display: 2.8” Backlit, 320X240 TFT color screen
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
Tool Dimensions: 194*117*47mm (L*W*H)
Color Box: 220*165*85mm (L*W*H)

Vident iLink400 FAQs:

Q1:Is iLink400 software open for all car manufactures or need to buy software for each car manufactures ?
A1:It have a free model,and you need to pay for extra software

Q2:Will this support abs bleeding on a 1999 ford e350 super duty?
A2:Yes, it is support abs bleeding on a 1999 ford e350 super duty.

Q3:Can iLink400 program key for 98 taurus?
A3:Sorry, Ilink400 no key program key function.

Q4:Will this initiate bleeding for gm abs
A4:Yes, it is support.

Q5: Does this perform tcm quick learn for chrysler 45rfe/545rfe transmission?
A5:It is support.

Q6: How do i download the software on macbook / os?
A6:You can download from Official website.

Q7:Will it go into the RVC soft top module on a w208?
A7:sorry, it can't support.


Vident iLink400 Reviews:

Review 1:
Very useful and capable device. You can run programs to test certain things such as injectors, abs, tps ect. You can pay for other manufacturers programs too. Each additional one is 60 dollars but it comes with 1 for free.

Review 2:
Awesome tool works on my 2010 Dodge Ram & my wifes 2015 Jeep Wrangler. both were throwing codes which my OBD2 was no help for. This tool showed me the live data as well as the saved data from when the first error was seen. Has live testing where you can from inside the vehicle check to make sure everything works.. Highly recommend!! save yourself time and money using this tool then going to a dealership.

Review 3:
My only concern is case being tight when trying ot put cable inside. Unit works well and saves data from vehicle. Powers on with OBD or USB port connected.

Vident iLink400 Package Includes:
iLink400 Scan Main Unit
OBD2 diagnostic cable
User's Guide
Memory Card
USB Cable
Leather Carrying Pouch
