Home › Products › Automotive diagnostic tools › New ODIS V4.2.3 VAS 5054 Plus Bluetooth (AMB 2300) Version with OKI Chip Support UDS Protocol
Large Image :New ODIS V4.2.3 VAS 5054 Plus Bluetooth (AMB 2300) Version with OKI Chip Support UDS Protocol
New ODIS V4.2.3 VAS 5054 Plus Bluetooth (AMB 2300) Version with OKI Chip Support UDS Protocol
ODIS V4.2.3 Plus Bluetooth (AMB 2300) Version with OKI Chip is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
Descriptions of New ODIS V4.2.3 VAS 5054 Plus Bluetooth (AMB 2300) Version with OKI Chip Support UDS Protocol
ODIS V 4.2.3 VAS 5054 Plus Bluetooth (AMB 2300) Version with OKI Chip
Original Bluetooth chip AMB 2300
With OKI Chip, support UDS protocol
Original Bluetooth chip AMB 2300
With OKI Chip, support UDS protocol
ODIS V4.2.3 VAS 5054 Plus Bluetooth(AMB 2300) Version with OKI Chip Support UDS Protocol
Top 5 Reasons to Get New VAS 5054A Plus Feature:
1. With original Bluetooth CHIP AMB2300, more stable.
2. With OKI Chip, support UDS protocol.
3. Multi-Languages: English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
4. Supported multi-brand Car Models: For VW, For AUDI,For SKODA, For SEAT For Bentley and For Lamborghini
5. Support both USB and Bluetooth connection (Bluetooth Connection Password: 082145725)
The VAS 5054 PLUS is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054 PLUS
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
ODIS Computer Windows System Requirements:
Windows System Language: American English
Win 7 professional version
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing
VAS 5054A Plus Description
The vehicle protocols are handled directly in the VAS 5054 PLUS
This ensures fast response times and a reliable real-time behavior independently of the PC operating system.
Every time a connection is established, the VAS 5054 PLUS software is identified with the version installed on the application PC.
The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054 PLUS via Bluetooth or USB.
Access Via Bluetooth: After a connection to the VAS 5054 PLUS has been set up,
the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile).
The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application
Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable.
Windows detects the VAS 5054 PLUS through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application.
Setup of the VAS 5054 PLUS is then complete and the device is ready for use by the diagnostic application.
VAS 5054A Plus Supported Protocols:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)
UDS Protocol
PWM Protocol
Packing list :
1pc x VAS 5054 Plus Main Unit
1pc x USB Cable (3 Meter)
1pc x ODIS V4.2.3 Software
FAQ:

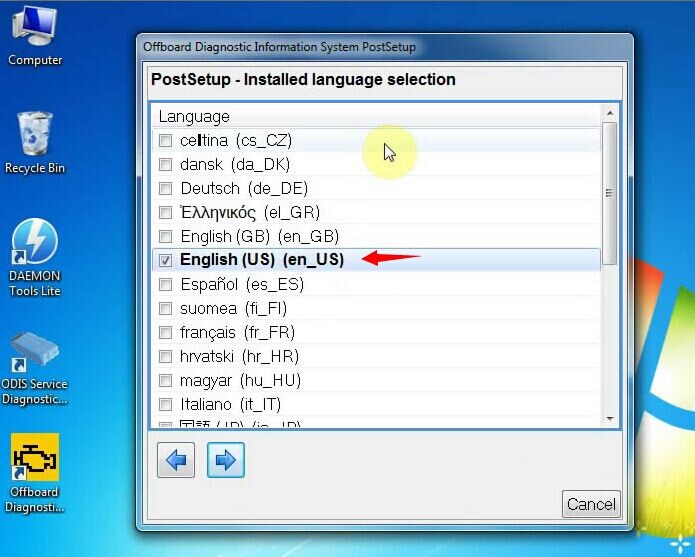

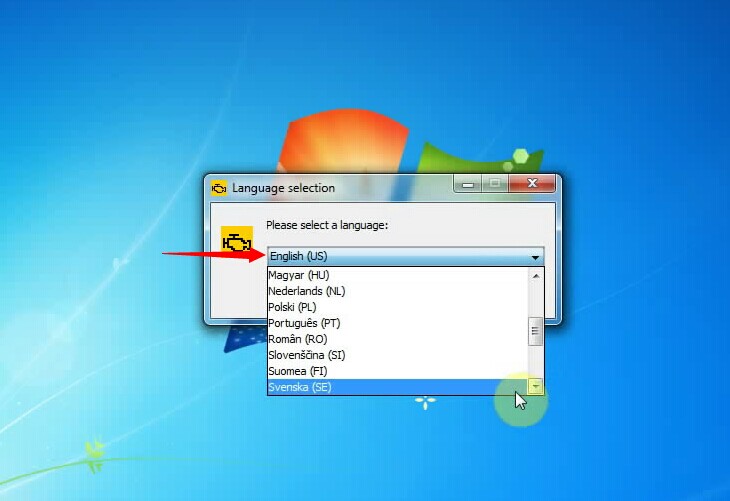

Q:How to select language when use ODIS V4.2.3?
A:There are two ways to select language.One is automatically identified by system, if your system language is English,then your ODIS software language is also English
The other way is you select language when you install the software,but it must be the same in these two places.

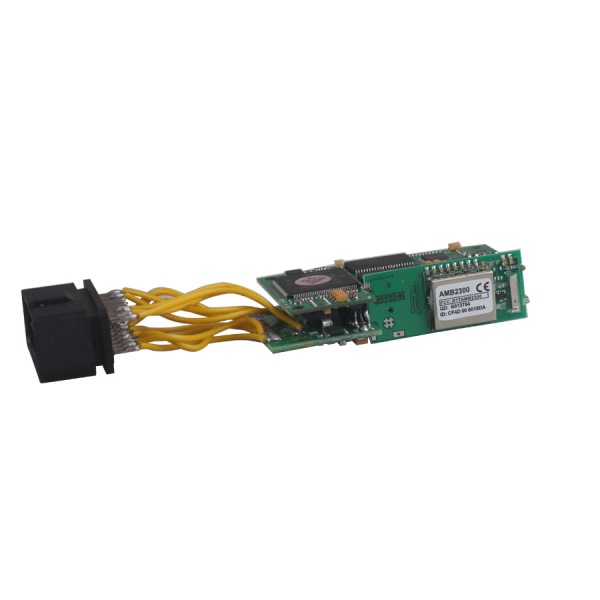

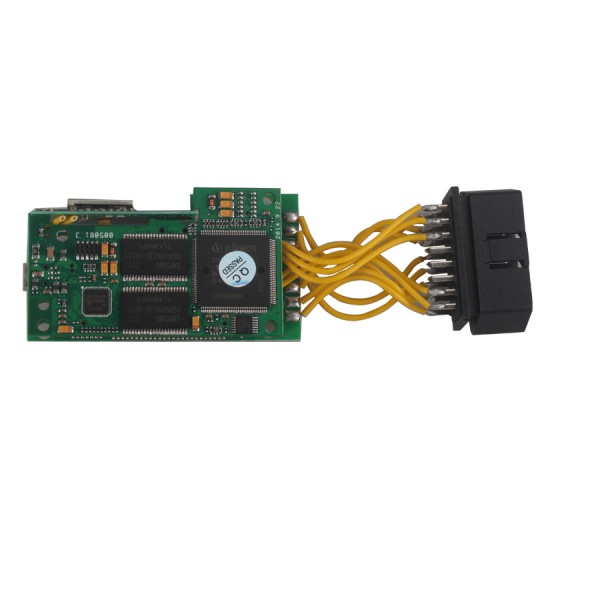

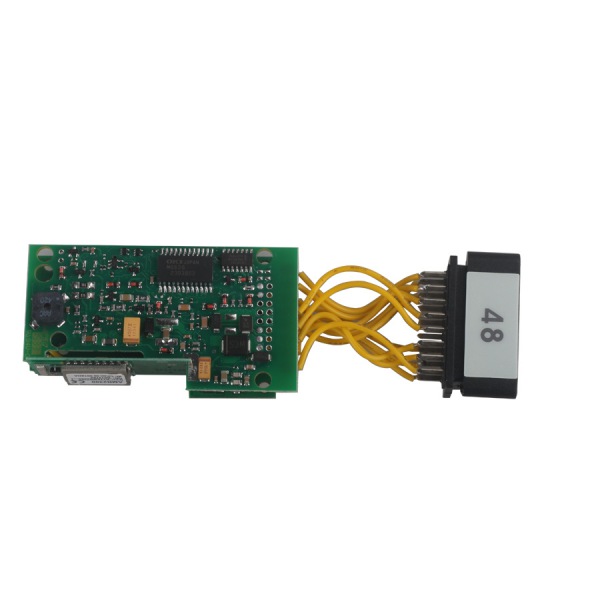

VAS 5054 Plus Bluetooth (AMB 2300) Version with OKI Chip PCB Board Display:
Tags: vas5054a plus , odis 4.2.3 vas5054a plus , vas5054a plus with oki chip , odis V4.2.3 vas5054a plus ,
