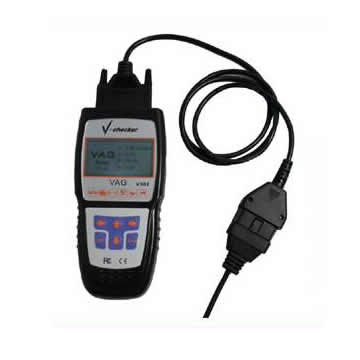

V-CHECKER V302 VAG Professional CANBUS Code Reader English Version Description

The V-checker V302 code reader is specially designed to provide diagnosis service for all electronic system of VAG family cars including Audi/Volkswagen/Skoda/Seat. The device is capable of troubleshooting nearly 100 electronic systems including Engine, transmission, airbags and ABS. The tool is suitable for DIYers and professionals.

Car model: Audi, Volkswagen, Skoda and Seat.

Applicable for nearly 100 systems:
engine system, transmission system, ABS, Brake systems, air bag systems, air conditioning systems, burglar alarms,ultrasonic monitoring system, clutch control, suspension systems, directional control, steering wheel assistance, central locking control, shock absorption system, the dashboard system, auxiliary heating, distance control, Gateway data bus , electric window system, light control left and right light control, navigation system, internal testing, the central module, automatic light switches, electric drive, battery control, emergency call module, parking assist, electronic control unit, four-wheel drive, anti-skid control , the driver's seat adjustment, diesel pump system, headlight control, radio, tire pressure control, seat / Mirrors, battery charging, electric wipers, electric drivers door , electronic co-driver door, left rear door electronic control, electronically controlled right-rear, brake booster, brake assist booster, rear spoiler, access and start control, the front passenger seat adjuster, display control unit , the rear display control unit, TV tuner, voice control, car phone, electric sunroof, rear driver side seat adjustment.

Support protocols:
ISO15765-4 (CAN BUS), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, and J1850 PWM protocols.

Language:
English

V-checker V302 code reader Feature:
Retrieves ECU information, reads DTCs, displays live data stream, clears DTCs, basic system adjustment, channel adjustment, reads independent channel data, test actuator, programs control unit, system log and sends chassis number.

Special function: Reset oil lamp, IN1 and IN2.

Help information:
Clear the value of self-learning, adaptation of ECU and throttle, adaptation of waste gas recirculation’s value, basic settings of automatic transmission , reset maintenance lamp, remove or program remote car key, dashboard, reset steering angle sensor, fuel level sensor adaptation, air bag lift / activation, dashboard language, basic settings for air conditioner / heating system, program new airbag control module.

V-checker V302 code reader Specification:
Working voltage：8-20V
Working current：70mA
Working power：0.9W

Package including:
1pc x V-CHECKER V302 VAG PRO CANBUS Code Reader
1pc x OBD2 Cable
1pc x User manual
1pc x Carry bag
