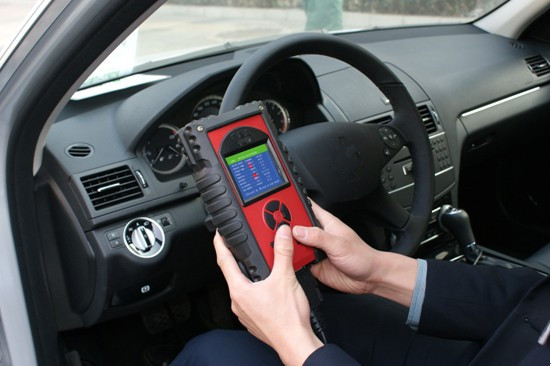

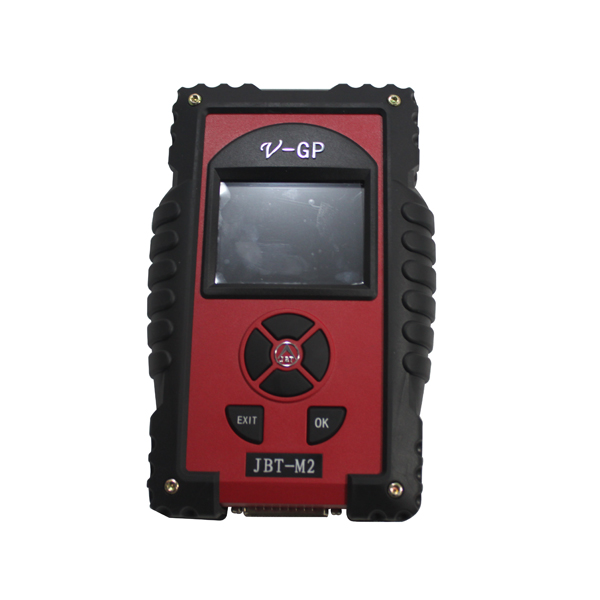

Universal Car diagnostic Doctor JBT-VGP

Top 5 Reasons To Get JBT-VGP:

1. Language: English
2. Support car year from 1996 to 2013
3. No need to connect to the PC
4. Universal Car diagnostic Doctor JBT-VGP is color screen, self-learning function, warning function, and conveniently online upgrading function.
5. Support all Asian, European Oceania and American cars

Description:



It is the OE Supplier for VW, Audi, Nissan, Mitsubishi, Southeast …….;

Specification:

Type: Universal Auto Diagnostic tool
Voltage: 12V
Rate: 9-15w
Certificates: CE \ISO9001 and ISO 14001
Brand: JBT
Working Condition:
Temperature:-40°C~+50°C
Relative Humidity: <90%
Screen: Color display
Platform: Self-researching BT-DDS
Special functions: Self-Learning and Judging/Warning/Data Store and printing
Update: Online update
Warranty: Main unit for 3 years and Cables for 1 year
Outer packing: Carton
Inner: Plastic Suitcase,

Testing Benz:




It is reading the DataStream of Benz, and it has 4 creative inventions:

I.SELF-LEARNING & JUDGEMENT:

Self-learning & Judgment function can help learn the standard data streams of vehicles automatically, whose data streams can be used in future as standard scopes. With these scopes, JBT-CS Series can help check whether the data streams of any same kind of cars are normal or not.
1. Any JBT-CS Series auto scanner can learn the data streams of cars as soon as connected to DLC of healthy cars. Explanation: When we have the cars that working well, we can record and store the data streams of the cars and the data streams can help set the maximum and minimum scope automatically due to the collected data from the healthy cars.
2. Comparing data streams and analyzing
Explanation: When we repair the same kind of other cars, we could use the data stream collected from healthy cars to do the comparison with the data streams being tested. If the data streams being tested are beyond the scope, it will display with special colors in order to inform maintenance people that the data streams are abnormal, technicians can judge what is wrong with the cars by the highlighted items.
3. Rename the data streams which have been learned.
Explanation: JBT-CS auto scanner supplies positions for users to store the data stream of different cars.

II. Over-Scope Alarm Display

JBT-CS auto scanner supplies the reference scope that common use when cars are idle. When the cars move, if the data stream is beyond the reference scope, it will be displayed with special color in order to help maintenance people judge cars problem.
1. Reference scope analysis.
Explanation: JBT-CS has reference scope that common use when cars are idle. It is convenient for users to compare the data stream being tested in order to judge cars trouble.
2. Warning color display.
Explanation: The reference scope supplied by JBT is the normal scope when the cars are idle. When the data stream being tested is beyond the scope, it will be displayed with special color, meaning the data stream is not normal, maintenance people should check the cars troubles according to the data streams which is displayed with color.

III. Data stream Memory and Printing

Characteristics:

Storing data stream as customers' like. Data stream could be printed out by JBT printer.

IV. Personality Operation Setting

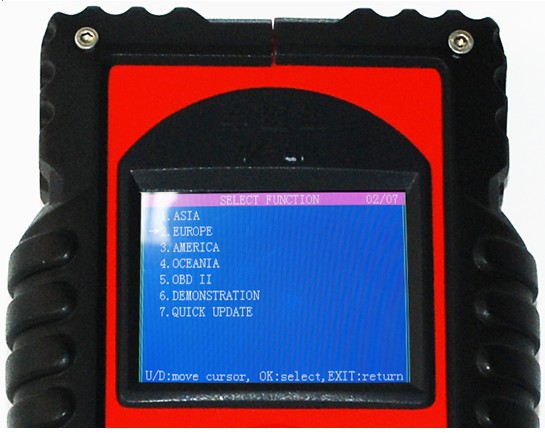

JBT-CS auto scanner is color screen, and the color could be adjusted.
TFTE (Thin Film Transistor Engine)
TFTE improves the light and speed of display, make the color more light.
ACE (Acceleration Engine)
ACE makes auto scanner operation efficiently, makes data stream accumulate efficiently, and make auto trouble analysis efficiently.
CSE (Communication Stability Engine)
CSE makes systems afford pressure of high electric current, and could judge electric current

FAQ

Q: Can this product's software be upgraded and how?
A: This product update online.

Q: If it can change the odometer reading or rewrite the mileage on the odometer for any car?
A:No, it is just a tool for diagnosis, can't do mileage programming.

Q: If it can program and clone keys and transponders?
A: Sorry, It can not program and clone keys and transponders.
