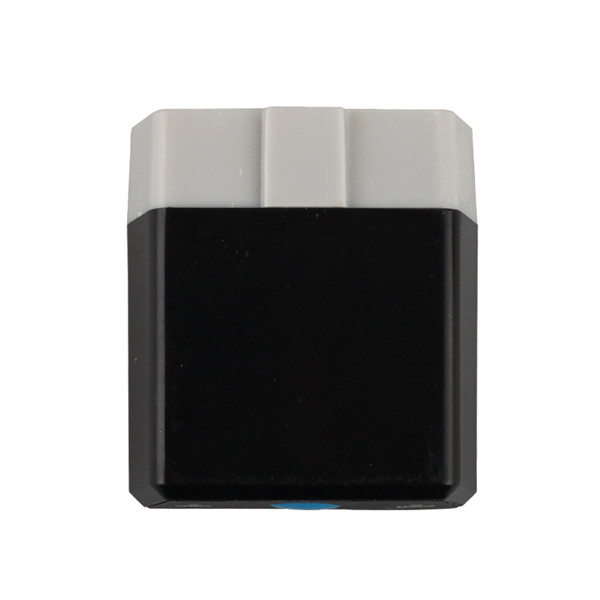

Super Mini ELM327 WiFi with Switch Work with iPhone OBD-II OBD Can Code Reader Tool

Firmware version: V1.5

ISO 9141

ISO 11898(aka. CAN)

ISO 14230(aka. KWP2000)

ISO 15765(aka. CAN)

SAE J1939

WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WIFI connection in adHoc mode.

Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.

Vehicle Speed

RPM

Fuel Consumption*

Engine Coolant Temp

Fuel Pressure

Calculated Engine Load

Throttle Position

Intake Manifold Pressure

Air Intake Temp

Timing Advance

Mass Air Flow

Fuel Level

Barometric Pressure

EVAP System Vapor Pressure

Fuel Trim

*Note: Your vehicle may not support all above parameters. How many parameters you can get is depended on the vehicle manufacturer’s implementation.

Our device works on all 1996 to 2010 cars and light trucks sold in the United States, including:

Acura Alfa Romeo Ariel Atom Aston Martin Audi Bentley BMW Buick Cadillac Chevrolet Chrysler Citroen Daewoo

Daihatsu Daimler Dodge Ferrari Fiat Ford Geo GMC Holden Honda Hummer Hyundai Infiniti

Isuzu Jaguar Jeep Kia Lamborghini Lancia Land Rover Lexus Lincoln Lotus Maserati Mazda McLaren

Mercedes Mercury MG Mini Mitsubishi Nissan Oldsmobile Opel Pagani Panoz Peugeot Plymouth Pontiac

Porsche Regal Renault Rolls-Royce Roush Rover Saab Saleen Saturn Seat Scion Shelby Skoda

Smart Subaru Suzuki Tesla Toyota Triumph TVR Vauxhall Volkswagen Volvo Yugo …… ……

SSID: WiFiOBD

IP: 192.168.0.10

Subnet: 255.255.255.0

Port: 35000

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Operating Temperature: -15 to 100 Deg Celsius

Plastic: Automotive Grade

Physical Dimensions: 6 x 5x 2.5 inches

What features you can have depended on what software you install on iPhone /iPod touch /iPad/ PC. There are a lot of commercial or free software.

The features of the software differ from one another. User should choose his own software by his preference. For more details about the software,

please consult the software vendors.
