ST-TP ResetV2-Terminator Auto Tire Pressure Monitor Sensor TPMS Activation Tool

ST-TP ResetV2-Terminatoroffer functions activation, reset and match on the vehicles which comes with the tire pressure sensor up to Dec, 2017 year including Mercedes Benz, BMW, Audi, VW, GM, Ford, Chrysler, Renault, Peugeot, Citroen, Ferrari, Fiat, Iveco, Land Rover, Toyota, Nissan, Honda, Mazda, Mitsubishi, Suzuki, Subaru, Hyundai, Kia etc.

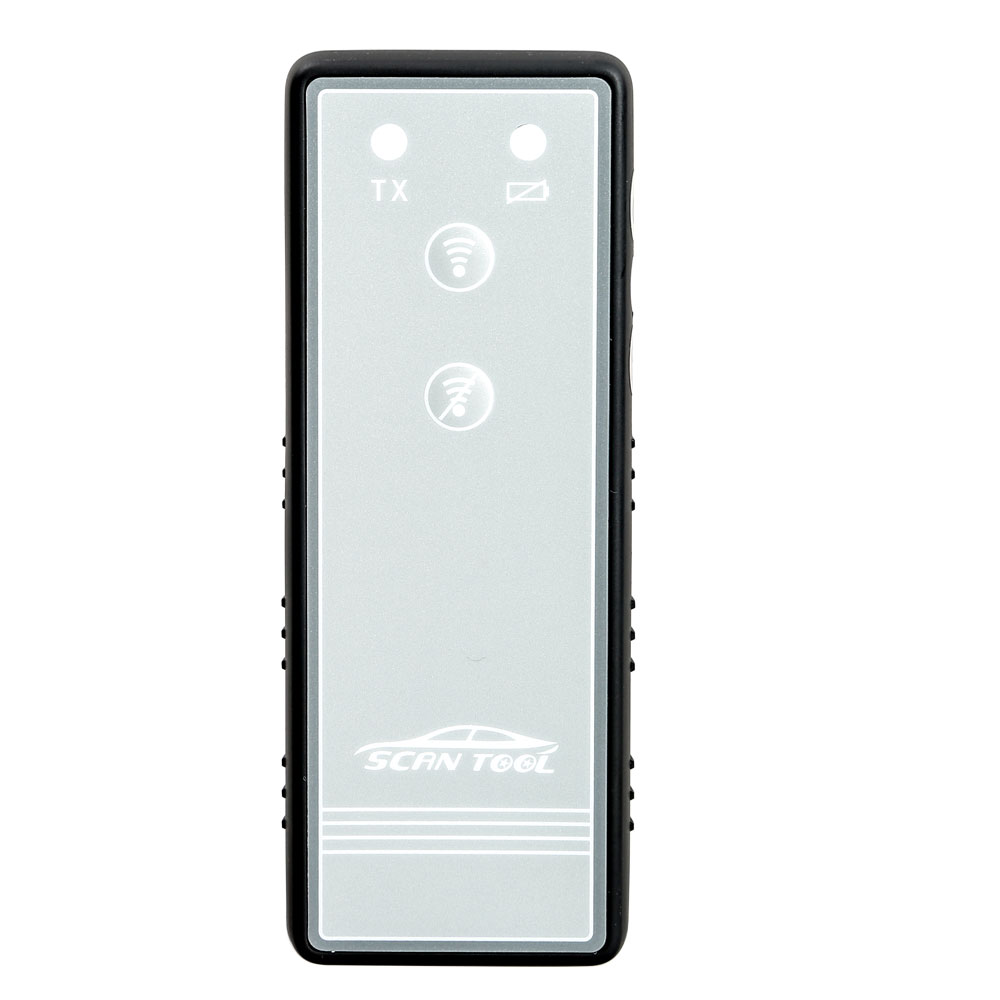

Hardware introduction:

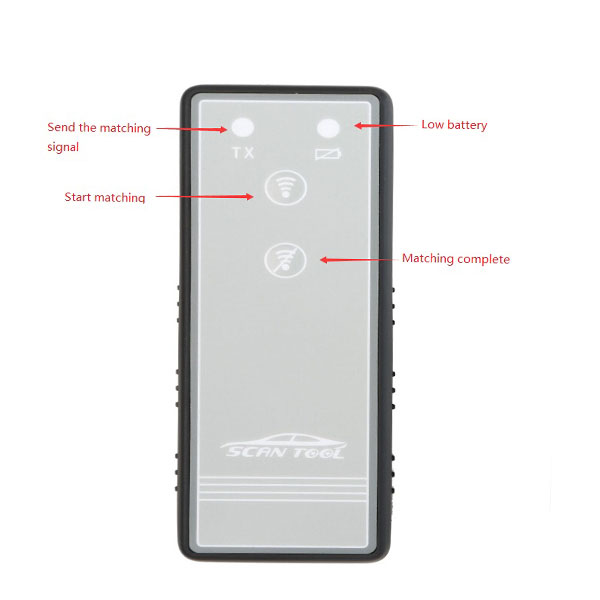

Button / Indicator meaning:
1: Send the matching signal
2: Low battery
3: Start matching
3: Matching complete

ST-TP ResetV2-Terminator Functions:
Activation
Reset
Match

How to use ST-TP ResetV2-Terminator?
Ensure the vehicle is the TPMS Learn mode,and follow the service procedure.Hold tool against the sidewall of the tire,near the valve stem.
Depress the button on the top of the device while holding the tool against the tire sidewall.
When the car horn sounds, press the button below the device.
The green LED indicates that the tool is transmitting.

ST - ST-TP ResetV2-Terminator vehicles:
Mercedes Benz, BMW, Audi, VW, GM, Ford, Chrysler, Renault, Peugeot, Citroen, Ferrari, Fiat, Iveco, Land Rover,Toyota, Nissan, Honda, Mazda, Mitsubishi, Suzuki, Subaru, Hyundai, Kia

* Can work with all of the vehicles which comes with the tire pressure sensor before December, 2017 year.

Note:
ST-TP ResetV2-Terminator doesn't come with the battery, the battery type is pp 3 battery 9V.

Package includes:

1pc x ST-TP.ResetV2 Terminator Auto Tire Pressure Monitor Sensor TPMS Activation Tool
