PIN Code Reading Key Programming For Renault K-Line

Notice:
1. Language: English
2.Renault PIN Code Reading Key programming is not the same as Renault Explorer.

What is difference between Renault PIN Code reading Key programming and Renault Explorer?
Renault PIN Code Reading Key Programmer works for Renault cars from 1999-2003 which is K Line. Renault Explorer works for Renault cars after 2003 which is CAN line.

What Renault PIN Code reading programmer can do?
It can read immobilizer PIN code and Key programming on Renault Megane and Megane Scenic modules with UCBIC (BSI) module from 1999 to 2003 year via OBD II.

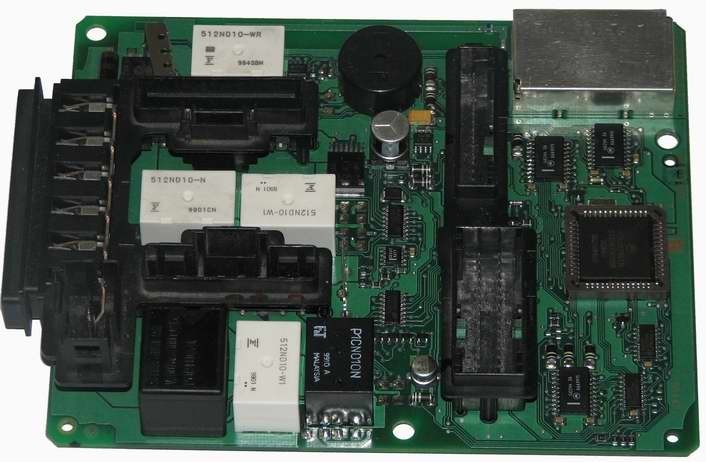

UCBIC (BSI) Module Like This:



PIN Code Reading and Key Programming Procedure:

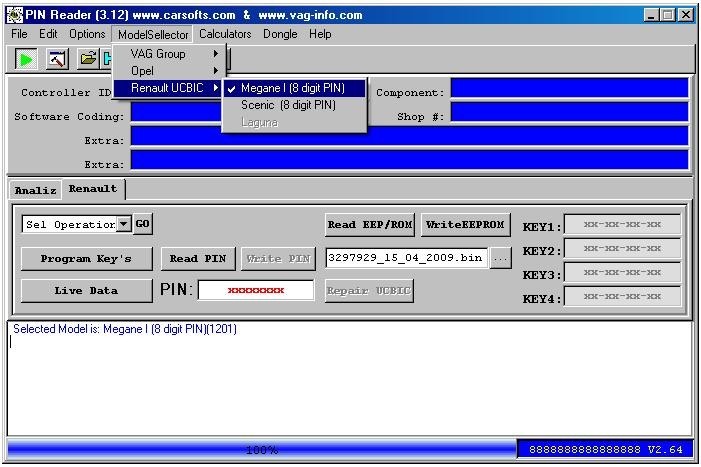

Start PINReader.exe VER 3.12 Select from Model Selector "Renault UCBIC" - "Megane I (8 digit PIN)" or "Scenic (8 digit PIN)". Click "Program Key's" for PIN reading and Key programming...



After Read PIN code started "Renault Megane/Scenic Key programming procedure".
After this message insert first Key to program. Switch On Ignition

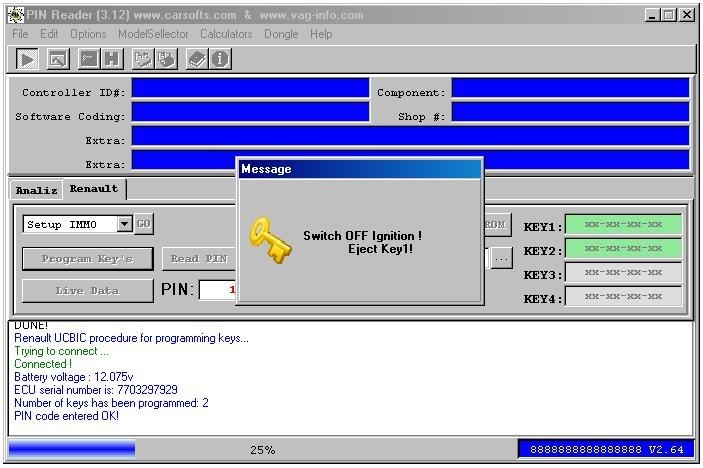

After "Switch OFF Ignition" first Key is programmed.



Programming procedure for the next key is analogous...

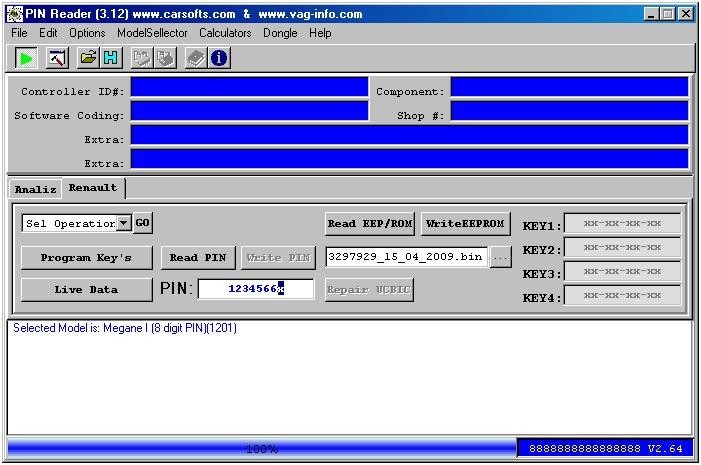

Manual entering PIN code

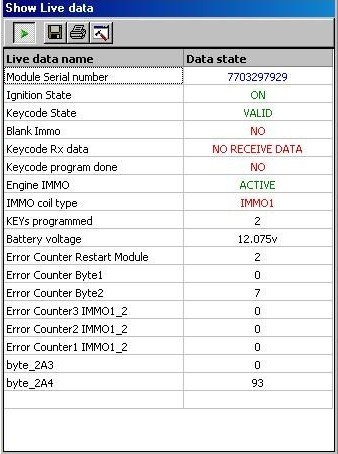

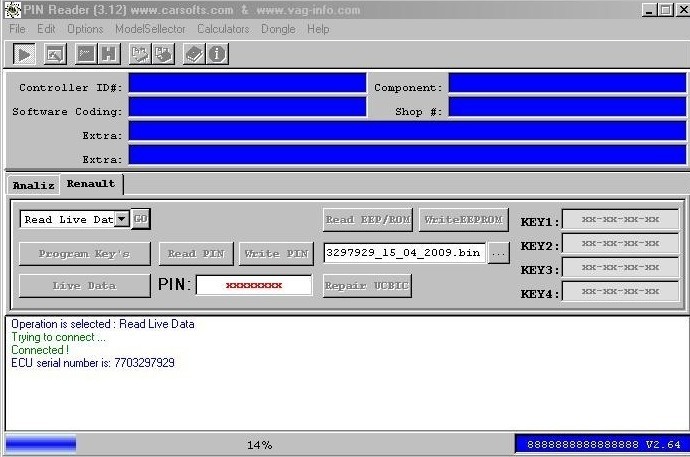

Read Live Data from UCBIC Module

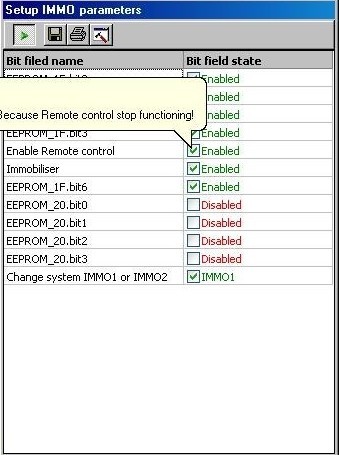

Read and change Setup IMMO parameters



Package List:

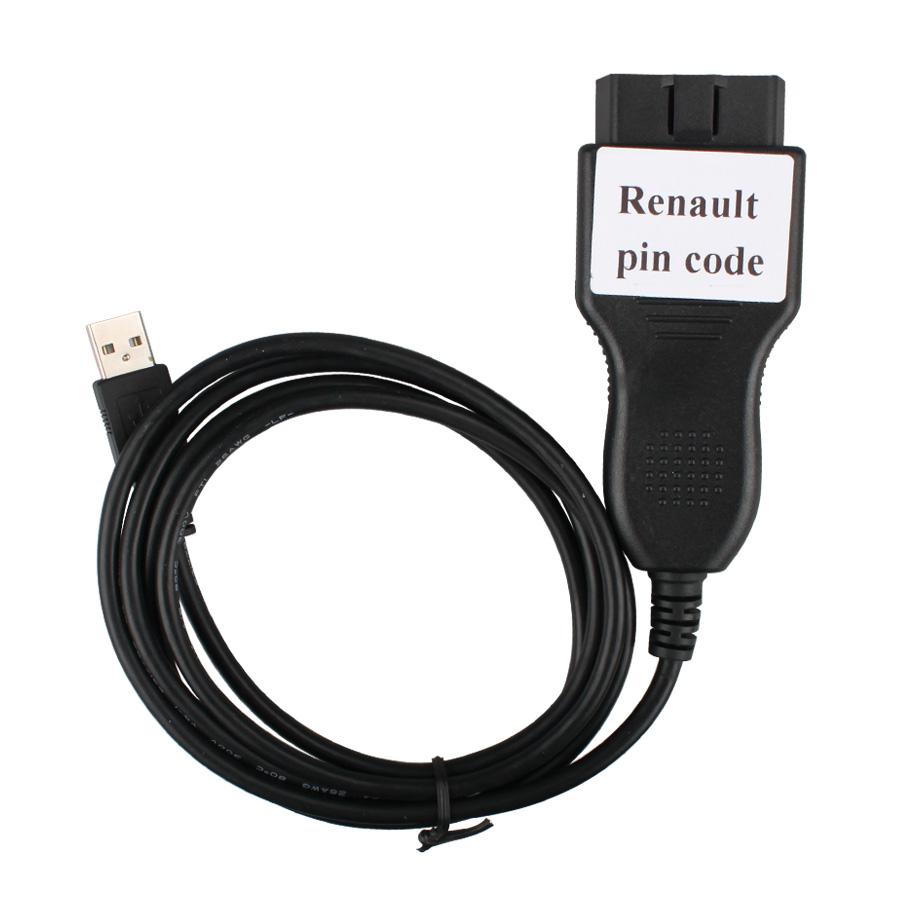

1pc x Renault Pin Code Reading Cable
1pc x CD Driver
