Home › Products › Automotive diagnostic tools › Quickly 4C/4D/46/48 Code Reader Chip Transponder V2.14.8.16 Plus 4D Decoder Clone Box

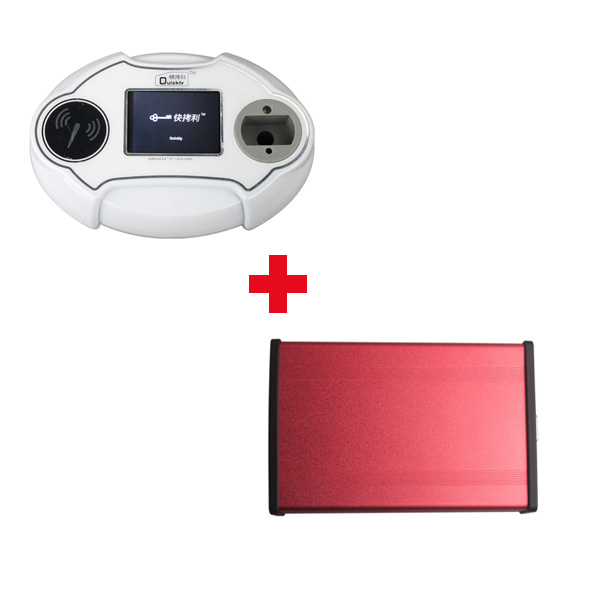

Quickly 4C/4D/46/48 Code Reader Chip Transponder V2.14.8.16 Plus 4D Decoder Clone Box
Quickly Auto Key Programmer V2.14.8.16 can directly copy 4C and 4D chips such as Toyota 4d67, while need buy 4D Decoder with it. Support 46 Chips copy, can recognize locked ID48 and can unlock ID48.
Descriptions of Quickly 4C/4D/46/48 Code Reader Chip Transponder V2.14.8.16 Plus 4D Decoder Clone Box
Copy 4C,4D,46 Chips quickly.
Can directly copy 4C and 4D chips, can copy such as Toyota 4d67, need buy 4D Decoder with it.
Support 46 Chips copy, need buy 46 Decoder with it.
Can recognize locked ID48 and can unlock ID48.
Can directly copy 4C and 4D chips, can copy such as Toyota 4d67, need buy 4D Decoder with it.
Support 46 Chips copy, need buy 46 Decoder with it.
Can recognize locked ID48 and can unlock ID48.
Quickly 4C/4D/46/48 Code Reader Chip Transponder Auto Key Programmer V2.14.8.16 Plus 4D Decoder Clone Box
Quickly 4C/4D/46/48 Code Reader PC Based Software Free Download
Top 7 Reasons to Buy Quickly 4C/4D/46/48 Chip Transponder Programmer Plus 4D Decoder Clone Box:
1. 3.5-inch TFT LCD Touch screen with built in battery, can work without additional power supply, portable and convenient.
2. Read chip quickly, stably and accurately.
3. Do not need to connect the computer copy 4C, 4D, 46
4. Support copy 4C, 4D chip (TPX1, TPX2, EH2, TK40...)
5. Same Functions as original CN900 & ND900 Key programmer, while much cheaper in price
6.battery operated
7. Can Support TOYOTA H Key
Notice:
1. Language: English Only
1. To copy 4D chips, need to buy 4D Box alone
2. To copy ID46 chips, need to buy ID46 Decoder alone
6.battery operated
7. Can Support TOYOTA H Key
Notice:
1. Language: English Only
1. To copy 4D chips, need to buy 4D Box alone
2. To copy ID46 chips, need to buy ID46 Decoder alone
Quickly 4C/4D/46/48 Chip Transponder Programmer Function:
Function 1:
1) Chip reading. Accurately identify the chips(11, 12, 13, 33, T5, 40, 41, 42, 44, 45,46, 48, 4C, 4D, 60, 61, 62, 63, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 74, B9, 8C, 8E, 8A...)
2) Distinguish the formats of 48, 4D and 46 in a detailed way. 2010 Toyota can identify G key and distinguish 4D72. Identification of F2010 new ford key. Directly show the master and deputy keys of Toyota.
Function 2:
Detect the frequency of remote controller, identify whether Toyota smart cards are new and unused and read data.
Function 3:
It supports on copying the chips (11 12 13 33 T5 41 and 42) and parts of 44 and 40.
Fully support the copy of chips 4C, 4D and 46, and copy by using a dedicated chip.
Function 4:
Connecting with Chinese PC software, it can save the read key code data unlimited.
Function 5:
Support the writing of startup chip. The vehicle models are as follows: Jinbei chip 13, Zhongghua chip 13, Elysee chip 33, Toyota chip 4C, Renault encryption chip 46, FAW Bensturn chips B50 and B70.
Mazda and Mercedes-Benz W140 avoid demolition. Write start of more than 60 models including Ford and calculate password, it is equivalent that it has some tango functions.
Function 6:
Unlock function of chip 48(encryption chip cannot be unlocked)
Function 7:
The general chip 48 can be modified to dedicated chip 48. For example, the general chip 48 can be modified into 48A1, 48A2, 48A3, 48A4, dedicated chip 48 of Jetta in 2010 and 2011, dedicated chip 48 of Zhonghua.
Function 8:
Support the six calculation passwords of Hyundai and Kia chassis before 2007.
Function 9:
Support on programming all kind of Fiat key, such as (11, 13 and 33), Three anti-theif ways of chip 48.
Additional Functions:
Support T5, Temic, and generate 11/12/13/33
Support 4D, generate 4C, 61/62/63/65/66/67/68/69/6A/6B/B9/71
Special Notice:
For 4D and 46 copy function, need buy special 4D and 46 Decoder with dedicated chips.
Instruction for Using:

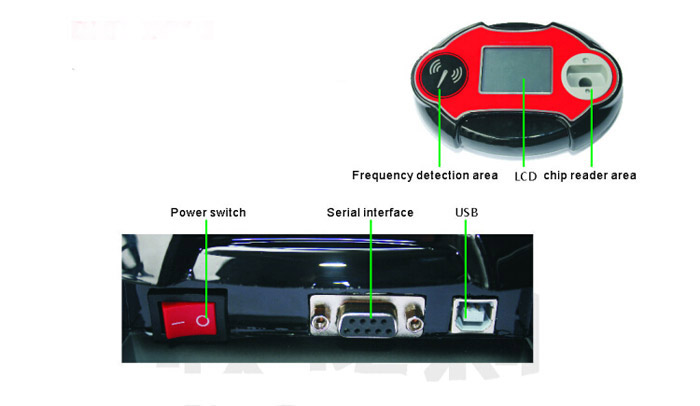

1. The external interface as show in following picture:
2. Identify the chip

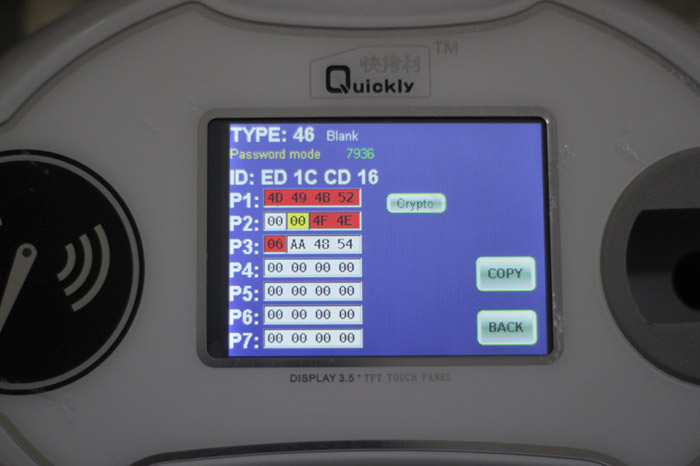

Put the chip into the chip read area and click "chip reading and writing". If there is a chip, the corresponding chip and parameter will be displayed, as show in following picture:
3. Copy the chip

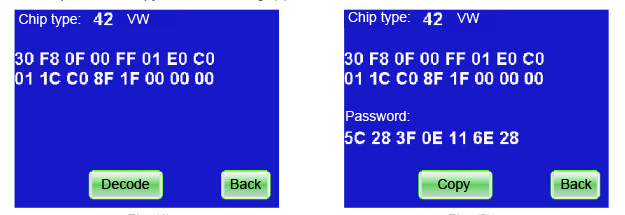

For examply: copy the chip 42. Firstly, put the key that can start the original car into the chip reader area to read data, as show in following picture. Then decoder, remove the key of original car, put into the new chip 42, click "copy", as show in next picture--OK!
4. Additional settings

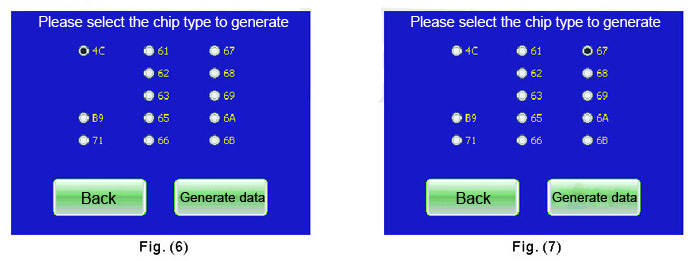

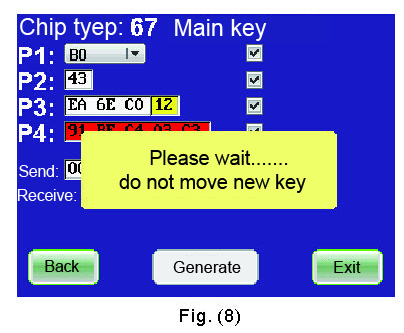

For example: in order to generate the chip 4D67, we first put a blank chip 4D60 into the chip reader area and then click "additional settings"--"key cutting", as show in Fig.(6)---click 67, as show in Fig(7)---generate data---done, as show in Fig.(8)
5. Identify whether Toyota smart key has been used or not
For example: put Toyota smart key into the chip read area and click "additional settings"--- reading of "smart key", it will show you it is new or used.

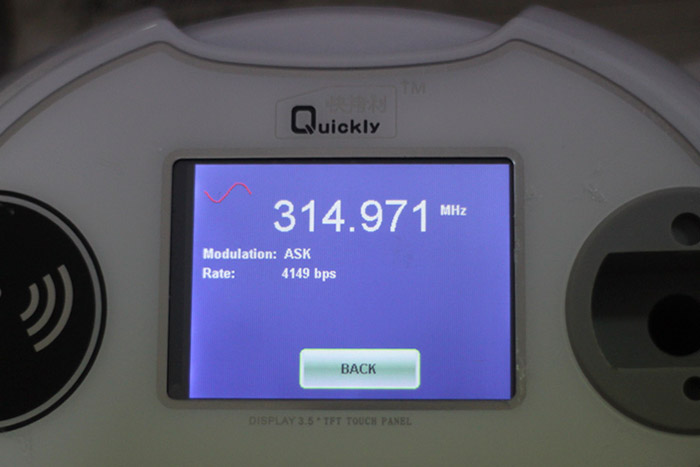

6. Detect the frequency
Put the key of the remote controller into the frequency detection area in a flat manner, and click "frequency detection" in the menu; then, press any key of the remote controller, and corresponding frequency, ID, modulation mode, speed and other parameters are then show on the screen.
Package including:
1pc x Quickly 4C/4D/46/48 Machine
1pc x USB Cable
1pc x Quickly 4D Decoder
1pc x cable
1pc x power adapter
1pc x The host base
