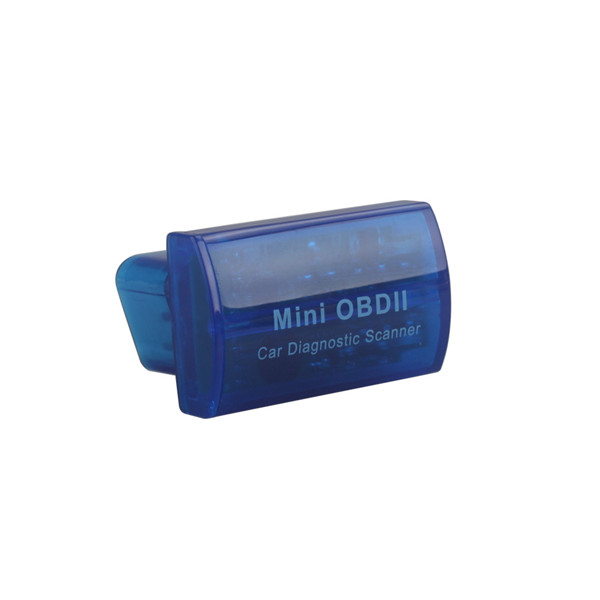

Mini OBDII Car Diagnostic Scanner for Android (Blue/Black/White)

Mini OBDII Car Diagnostic Scanner Features:

The newly developed high-quality wireless scan tool, support all OBD2 protocols.
Work with all OBD2 compliant vehicles.
Enable to read diagnostic trouble codes.
Small bluetooth interface with a 16 pin socket.

Support different kinds of devices to use this scan tool:

Android system phones,
Symbian system phones,
Windows XP and WIN7 32bite computers.

Mini OBDII Car Diagnostic Scanner Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display
their meaning (over 3000 generic code definitions in the database).

Display current sensor data, including:

1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle SpeedV2.1
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure

Mini OBDII supported protocols:

ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBDII for Android

1. Plug in OBDII adapter, start car engine
2. Install Software “Mini OBD”
a) Copy “Mini OBD” to phone from CD
b) Install Software
3.Launch Software “Mini OBDII”
a) Register and login your account
b) Click at the Icon on the top right.
c)Click at “Vehicles Setting” and select the model
of your car.
4.Connect with OBDII Adapter
a) Click at “Connecting Device” to prepare for
OBDII adapter connection.
b) Click at “Device Plugged please scan now” to
scan the OBDII Bluetooth.
c)Locate Bluetooth OBDII and click at Connect
Vehicle Real Time Data
HUD Display
Vehicle Real Time Data Stream
Route Analysis
Health Scan
Clear Fault Codes

Package including:

1 x Mini OBDII Car Diagnostic Scanner For Android
