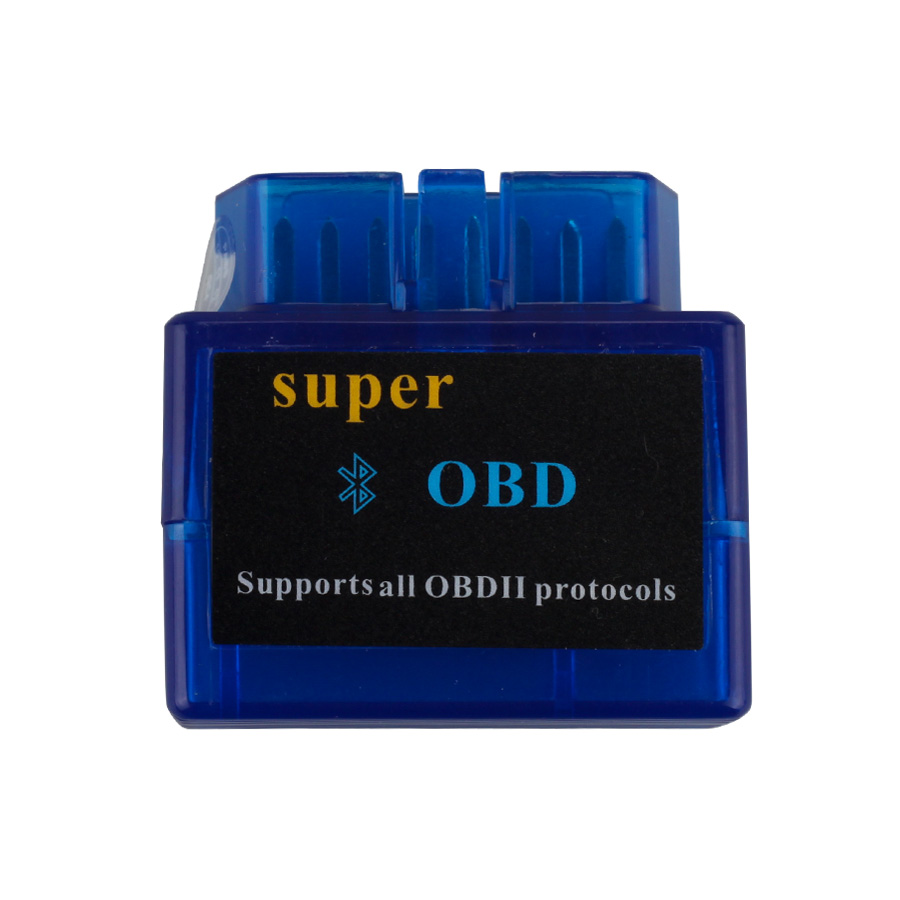

V2.1 Mini ELM327 ELM 327 OBD2 Bluetooth Interface Auto OBDII Diagnostic Scanner with One Year Warranty

V2.1 Mini ELM327 support phones based on Android, Symbian system and Windows XP and WIN7 32bite computers to diagnose OBD2 compliant vehicles. V1.5 Mini ELM327 is exquisite and convenient to use.

Descriptions of V2.1 Mini ELM327 ELM 327 OBD2 Bluetooth Interface Auto OBDII Diagnostic Scanner with One Year Warranty

V2.1 Mini ELM327 OBD2 Bluetooth Interface Auto OBDII Diagnostic Scanner support phones based on Android, Symbian system and Windows XP and WIN7 32bite computers to diagnose OBD2 compliant vehicles. V1.5 Mini ELM327 is mini sized, exquisite and convenient to use.

V1.5 Mini ELM327 ELM 327 OBD2 Bluetooth Interface Auto OBDII Diagnostic Scanner works on Android Windows Symbian

MINI ELM327 Bluetooth Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others...

SUPER MINI ELM327 Bluetooth Features:

Works with all OBD-II compliant vehicles

Wireless (Bluetooth)

Software included for Palm, PDA

Software included for Windows PC

Software included for Windows Smartphone

Supports ISO 9141, KWP2000

Supports CAN bus

SUPER MINI ELM327 Specifications:

Output protocol: bluetooth

Color: blue

Material : plastic

Voltage: 12V

Current: 45mA

Wave frequency: 38400Hz

Applicable scope: 5-10m/ 16.4-32.8ft

Package list:

1pc x SUPER OBD ELM327 Bluetooth

1pc x CD drive

Difference between SC104 ELM327 series

Item NO	Name	PC	Iphone iPad iPod	Android	Bluetooth	WIFI	Mini
SC104	MINI ELM327 Bluetooth	PC-based	/	/	Bluetooth	/	Mini
SC104-B	MINI ELM327 Bluetooth white	PC-based	/	/	Bluetooth	/	Mini
SC104-C	MINI ELM327 Bluetooth (black)	PC-based	/	/	Bluetooth	/	Mini
SC104-D	Super MINI ELM327 Bluetooth Black	PC-based	/	/	Bluetooth	/	Mini
SC104-E	Mini ELM327 Bluetooth	PC-based	/	Android + Symbian	Bluetooth	/	Mini
SC104-F	Super Mini ELM327 Bluetooth OBD2 CANBUS scanner	PC-based	/	Android + Symbian	Bluetooth	/	Mini
SC104-G	Super MINI ELM327 Bluetooth OBD2 White	PC-based	/	Android + Symbian	Bluetooth	/	Mini
SC104-H	AUGOCOM MINI ELM327 Bluetooth OBD2 Hardware V1.5 Software V2.1	PC-based	/	/	Bluetooth	/	Mini

Tags: Mini ELM327 , mini elm327 bluetooth , elm327 , obd2 , elm327 v2.1 , bluetooth elm327 , elm327 bluetooth , super elm327 , elm327 interface ,
