Mercedes Test Cable of EIS ELV Test Cables for Mercedes Works Together with VVDI MB BGA Tool 12pcs/set

Mercedes Test Cable support:

1.CLASSE A B W169 K-line Read/Write
2.W202 W208 W210 K-line Read/Write
With this switch, users can free to read/write CPU1 and CPU2.
3.W203 K-line Read/Write
4.203 211 219 209 906 639 K-line Read/Write
5.202 208 210 K-line Read/Write
6.Gateway simulator
support 209 211 CAN Read/Write
To read/write data, please connect the gateway or gateway adapter with the test cable.
7.Gateway Adapter
The adapter above with a normal cable can successfully replace the specific cable for VVDI 146 .209 .211 to read EIS data.
(Only the gateway simulator or fast collector can read EIS data directly.)
8. 169 CAN Read/Write
9.220 210 230 K-Line Read/Write
10.639-2009 CAN Read/Write CPU 0L01Y
11.203 639 K-Line Read/Write 1L02M 2J74Y 4J74Y,etc.
12.W906 CAN Read/Write

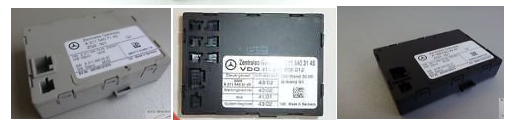

All gateways above can be supported to CAN read/write.

Wire sample figure:




1.CLASSE A B W169 K-line Read/Write




2.W202 W208 W210 K-line Read/Write

With this switch, users can free to read/write CPU1 and CPU2.





3.W203 K-line Read/Write




4.203 211 219 209 906 639 K-line Read/Write




5.202 208 210 K-line Read/Write





6.Gateway simulator

Support 209 211 CAN Read/Write
To read/write data, please connect the gateway or gateway adapter with the test cable.



7.Gateway Adapter

The adapter above with a normal cable can successfully replace the specific cable for VVDI 146 .209 .211 to read EIS data.
(Only the gateway simulator or fast collector can read EIS data directly.)

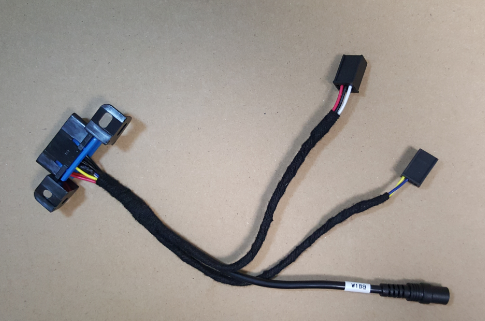

8. 169 CAN Read/Write




9.220 210 230 K-Line Read/Write

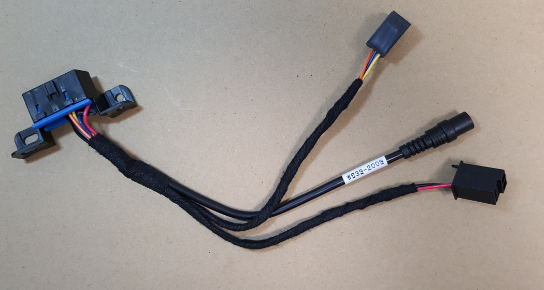

10.639-2009 CAN Read/Write CPU 0L01Y




11.203 639 K-Line Read/Write 1L02M 2J74Y 4J74Y,etc.





12.W906 CAN Read/Write





All gateways above can be supported to CAN read/write.

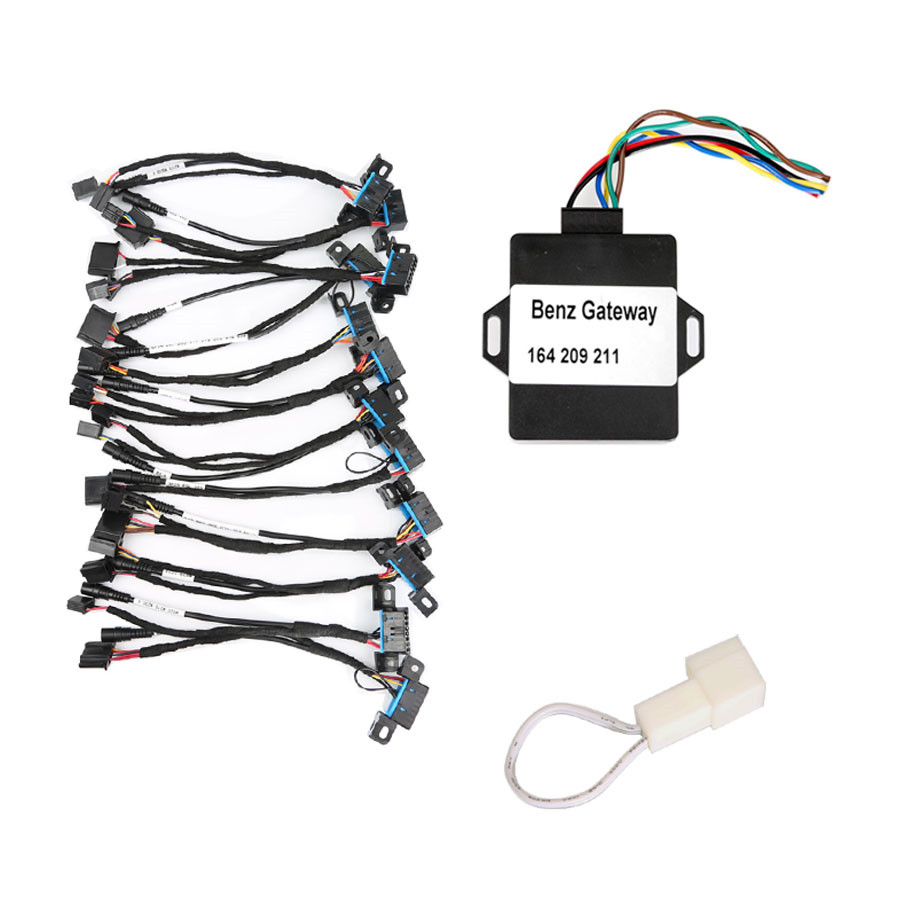

Package includes:

1pc x W639-2009
1pc x W906
1pc x W203 W639 K

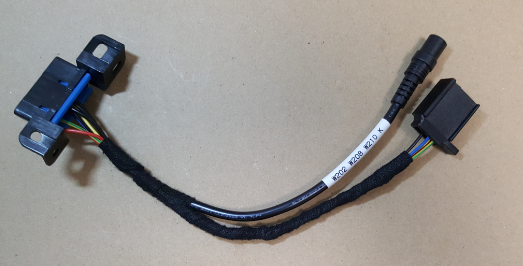

1pc x W202 W208 W210 K
1pc x W209 W211
1pc x CGW ZGW
1pc x 4PIN ESL 169
1pc x W169

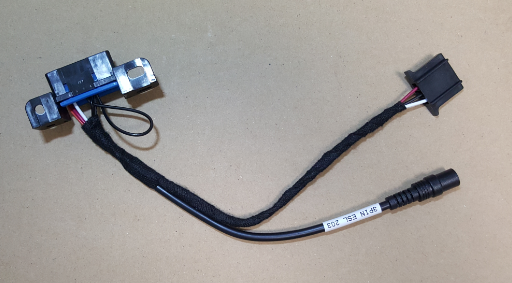

1pc x 3PIN ESL 203

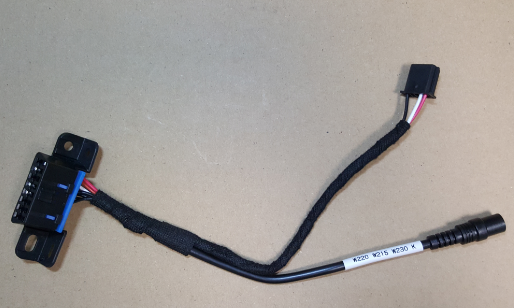

1pc x W220 W215 W230 K
1pc x 5PIN ESL OLD 202 208 210
1pc x 5PIN ESL 203 211 219 209 906 639
1pc x Mercedes A164 Gateway Adapter
1pc x Gateway Adapter
