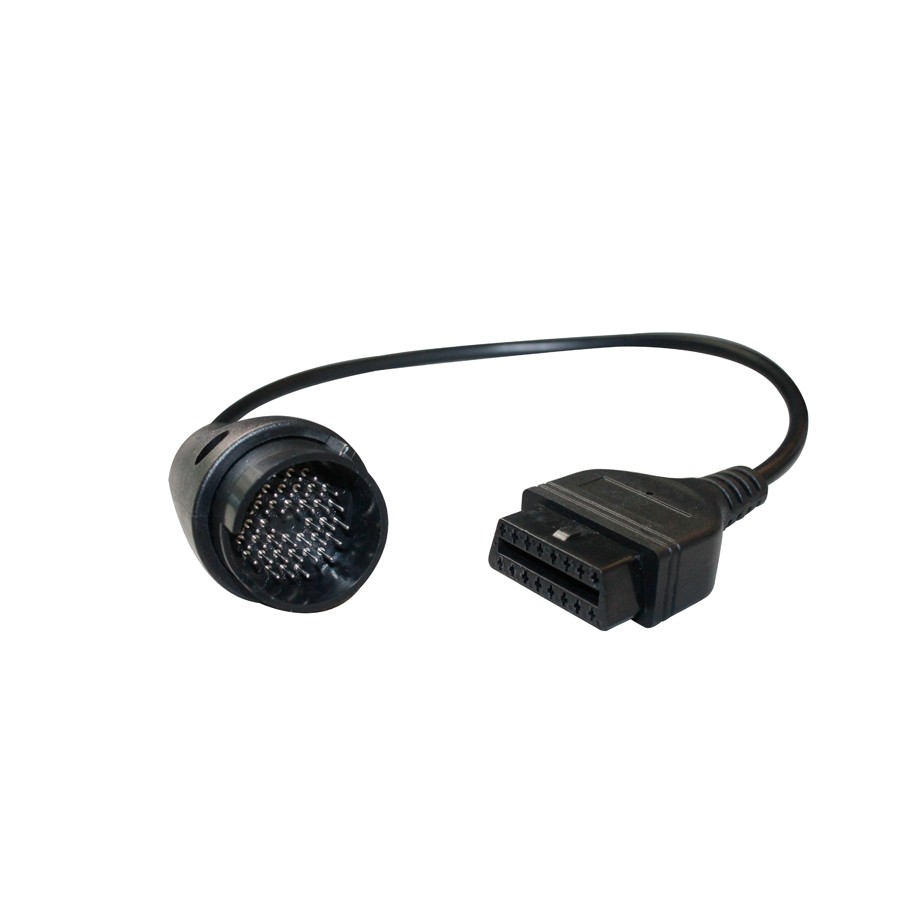

Description of Mercedes benz 38Pin Connector:

Works on all Mercedes Benz vehicles with a 38 PIN diagnostic connector.

Specifications of Mercedes benz 38Pin Connector:

1.Cable definition:
Pin-out Diagram
OBDII Connector(Female) ---- BENZ 38Pins Connector
4+5----------------------------------1(Signal Ground)
7------------------------------------------15(K Line)
16-----------------------------------------3(Power)

FAQ:
Q:Is This Mercedes benz 38Pin Connector Compatible With My Vehicle?
A:Yes -----It works on all Mercedes Benz vehicles with a 38 PIN diagnostic connector.
