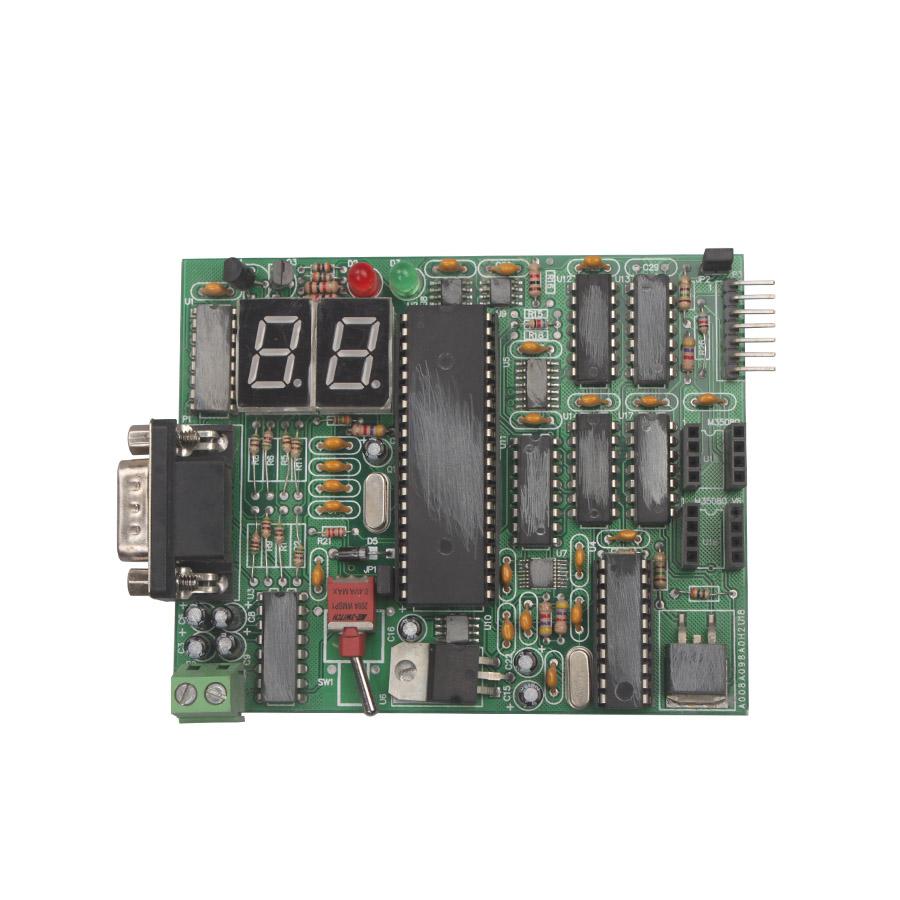

M35080V6 EEPROM Eraser Programmer

Functions:

1. Read,program,erase incremental Registers\EEPROM
2.Erase time to Delivery State for M35080V6 1-10 minutes
3.Supported all clock rates 2.5, 5.0 and 6 MHz IC's
4.Erase time to Delivery State* 1-3 seconds
5.In-circuit/On-board EEPROM programming
6.On-board EEPROM programming for M35080V6
7.Onboard processor ATmega16 allow to Firmware Update to new versions
8.Self-Check capabilities
9.4 adaptors for SO8 device

Additional ItemsYou'll Need To Use This Tool:

1.Host:A 32 Bit x86 based or Pentium PC with a free Com1-8 communication port.
2.Power supply:An 12 Volt / 500 MA

Notice:

Delivery State: The first 32 bytes (incremental registers) are set to all "0"s, 16 words at 0000 The EEPROM memory array 0020-3FFF set to all FF. The Status register set to 10
