Lonsdor K518ISE Key Programmer with Odometer Adjustment for All Makes

Lonsdor K518ISE, the English version of Lonsdor K518, is an universal key programmer for all makes from Europe, America, Asia and China, also it can perform odometer adjustment for some makes. Its nice features are built-in Volkswagen 4th 5th adapter & RFID transponder reader / writer, program Toyota/Lexus smart key all key lost via OBD and free BMW FEM key programming (for all keys lost, enter 32-bit ISN code). Lonsdor K518ISE is specialized on Volvo, Maserati, Ferrari, Lamborghini, Bentley, Nissan etc. Lonsdor K518ISE has no token limitation.

Lonsdor K518ISE Main Functions & Features:

Immobilization
Odometer adjustment
Built-in Volkswagen 4th 5th adapter
Built-in Chip & remote detection module.
Free BMW FEM key programming
Program Toyota/Lexus smart key all key lost via OBD

Lonsdor K518 Key Programmer Special Features:

Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
BMW CAS3/CAS3+/CAS3++: direct OBD programming
BMW CAS4/CAS4+: dismantle & read data programming
16 -New Maserati: smart key programming
16 -New Ford: smart key programming
Hyundai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
Ferrari (458, F12, F149): direct OBD programming
Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.

Lonsdor K518 Highlights:

1.The best car diagnostic tool based on Android
2.WIFI networking ensures software upgrading more convenient
3.No need to plug memory card,or connect the computer with data cable,more flexible in online upgrading,updating and activating.
4.With USB-B2.0 standard connector,OBD-II test cable integrated with the diagnostic connector function of the adapter.
5.Diagnostic speed greatly accelerated,work efficiency improved,better time saving.
6.7 inches high brightness,high definition color IPS capacitive screen
7.3800mAh prolymer battery
8.Support external memory expansion,better within 32G
9.Built-in professional,poerful operation assistant system

Lonsdor K518ISE Latest Update Policy:

Menus are divided into two parts: free menus and subscribed menus.
1. Free menus are free for lifetime.
2. Subscribed menus can be used for free for 180 days. You need to pay for them after the trial period. After the trial period, subscribed menus will not work properly if
you don't pay. And the menus will disappear after updating the device.

A. 365 days is a period and the price is USD630 per period. One year period starts from the day of the trial period finished.
B. Purchase menus with a dealer. You can use the menus normally and permanently after payment.
C. Menus which you purchase includes subscribed menus that have been released and that will have been released in one year period.
D. Subscribed menus beyond one year period requires extra payment.

Lonsdor K518ISE Update Car List Download
The car list in PDF marked Black can be updated for Free.

For cars marked Red enjoy 180 days free trail. You need to subscribe to use later. If you don't need these newly updated car models. You don't need to pay for service, your tool will go back to normal.

Lonsdor K518ISE Newest Update Info:

Lonsdor K518 Update Announcement(August 8th,2018)
Toyota Series:
84 Smart Key
2007 Crown Key
Alphard Add Smart Key
2006 Reiz
Crown 68 chip all lost

Hyundai Series:
2013/2015 Verna Remote
2009 Rohens Add Smart Key
2014 Sonata 8 Communication
2014 IX25 Smart Key All Lost

Honda & Nissan Series:
Honda Accord 9th key
2017 Nissan Teana 4A Transponder

European Vehicle Makes and Models Update [May 5, 2018]
PEUGEOT
PEUGEOT\Select from vehicle\1007\Immobilizer\Type 3
PEUGEOT\Select from vehicle\308\Immobilizer\Type 2
PEUGEOT\Select from vehicle\4008(China)\Smart Key
PEUGEOT\Select from vehicle\4008(China)\Immobilizer

LAND ROVER
LAND ROVER\Select from type\Smart Key\Type 1
LAND ROVER\Select from type\Smart Key\Type 2
LAND ROVER\Select from type\Remote\Type 1
LAND ROVER\Select from type\Immobilizer\Type 1
LAND ROVER\Select from type\Immobilizer\Type 2
LAND ROVER\Select from type\Immobilizer\Type 3
LAND ROVER\Select from vehicle\Defender\Remote\2010-2014
LAND ROVER\Select from vehicle\Evoque\Smart Key\2015-
LAND ROVER\Select from vehicle\Evoque\Immobilizer\Type 1
LAND ROVER\Select from vehicle\Evoque\Immobilizer\Type 2
LAND ROVER\Select from vehicle\Freelander\Smart Key
LAND ROVER\Select from vehicle\Freelander\Remote
LAND ROVER\Select from vehicle\Freelander 2\Immobilizer\2006-2012

MG
MG\Remote\MG7-L
MG\Immobilizer\ZS\Mechanical Key
MG\Immobilizer\ZS\Smart Key

LANCIA
LANCIA\Immobilizer\Delta
LANCIA\Immobilizer\Musa
LANCIA\Immobilizer\Phedra\Type 1
LANCIA\Immobilizer\Phedra\Type 2
LANCIA\Immobilizer\Phedra\Type 3
LANCIA\Immobilizer\Z\Type 1
LANCIA\Immobilizer\Z\Type 2
LANCIA\Immobilizer\Z\Type 3

SAAB
SAAB\9-7\2006-2008\Immobilizer

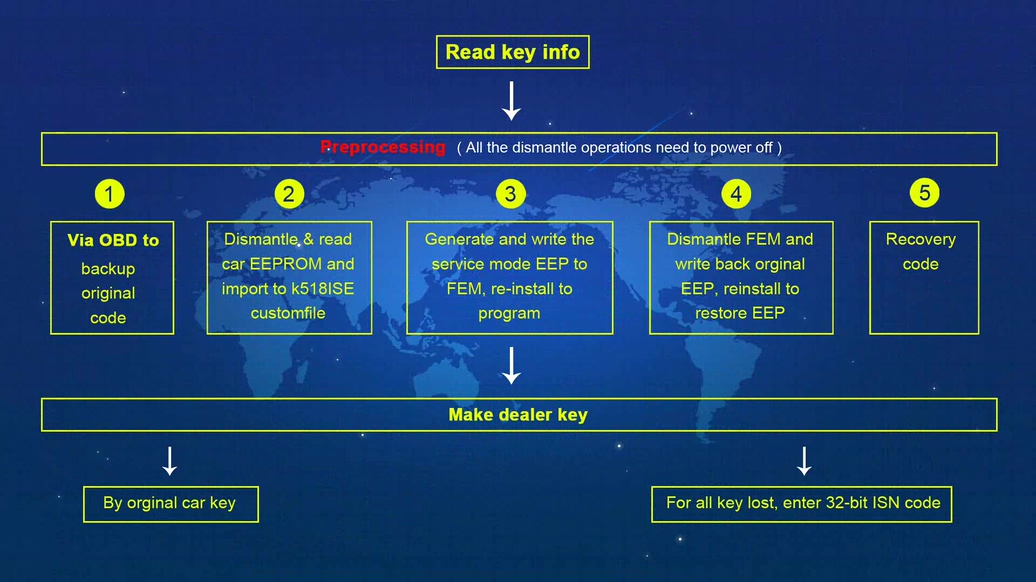

BMW FEM/BDC series key programming
How to use Lonsdor K518ISE program BMW FEM BDC key even all key lost
CAS4 Enable/Disable Key

Lonsdor K518 Immobilization Car List:

Check the detailed functions and car list here
Europe:
Audi, BMW, Benz, VW, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG,
Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart,
Borgward

America:
Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury

Asia:
Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki,
Toyota, Shigaoka Queen

China:
Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car
models are included)

Odometer Adjustment Car List:
VW, Porsche, Ford, Jaguar, Land Rover, Mazda, Audi, Renault, Hummer, Hyundai, Kia...
More high-end cars will be updated very soon.
Details: Lonsdor K518ISE odometer adjustment coverage

Note: K518ISE is still under rapid upgrading, more functions will be released soon, please refer to official website www.lonsdor.com, you can “One key update” for the latest version by yourself.

Toyota/Lexus smart key all key lost via OBD

Lonsdor K518ISE can program Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator 4 in 1 Set (optional)

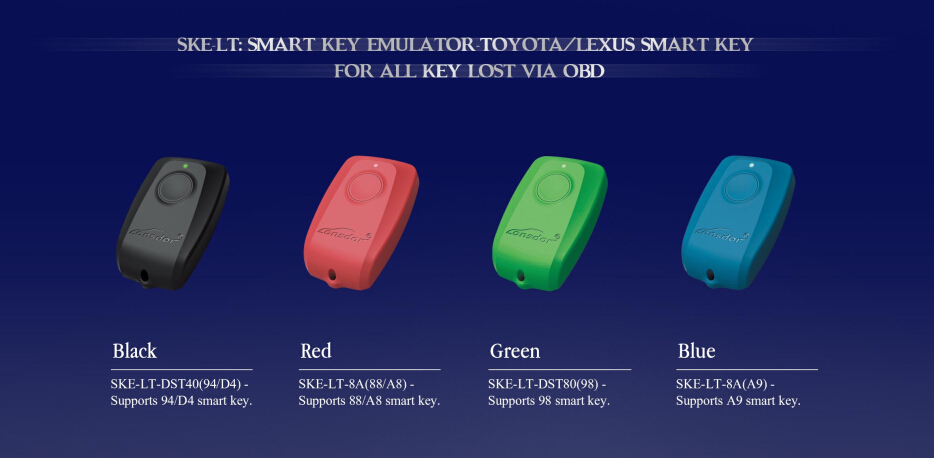

SKE-LT: Smart Key emulator - Toyota/Lexus smart key for all key lost via OBD.
Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.

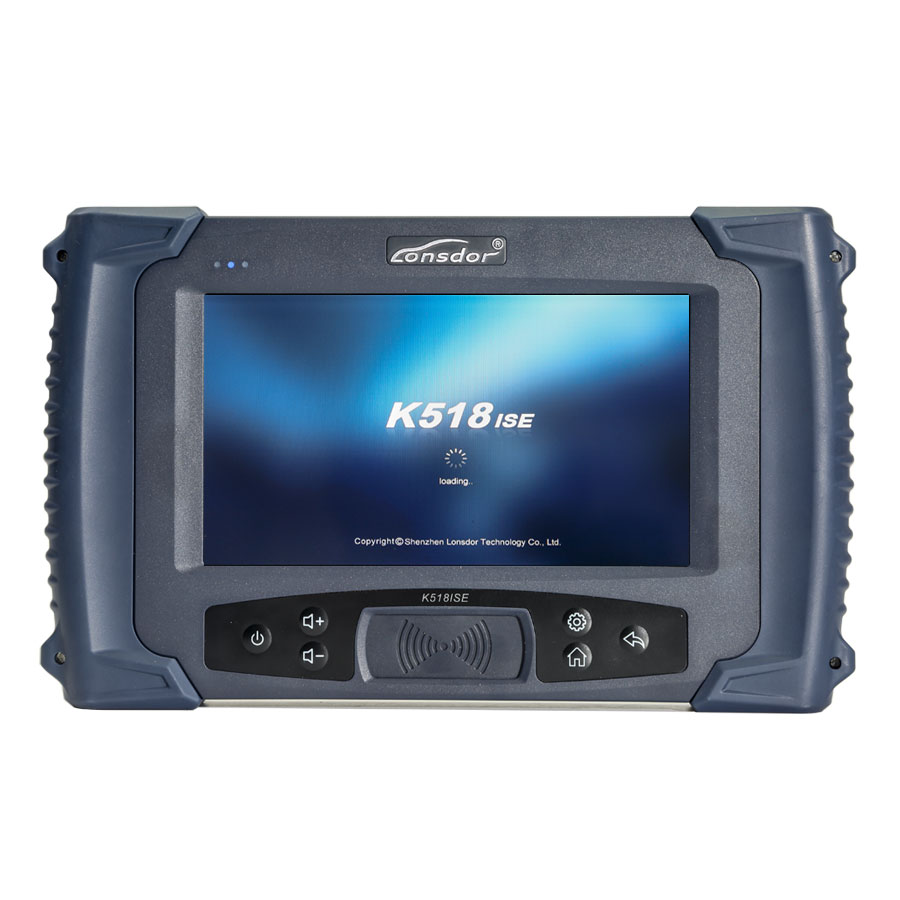

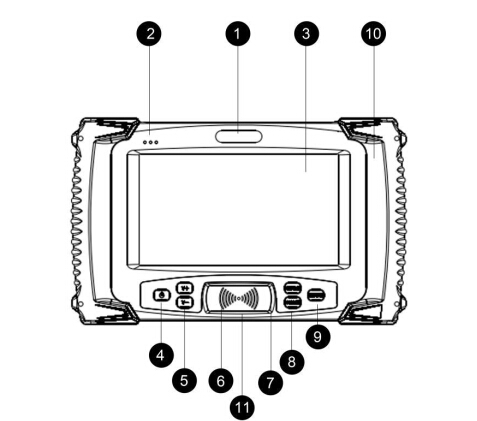

Lonsdor K518ISE Main Unit Appearance:

1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE
Screen shot: press power button and volume down button together

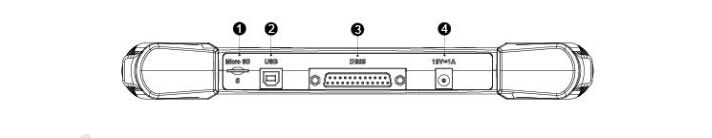

K518ISE Top View:


1.Power socket 2.SD card slot
3.DB25 port 4.USB port

KPROG Adapter Appearance

KPROG Adapter Front View:
1.Trademarks
2.Three-color indicator: Red:power light Blue:data light Yellow:comm status light
3.Simple horn seat:to connect with 20pin cable


KPROG Adapter UP View
Power socket
DB15 port
USB port

Functional accessories:
RN-01 board:read & write CEM data
E-01 board:read & write EEPROM data
FS-01 board:read & write KVM data
20P cable:connect adapter with function accessories
*The 3 extra connector s are for Honda(3-pin),Hyundai/Kia(10-pin) And Kia(20 pin) respectively.

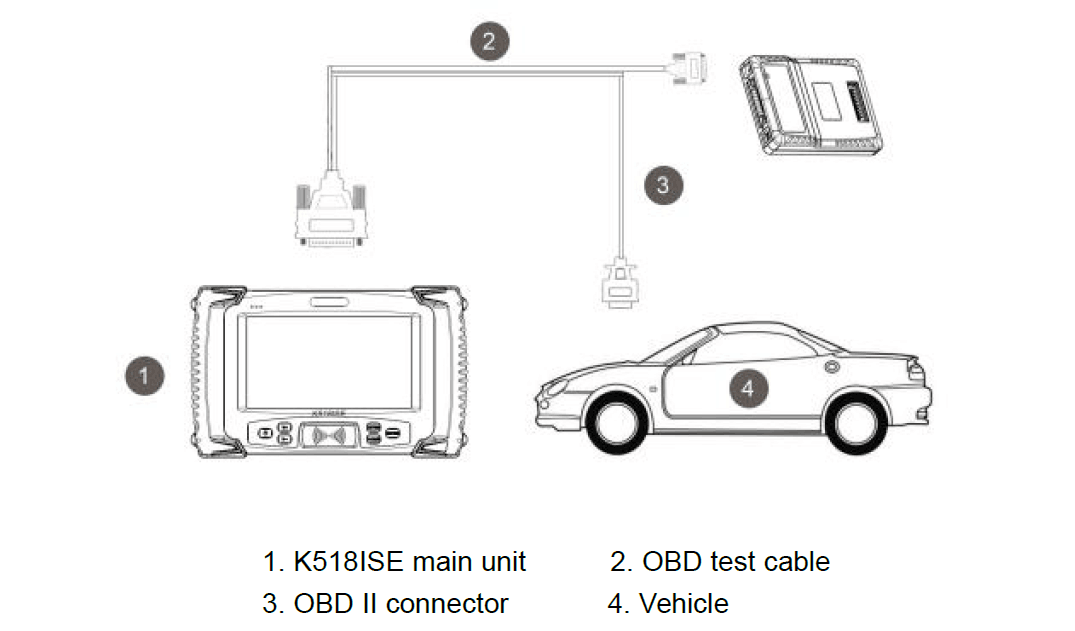

Lonsdor K518ISE Connection Picture:

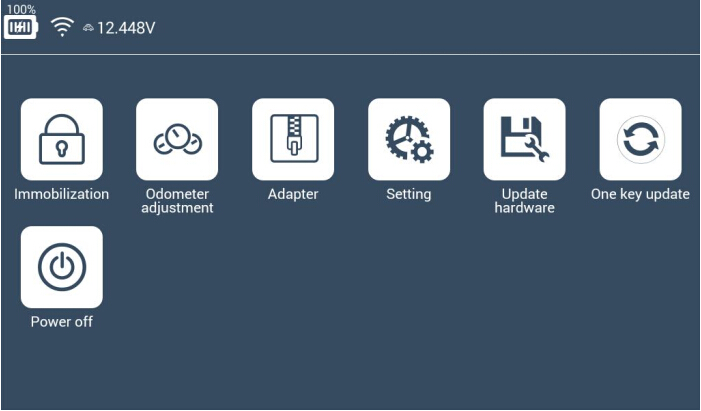

Lonsdor K518ISE Main interface:

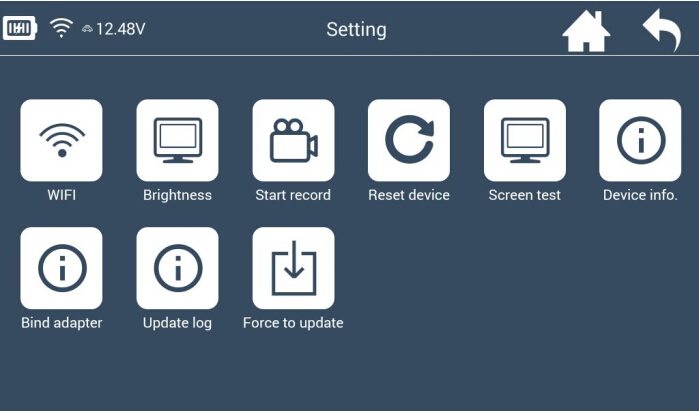

Lonsdor K518ISE Setting interface:

How to Use Lonsdor K518ISE?

Here I take the Toyota/Lexus smart key all key lost as example.
1) Binding
1.Go to the “Bind emulator key” function;
2.Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);
3.Following the system direction and click “OK” to start binding;
4.After binding completed, the system will indicate “Binding successful”.

Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the”One key update” for latest news.

2) Backup EEPROM data
Connect K518ISE with car OBD port, enter into “Backup immodata” to back up the data.

3) Make emergency emulator key
After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.

4) Add smart key
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
The system will read current key count, then follow the instruction to add key.
Precaution
1.”Bind emulator key” can identify the SKE emulator key binding state;
2.SKE emulator key need to bind K518ISE host and can bind only for one time;
3.When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.

More detail pleas view our official website: K518ISE programs Toyota/Lexus smart key all key lost via OBD

How to update Lonsdor K518ISE:

There are 3 ways to update the system,and after you connect the k518ise to the network,it will updated to the latest version automatically.
One key update:quickly update the new added or modified functions.
APK update:this is used when the APK is updated.
Force to update:this is used when the device is faulty or to retrieve data.

Londor K518ISE Adaptor Binding:

Please note that KPROG adapter must be bound to K518ISE before using, here is the binding process:
Step 1. Connect adapter to K518ISE with mainline
Step 2. Connect K518ISE with 12V power supply
Step 3. Enter into “Setting”
Step 4. Click “Bind adapter”
Step 5. Click “OK” to complete

Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the”One key update” for latest news

How to Register Lonsdor K518ISE key programmer?

After system updating, you need go to registration&activation.
For new user,
Click on Registration,
Input: user name(email), name(min 2 char), password(min 6 char), email verification code
Click on YES
Lonsdor K518ISE registration completes
(if interrupted after registration is done, you will go to the System update–Registered user to proceed).
Then go to Activation confirmation to continue.

How to ActivateLonsdor K518ISE car key programmer tool?

After confirming activation, it will go thepassword Setup interface
set 6-digit numbers as your startup password information verification by Lonsdor
(5-30 minutes, you can check the progress by clicking “Refresh” )
re-enter the password to verify
get the notification that verification successful
the whole process before using the device is complete.

The most important note:
1. User name must be workable email address, so that you can receive the verification codefrom Lonsdor by email.
2. Please pay attention to the difference between the registration password (min 6 char) and the startup password(6-digit), the former will generally only used when registration, so please commit the 6-digit startup password into memory, as this will be required every time when you start the device.

3. The account will be bound to the corresponding device for life, other accounts can not log in your device and your account can not log
in an registered or activated device either. 4. An account can be used to bind multiple new devices.

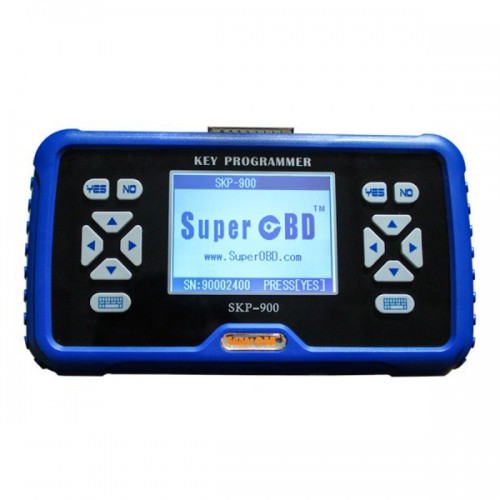

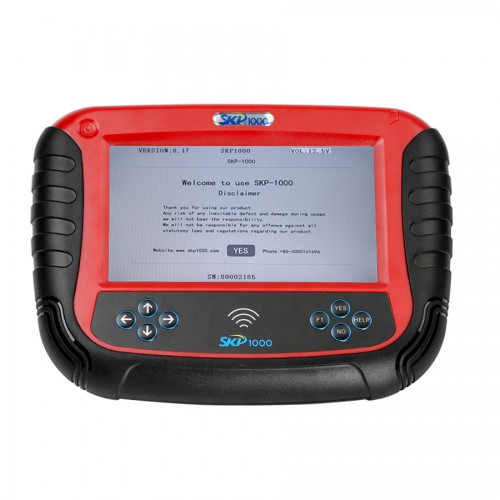

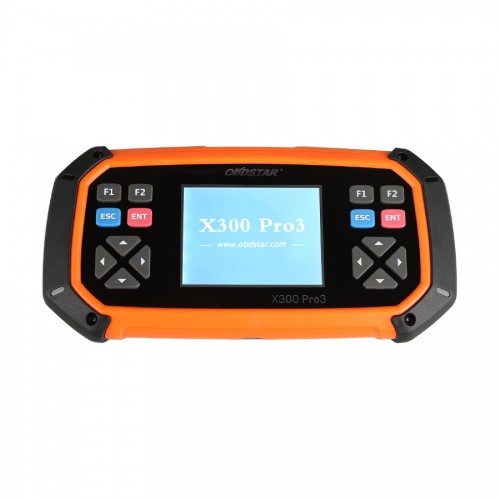

Lonsdor K518ISE vs. SKP1000 vs. OBDSTAR X300 Pro3 vs. SKP900

Product Name	Lonsdor K518ISE	SKP1000	OBDSTAR X300 Pro3	SKP900
Appearance
Item.No	SK213	USSK223	USHKSK196	USSK155
Price	$1,299	$499	$499	$429
Manufacturer	Lonsdor	Lonsdor	OBDSTAR	SuperOBD
Official Website	http://en.lonsdor.com	http://www.gpobd.com/	http://www.obdstar.com	http://superobd.com/
Update Method	update online	Lifetime free update software and firmware	update online	update online
Vehicle Coverage	has a wide range of vehicle coverage, incl. the luxury cars i.e BMW, Volvo, Ferrari, Bentley, Lamborghini as well as Volkswagen 4th 5th IMMO,Toyota/Lexus smart key all key lost via OBD etc.	nearly the same vehicle coverage as SuperOBD skp900	Obdstar x300 vehicle list Find the function you want,and download the vehicle list pdf to check	Support almost all vehicles in the world
Functions	OBD mileage adjustment, remote controller, oil/service reset, ETC, EPB, EEPROM chip read.(BMW FEM module programming)	Special function:OBD mileage adjustment, remote controller, oil/service reset, ETC, EPB, EEPROM chip read.	X-300 pro3 Key Master will covers Skp-900, OBDSTAR X100 Pro and X300 Pro function, which can support Immobilizer, Odometer Adjust. EEprom/PIC, OBDII, EPB, Oil/Service reset and Battery Matching...	Key programming,read pin code

Lonsdor K518ISE Customers Reviews:

Customer 1:
So far I have tried on four vehicles, tried on a h system Toyota failed completely to talk to car, tried on 2007 dodge ram would not talk
to it either, tried on bmw 2008 cas3++ would talk to car but canot read isn id.woks beutif on nisn prox. I also used it on 2018 bmw x5
it lost keys it did talk to car givin key positions. car too new, no key available walked away.
Customer 2:
A must have! At the moment it is the best handheld cloner, what you can get. With the JMD key expansion it can save you with ease when you have to deal with VWs - even in AKL situations. It is not a wonder weapon, in practice it needs time for calculations (some times 45 mins), but in the meantime you can cut the key, aso. Never tried with G-chips, so I can just tell ya that it is said to be working. Has built-in batteries, and you can always charge it from your car - ideal tool to take with you. The special transponders are cheap enough to save you a lot of money compared to the RW4, and the main unit costs only $420, the JMD Key box around $250, and the G-chip authorization (if not included) $80, always with free shiping.

Customer 3:I have used Lonsdor to add key for BMW 525 2208 cas 3 by obd, it also can do cas 3+ by obd en cas 4 by eeprom.

Lonsodr K518 Programmer FAQs:

Q1: Will it read pin code on US sold Hyundai and kia smart system?
A1: K518 can work on Hyundai and kia smart system with 47, 8A chip, for 46 chip, you have to collect the copy password firstly then to calculate the pin code.

Q2:2017 Ford Escape smart key
A2: 2017 Ford Escape smart key works on 49 chip.

Q3:Does Lonsdor K518 support BYD G3 2011 all key lost?
A3:Yes,it work on BYD G3 2011 all key lost.BYD is supposed to work with 16-bit activation code, if you need to change IK box, please ensure you have 15-bit repair code at the same time

Lonsdor K518 Customers Feedback:
Newest Feedbacks:
Audi a3 MQB limousine year 2015 make dealer key and add key "OK".Menu: VW>Immo4>MQB-35xx(mainland/ vdo)
I tried first with vvdi2 it fails.. so i tried with lonsdor, without any peroblem !
Mitsubishi space wagon 2003, precoded id61 and programmed key ok.
Corsa E (2016) read PIN (BCM) = OK
VW Amarok 2016 add key ok and backup eeprom
FIAT 500 2008 Read Pin code and preapre remtote key than program. ALL FINE
I have start loving this toy when i bought it was working 20% ok 80% not Now it is 95 - 5. Today megane 3 year 2009 keyless key made job in 2minutes
Porche Panamera 2010 km adjust obd job done
hyunday i20 2015 year
read pin ok
add key ok
Citroën c5 2008 read pin add key ok
307 Kline read pin fail / add key ok
206 kline all key lost read pin ok about 3sec
opel Zafira b read pin add key
Touran 2006 learn key and remote ok
Zafira B, read pin and add key, - Success (note, this failed under Zafira B in menu, but i chose type 3 from by system for both pin read and program and works fine)
Peugeot 607 2006 abrites won't connect with BSI to read pin and key learning too .
Lonsdor read pin and program key 2 min .
Renault Fluence 2015 keyless go works excelent,in fact,zed full asks for pin and Lonsdor doesn't.The key works ok in central module and keyless go,5 min job.
Suzuki Swift 2015-> (pcf7961)
all key lost
Program without pin - OK (2min)
ford focus 2006 year
add key (all key lost) work all ok
============================================

13 Jaguar XJ: smart key programing in 2 mins
'14 Jaguar XK: chanceless (only Abritas knows this car today)
'13 Megane III Ph2: no pin reading, asks for pin to be able to do programming.
'11 Clio III Ph2 Grand Tour: Nothing. No communication.
2 pcs Astra H: No pin; 4 pcs Astra G: No pin; and a Corsa C: no pin.
'17 Mustang Shelby GT350: It was harder to get out the rubber pad from the cup holder, than the programing itself. Smart key added in 1 min.
'04 Clio II Ph2 30 sec without pin
'10 Megane III Ph1 RS under one minute with hands free cards
'08 Dodge RAM 1500: it toke 5 mins to catch that it has to be programed as it were younger than 2012. With that setting under a minute with pin extraction.
'07 E60 Beemer: The customer had a chinese folding key with 315 MHz and he paid for just the trying - we told him that it won't work - the only thing was that we had to re-activate the original keys. I think it can be done when you use the factory diamond 868 MHz keys.
'13 Dodge Charger smart key OK
'15 Ford Edge remote key OK, under 2 mins.
'04 & '06 Megane II: under a minute, normal cards
'15 Dodge Challenger: under 2 mins OK
e90 2007 868Mhz Europe by obd ok
ssangyong korando 2011 diesel all keys lost : programming key with chip 4D - OK
Peugeot 508 2013 pin extraction & programing 0k
Toyota corolla 2010 all key lost "G" succses
Toyota rav4 2006 proxy ok, auris 2015 remote ok, bmw x5 2008 cas3 ok,
Peugeot RCZ 2016 pin OK programme key ok
Megane 2 2007 key card succesfully done. 10 seconds done
read pincode tipe2 PSA done, bsi J.C
read pincode tipe 1 PSA done, bsi VALEO CAN
Peugeot 208 2011 : pin ok programme seconde key ok
Chevrolet captiva 2012 : programme remote ok
BMW X6 2008 cas3 868 mhz succsess by OBD 2 min
Toyota hilux 2018 H add key ok
Nissan murano 2007 old pincode program ok
skoda rapid 2013 24c64 add key - ok. odo -ok
ford focus 2 2007 odo - ok
Astra H 2005 all key lost ok
Pin reader comminication error
counted the pin from the dashboard
Prado 2014 (euro) All key lost G-chip 2 min done. Programmed remote Ok

corolla 2008 all key lost ==>> very good
2012 VW T5 Kombi immo4 NEC24C64 tp23 chip job well done in 5 minutes, all keys lost. You press eeprom back up, then go to make dealer key, place tp23 chip in the machine slot and then learn key. Done! Actually, this car need to put in service mode wrrite eprom back and then add key, with the above procedure u can make only car with can with valid key
BMW f11 2015, keys done (have working key)
BMW f25 fem, keys done (have working key)
Hyundai I10 2012 Europe pin read OK! Key Added OK!!!!!! NO BAD....


Not work:
- Toyota h system not work
- bmw 2008 cas3++ would talk to car but cannot read isn id.

More Lonsdor K518 vehicle models feedback:Lonsdor K518 Newest Feedback on work and not work

Lonsdor K518ISE Technical Parameter:

RFID: Support 125KHz ASK,134.2KHz FSK
CPU: ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display: 1024*600,7 inch IPS capacitive
Memory: eMMC 8G RAM 1G
Battery Capacity: 3800 mAh
Power Supply: DC12V 1A
Power port: 5.5x2.1mm
OBD Port: OBD-II
Comm Port: USB 2.0-type B
OBDII Protocols: ISO15765,ISO9141,ISO14230,SAEJ1850,VW TP1.6 TP2.0 etc
KPROG: Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance: 10m

Lonsdor K518ISE Package List:

1* Portable Bag(big)
1*Main Host
1*Power Adaptor
1*USB Cable
1*Packing Bundle
1*OBD Test Cable
1*Extra Connector
1*User Manual
1*Portable Bag(small)
1*KPROG Adapter
1*RN-01 Board
1*E-01 Board
1*FS-01 Board
1*20P Cable
5*Backup Pin
1*Certificate
4pc x smart key emulator (optional)

Tags: Lonsdor K518 , Lonsdor K518ISE , K518ISE Key Programmer ,
