X431 5C Pro Full System Automotive Diagnostic Tool is a new diagnostic tool release by Launch tech. It support one click online update, support full range car model from USA, European and Asian. x431 5C Pro is perfect tool for car diagnose. This is full set version with all connectors and cables.

1. X431 5C Pro package lighter than x431 V Pro, but has same functions and easy to carry.

2. Oversea full configuration contains total 59 softwares,See attached configuration Software List, and compare with others, this one still add India and Malaysia cars

3. x431 5C Pro support one year warranty and one year free update online. (After One Year, It Will Cost 680usd Per Year)

4. x431 5C Pro support multi-languages: English, Spanish, Arabic, French, Korean, Japanese, German, Russian

5. X431 5C Pro has more ecomonic price than x431 V, lower price and same function, provide more value for customer.
6. With special function such as BMW idle study, BMW Injection rate adjustment, BMW battery replacement, Nissan matching key.
7.No Software download IP limitation: Oversea download and update available

Notice:
1. Dealer Code: 86A or 86K
2. When you receive the device, you can log on Launch DBSCar Website to register CC account and download software you want

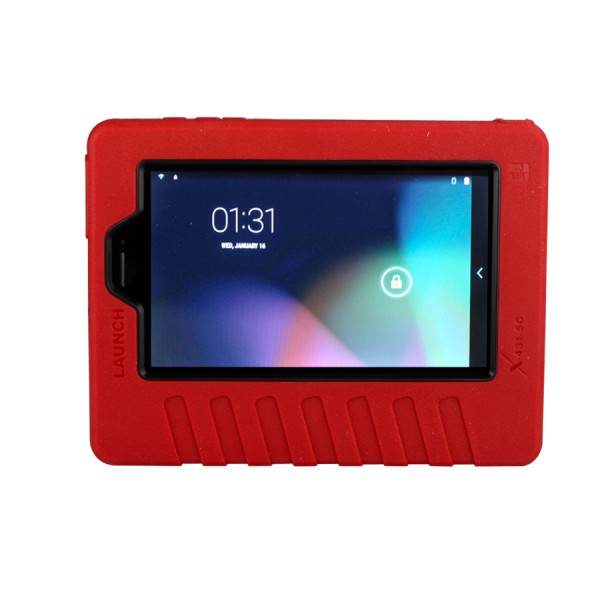

LAUNCH x431 5C Pro Description:

Launch x431 5C Pro with Bluetooth/Wifi based on Android system, is a new car multifunction diagnostic device developed by Launch Tech for internet application.
X431 5C Pro realize same function as x431 V, but deduct unnecessary connector and cables, make device lighter and easier for carry.
X431 5C Pro completely substitutes X431 IV and x431 Diagun III.

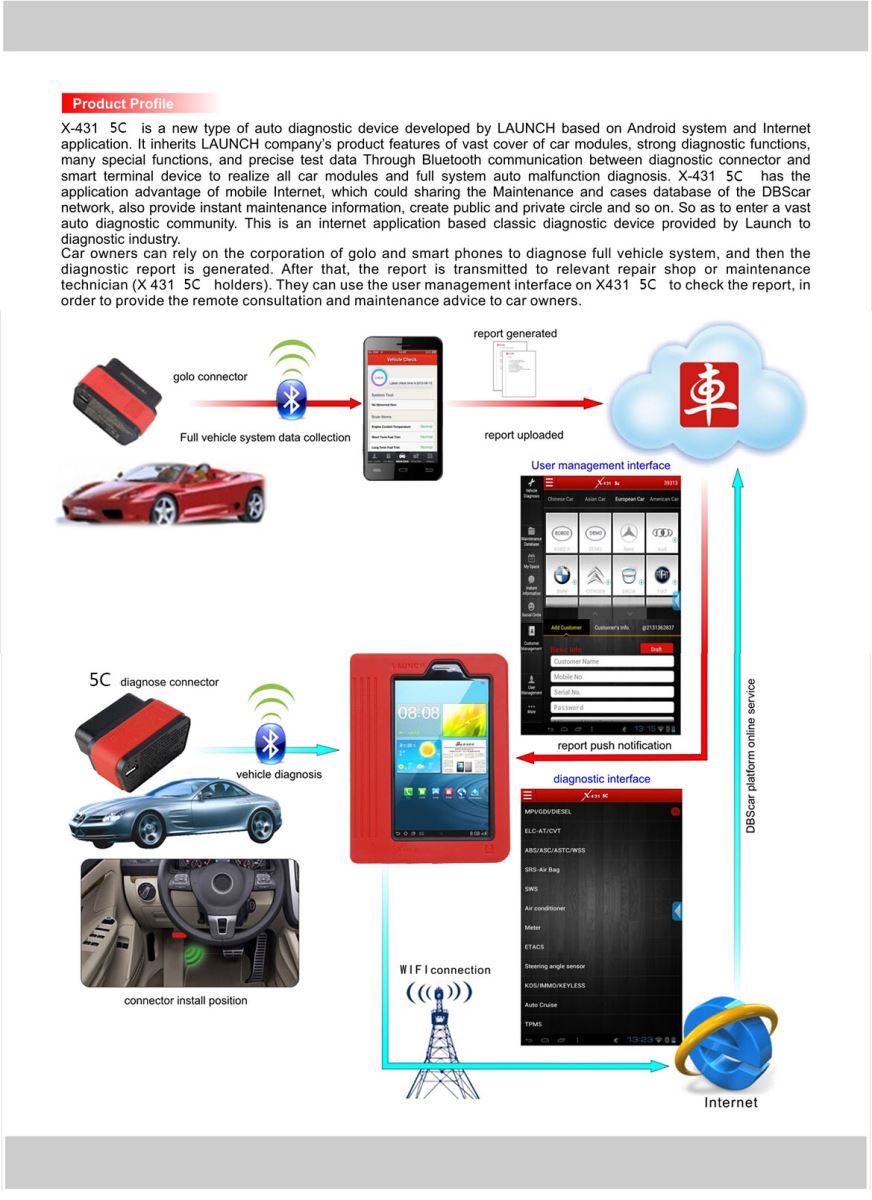

x431 5C Pro achieves the full car model and full system fault diagnosis through the bluetoooth communication between DBSCar connector and intelligent mobile terminal.
x431 5C Pro is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.

Panel PC: High configuration of hardware , fast running speed

Capacitor Screen: Multi-touch capacitor screen, more smooth operation

WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth

Portable: Reasonable PDA design, small size for easy carry

Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier

Wifi communication: Support WIFI network

Android System: Users can install and Android software

Numerous Additional Functions: Photo, video, multimedia, other software application,etc.

One Click Update: You do not have to download software to memory card anymore, can do one click update directly through your machine.

Operating System: Android

CPU: Dual core 1GHz

Battery: 3000mh, rechargeable polymer lithium battery

Standby time: it is subject to the using environment. Generally it can keep working for 4 hours.

Extension memory card: 32G Micro SD(TF) card supported

Memory: 512MB

Storage capacity: 2GB

LCD: 7.0 inch

LCD resolution: 1024X600

Touch screen: 5 points capacitive touch screen

Cameras: 2 mega rear and 0.3 mega front

Wi-Fi: supported

Bluetooth: supported

Working temperature: -10°C ~ 55°C (14°F to 131°F)

Storage temperature: -20°C ~ 70°C (-4°F to 158°F)

Working voltage: 9 ~15V

Average working current: about 35mA

Standby current: about 25mA

Working temperature: -20 to 55°C (-4°F to 131°F)

Storage temperature: -30 to 70°C (-22°F to 158°F)

Storage humidity: <80%

Working humidity: <60%

Net weight: about 26g

Language: English / Chinese

Bluetooth Distance: 10M (without obstacle)

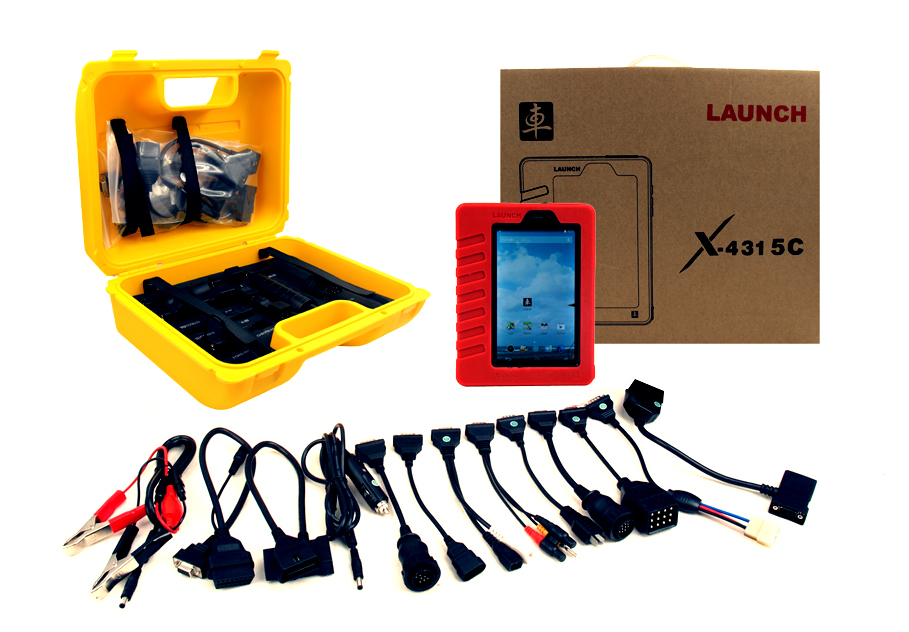

X-431 5C Pro Pad

Password Envelope

X-431 5C Pro Protection Sleeve

DBScar Diagnostic Connector

OBD II Extension Cable

Cigarette Lighter Cable

Power Adaptor

USB Data Cable

Non-16pin Connector
