Large Image :Xprog-M V5.55 ECU Programmer Newest Xprog M

Xprog-M V5.55 ECU Programmer Newest Xprog M

XPROG-M has updated to V5.55, and now supports more than 450 units (serial EEPROM`s, Microcontrollers (MCU), Electronics Control Units (ECU), DashBoards, Immobilizers, Calculator, and others).

1.XPROG-M has updated to V5.55
2.Supports more than 450 units (serial EEPROM`s, Microcontrollers (MCU), Electronics Control Units (ECU), DashBoards, Immobilizers, Calculator, and others).

Latest Version Xprog-M V5.55 ECU Programmer Newest Xprog M

Supported Language: English Only
Software Version: V5.55

Attention for Xprog-Box 5.55

1. Close the Anti-Virus Software or the Firewall on Computer, Or It Will Broke the Software.

2. Turn Off Internet, or It Will Damage the hardware.

3. Can Only Use Our Xprog Software, Make Sure Your PC is only installed Our Software V5.55.

4. Never Try to Update, Otherwise,the Hardware Will Be Burned or Damaged.

We Will Not Refund or Exchange or Repair If You Do Not Follow Those Advice Above. It Means You Accept Those Conditions As Long As You Buy it On Our Website.

Xprog V5.55 Introduction

The XPROG-box project is a continuation of the project XPROG and now supports more than 450 units (serial EEPROM's, Microcontrollers (MCU), Electronics Control Units (ECU), DashBoards, Immobilizers, Calculators and others).

XPROG-box hardware(Aluminium enclosure) .

CD with XPROG-box software (V5.55)

Basic software authorizations and programming adapters set.

USB Cable.

Product Code Description

AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 BMW EWS3 authorization

AUTH-0009 ATmega family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 MB ZGS001 authorization

AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).

AUTH-0022

XPROG hardware registration

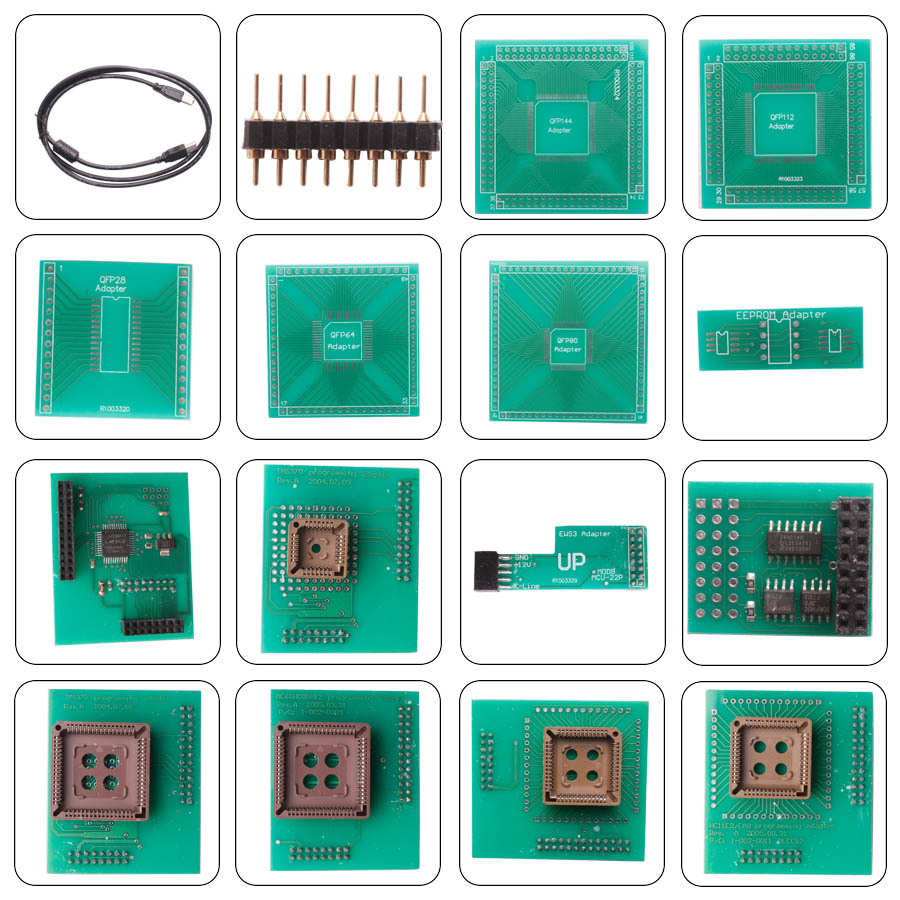

ADAPTERS

Product Code Description

ADP-0001 TMS370 PLCC28 programming adapter

ADP-0002 TMS370 PLCC44 programming adapter

ADP-0003 TMS370 PLCC68 programming adapter

ADP-0004 Motorola HC05B/X PLCC52 programming adapter

ADP-0005 Motorola HC05B/X QFP64 programming adapter

ADP-0006 ST M35080 in-circuit programming adapter

ADP-0008 TMS374 family in-circuit programming adapter

ADP-0009 MC68HC05V12 programming adapter

ADP-0010 TMS374 on-board programming adapter

ADP-0011 HC11EA9/E9 programming adapter

ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

Rev.C+

Processor: INTEL Pentium 60MHz or faster (depends on operating system)

Memory (RAM): 64MB (depends on operating system)

Hard drive: 20MB free space

Communication: One free physical COM or USB port

Operating system: Microsoft Windows NT/ME/2000/XP/VISTA/WIN7

FAQ:

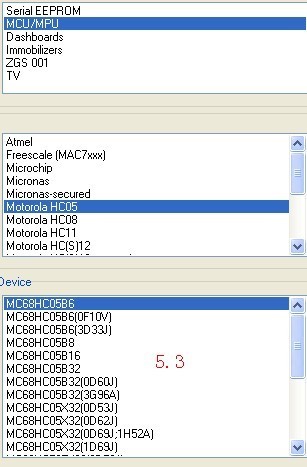

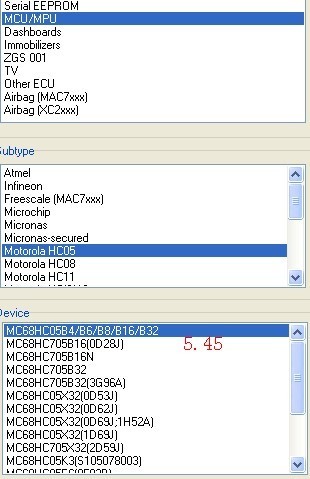

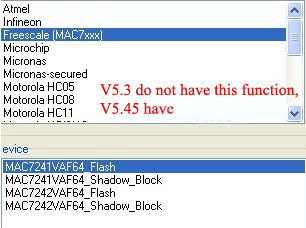

Q: What's the difference between xprog-m V5.55 and xprog-m V5.3?
A: V5.55 xprog-m added more function, such as:

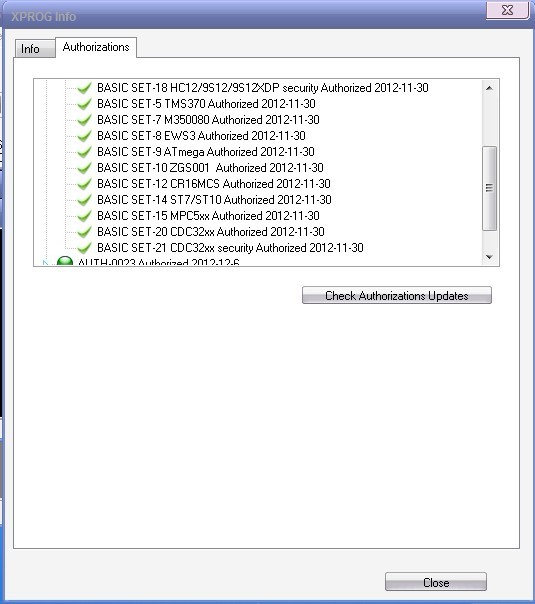

AUTH-0023

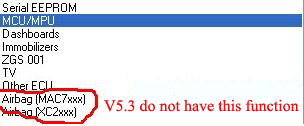

AUTH-0023-1 MAC7xxx

AUTH-0023-2 XC23xx 65

AUTH-0024-1 MC9S12Cxx

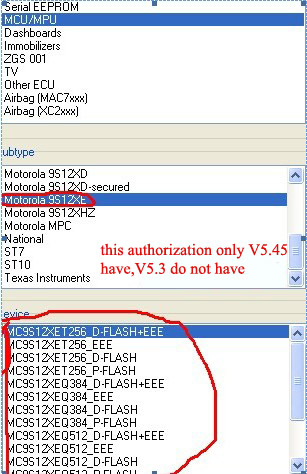

AUTH-0024-2 MC9S12XE

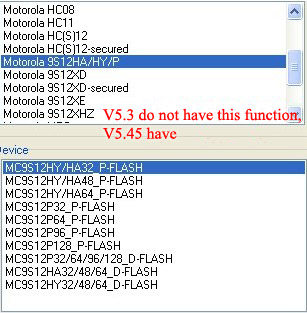

AUTH-0024-4 MC9S12HA/HY

Please check the detailed function display:

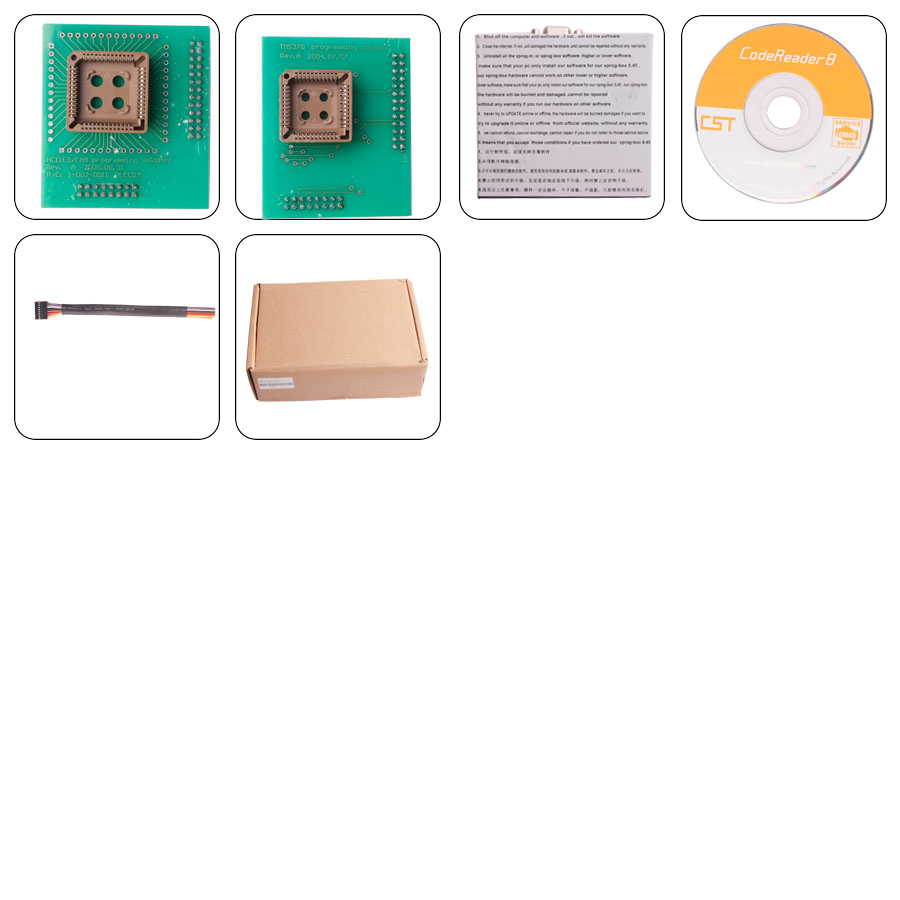

Package List:
