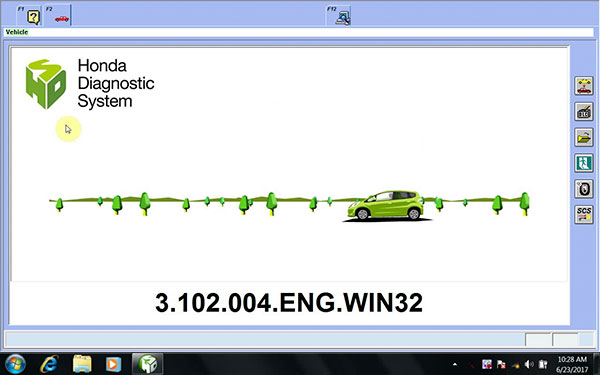

HDS HIM Diagnsotic System for Honda V3.102.004

Advantage of new HDS HIM tool:

1. Newest software version: 3.012.004 software need active before using, we provide free active service. If you change computer to install software,
it will need reactive it.
2. Support Honda Hybird Battery vehicle test.

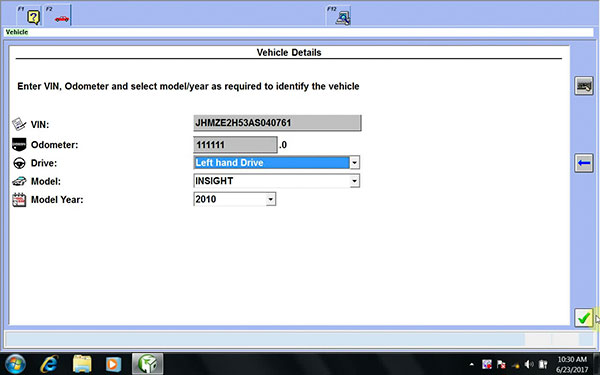

3. Support VIN reader and IMMO.
4. Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc.
5. It supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.

Honda HDS HIM Function:

1. Functions Supported by Honda/Acura Protocols

1) Reading and decoding fault codes from control blocks memory
2) Deleting fault codes
3) Displays system current parameters in digital form
4) Displays system? current parameters in graphical form
5) Combined displaying of data
6) Management of executive devices
7) Logs keeping - writing and keeping of digital parameters in memory
8) Special functions - changing of permissible settings of blocks, programming etc.

2. Functions Supported by OBD-II Protocols

1) Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once);
2) Mode $02 - Displays parameters of freeze frame;
3) Mode $03 - Reading and decoding of fault codes from control block? memory;
4) Mode $04 - Deleting of fault codes (memory clearing);
5) Mode $05 - Displays results of oxygen sensors;
6) Mode $06 - Displays results of changeably controlled systems and components;
7) Mode $07 - Displays results of constantly controlled systems and components;
8) Mode $08 - Management of executive devices;
9) Mode $09 - Displays car identification info.






Package includes:

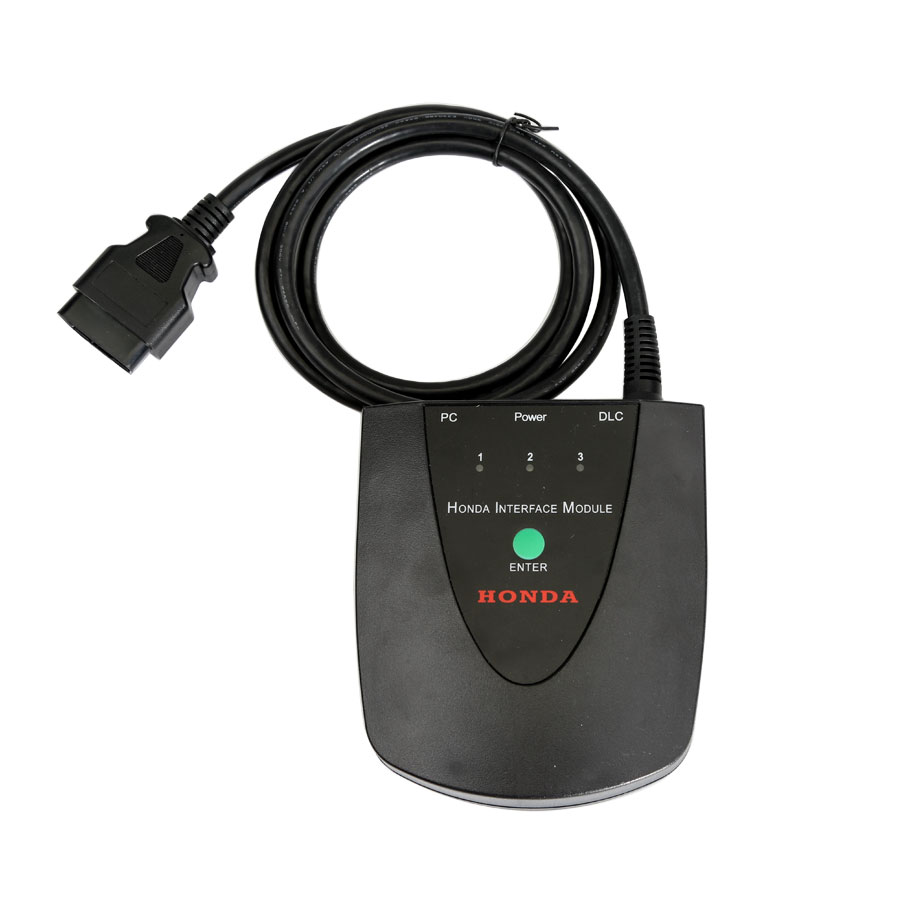

1pc x HIM with OBD II Cable
1pc x 3 Pin Cable
1pc x RS232 Cable
2pc x Self test Adapter
1pc x AC Adapter
