Tech2 Diagnostic Scan Tool For GM SAAB OPEL SUZUKI Holden ISUZU With 32 MB Card And TIS2000 Software

Tech 2 for GM is Professional GM Diagnostic Scan Tool. Tech2 scanner supports all GM systems from 1992 to 2011.Tech2 has powerful function which make it is first choose by most GM vehicles repairer.

Descriptions of Tech2 Diagnostic Scan Tool For GM SAAB OPEL SUZUKI Holden ISUZU With 32 MB Card And TIS2000 Software

Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems. With TIS2000, you can do programming for GM cars till year 2007.

Tech2 Diagnostic Scan Tool For GM SAAB OPEL SUZUKI Holden ISUZU With 32 MB Card And TIS2000 Software

Top 5 Reasons to Get Tech2 for GM with Carton Package:

1. This Version TECH2 for GM with Carton Package, Shipping Weight Only 3.15KG, Save Lots of Shipping Cost Also Make Your Customs Clearance Much Easier

2. Multi-langauge: English, Italian, French, Portuguese, German, Spainish, Korean, Japanese, Thai, Chinese
3. Update: via 32MB Software Card, when there is newer version, you can just buy new card to update
4. Support Car Models: GM, SAAB, Opel, Suzuki, Isuzu, Holden
5. Year Coverage of Diagnosis: From 1992 to 2013, With Help of Tis2000 Software, It Can Do Programming for Cars Before Year 2007

Notice:
1. It Can Only Support GM Cars, No Trucks
2. One Device Has One 32MB Card As Default, If You Want More, Please Buy Additional 32MB Memory Card

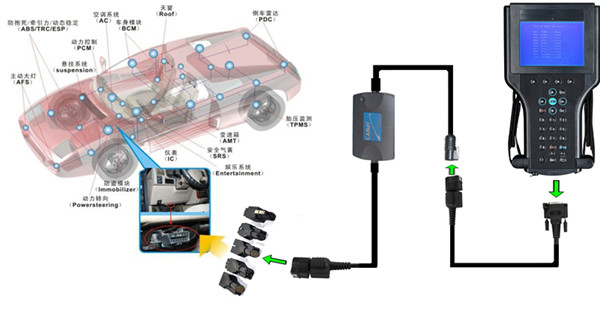

Tech2 for GM Connection With Candi Interface:

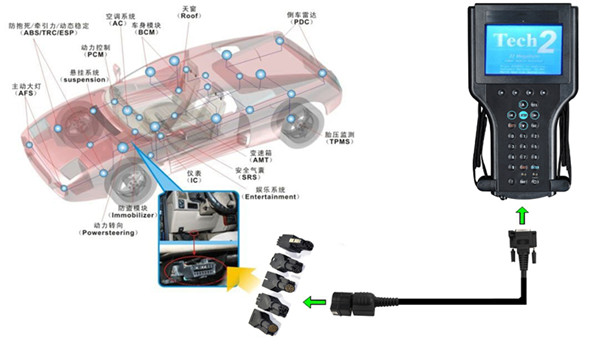

Tech2 for GM Connection Without Candi Interface:

Software Version:
GM English 32.007
SAAB English 148
OPEL English 180 (Support Cars from 1997-2014)
Holden English 149(Support Cars from 1999-2013)
SUZUKI English 01.210.020
ISUZU English K line 11.53
CAN line 107.021

GM TECH2 Features:

1) GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.

2) Support for on-board diagnostics on all GM systems 1992 thru current year.

3) Removable hardware modules provide insurance against scan tool obsolescence.

4) Large, easy-to-read backlit screen.

5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.

6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.

7) Ability to view the status of vehicle diagnostic tests as they run.

8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

Vetronix Tech 2 Specifications

1) Microprocessor: 32 bit,16 MHz

2) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.

3) Communications: Integral RS232 communication port.

4) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

GM Vehicles Utilize the CAN Interface

05 Buick Allure (3.6L)

05 Buick LaCrosse (3.6L)

05 Buick Rainier (5.3L)

04-05 Buick Rendezvous (3.6L)

04-05 Cadillac CTS (3.6L)

04-05 Cadillac SRX (3.6L / 4.6L)

04-05 Cadillac XLR (4.6L)

05 Cadillac STS (3.6L / 4.6L)

05 Chevrolet Cobalt (2.2L)

05 Chevrolet Corvette (6.0L)

05 Chevrolet Equinox (3.4L)

05 Chevrolet TrailBlazer (5.3L)

05 Chevrolet SSR (6.0L)

04 Chevrolet Malibu (Body/Chassis only)

05 Chevrolet Malibu (3.5L)

05 GMC Envoy (5.3L)

05 Pontiac G6 (3.5L)

05 Pontiac GTO (6.0L)

05 Pontiac Pursuit (2.2L)

Package List:

Tech-2 Flash Tester

32 MB PCMCIA Card with GM OE Applications

CAN diagnostic interface module(Candi) and Instruction Sheet Download (199.2 kb)

RS232 Cable and User`s Manual

RS232-DB9 Adapter

DLC Cable, DLC Loopback Adapter

12V Cigarette Lighter Power Cable

SAE 16/19 Adapter

NAO 12/19 Adapter

Battery Power Cable

TIS 2000 CD

Difference Between GM tech 2 Serials and GM MDI:

Content	GM Tech 2 SP23, SP23-B, SP23-B3, SP23-C	GM MDI SP163
Language	GM-English, German, Spanish , Japanese, French, Thai , Portuguese, Korean SAAB-English OPEL-English, Italian , German,Spanish HOLDEN-English SUZUKI-English ISUZU-English	Multi-language: English, French, German, Japanese, Italian and so on. Total 30 languages to choose.
Update	Via 32MB Software Card	can not update
Activation	no need active	yes
Advantage	cannot plug original software card, but can support original program	can support software from original factory
OS requirement	no need connect to the PC	Win XP only
Internet connection	no need connect to the PC	can not connect to the internet then install the software, because once connect internet, it will remind you update the software
Support Car Model	Cannot support truck, only for cars, Support all GM systems 1992 thru current year. such as GM/ SAAB/ OPEL/ SUZUKI/ ISUZU/HOLDEN	MDI can test all GM car from 1990-2012 year.
Support programing	support reprogramming, but need to use with TIS2000 together	support offline program,such as chevrolet,opel, but not for all cars
