Note:Support cars with OBDII Port after 2005

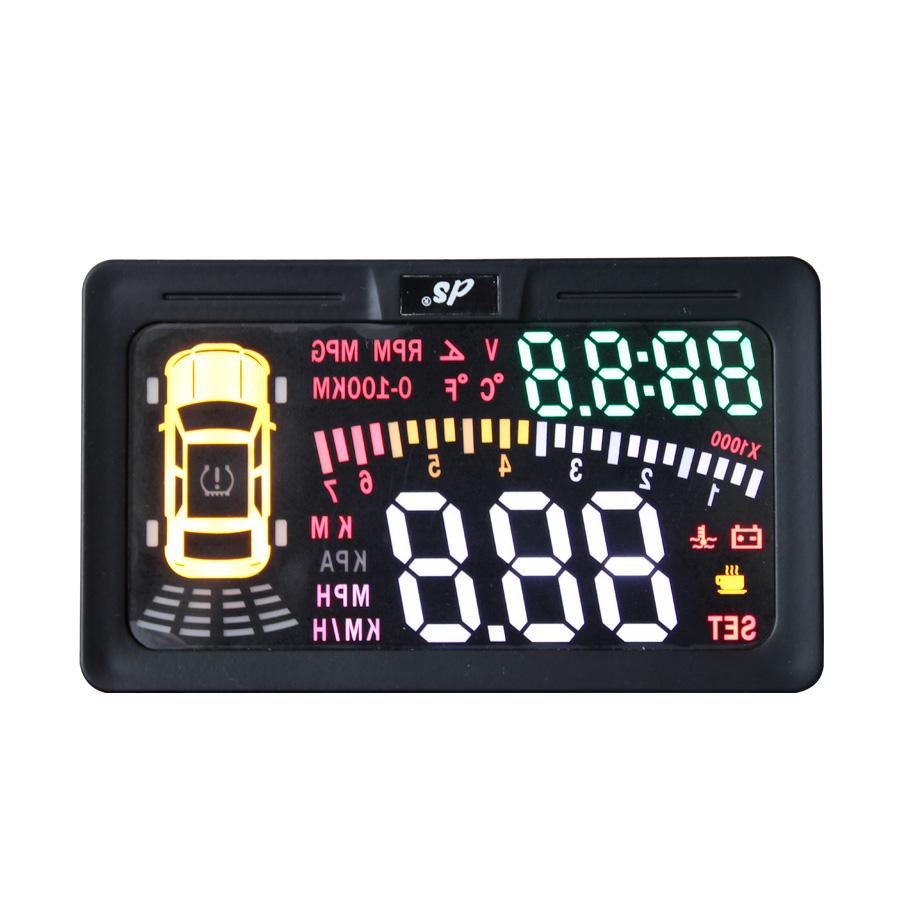

Features of TSA OBD II Heads Up Display (HUD) DS-300SE

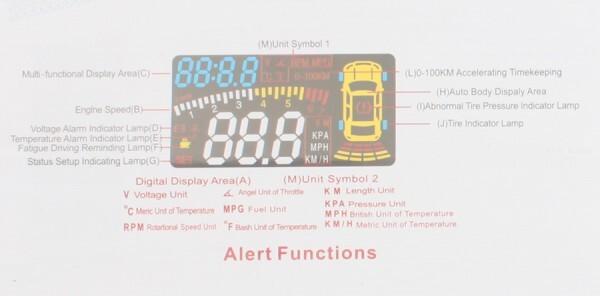

HUD Features and Functions:

This product is an OBDII interface multifunctional HUD, with simple installation which you don't need to break the car's original circuits to use, just plug and play.

Metric to Imperial conversion, compatible for different standard vehicles.

Comprehensive information, like CLOCK, WATER TEMPERATURE, VOLTAGE, THROTTLE ANGLE, ROTATION SPEED, FUEL CONSUPTION. All numbers displayed, convenient and direct.

All numbers displayed, convenient and direct.

Smart alert, with sound and lights for users to choose.

Gear shift reminding function for new drivers (suitable for hand shift and auto shift automobiles)

Screen brightness automatically changes for different environment.

Throttle angle display, knowing the throttle angle anytime.

Automatic voltage display after starting engine.

Automatic turn-on after starting engine and turn-off after shutting down engine.

Digital Clock display.

Real-time MPG display.

Seconds counting for 0-100 KM acceleration.

Fatigue driving reminder.

Overspeed alarm.

Low battery voltage alert.

High water temperature alarm.

Single driving time, mileage and average speed display (after shutting down engine)

Error code alarm(after ignition, when a failure happens, the yellow car on the right side will flash for 10 seconds)

Compatible Port/Slot: OBD II/ OBD2

For most vehicles made in 2005 or after, they are able to connect with OBD II Plug (socket) and Play. As long as your car has OBD II socket and follow OBDII paramaters as shown below,

it's compatible with your vehicle. However, we could not guarantee that it fits all the modles in the compatibility list.

Two factors will show if your vehicle is definitely OBD II equipped:

1)There will be a note on a sticker or nameplate under the hood: "OBD II compliant"

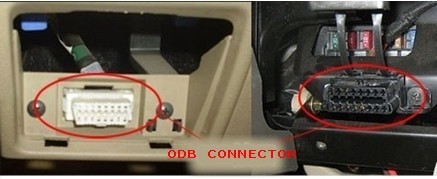

2) There will be an OBD II connector as shown below

Specification:

Length 112 MM

Width 66 MM

Height 15.5 MM

Operating Voltage: OBD II 9 锝?16 V

Maximum Operating Current 240 MA

Operating Current 90 MA

Operating Temperature -40 °C 锝?85 °C

Standby Current 锛?10MA

Speed Range 0 锝?158 miles

Rpm Range 800 锝?7,000

Water Temperature Warning more than 110 °C

Voltage Range Warning 锛?11 V

Accessories within Package HUD device, Reflective film, OBDII cable, User manual, Velcro hook-and-loop fastener
