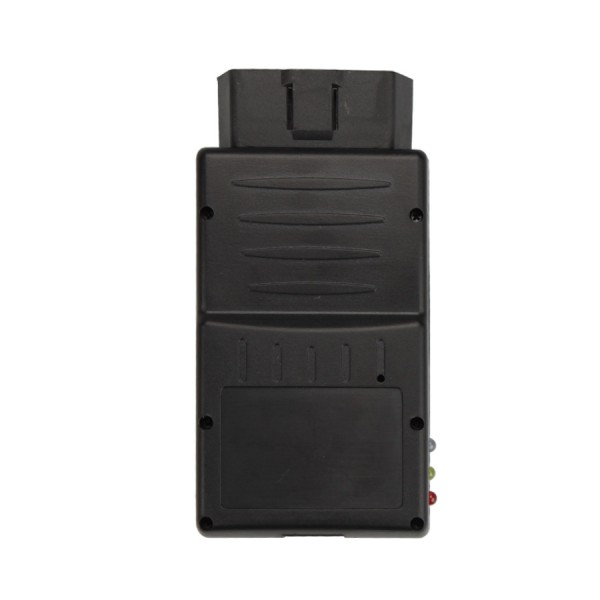

DA-Dongle J2534 SDD V139 VCI Device For Jaguar & Land Rover

DA-Dongle J2534 for Jaguar & Land Rover is simple and easy to use, designed as a replacement pass-through vehicle communications device, which covers CAN, & ISO9141 vehicle networks.

Descriptions of DA-Dongle J2534 SDD V139 VCI Device For Jaguar & Land Rover

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover is designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR SDD diagnostic applications.

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles

JLR SDD Version: V139

Top 5 Reasons To Get DA-Dongle J2534:

1. The DA-Dongle J2534 device is simple and easy to use

2. JLR Approved device, replacement for JLR SDD VCM

3. Covers CAN, & ISO9141 vehicle networks

4. 12ft USB cable as standard included

5. Easy to update for J2534 new functionality

Jaguar & Land Rover Vehicle Coverage:

JLR Vehicles	Supported?
Defender	Yes
Discovery /LR3/LR4	Yes
Range Rover Sport & New Range Rover Sport	Yes
Range Rover	Yes*
New Range Rover	Yes
Freelander /LR2	Yes
Evoque	Yes
XJ – X300/X308	No
XJ - X350	No
XJ - X351	Yes
XJS	No
XK – X100	No
XK - X150	Yes
XF	Yes
S-Type	No
X-Type	No
F-Type	Yes
(Yes) – Vehicle line fully supported: (Yes) - Vehicle line fully supported apart from viewing Data logger signals from both ECM and TCM modules simultaneously on 2006MY variants : (No) - Vehicle Line Not supported – supported by DAVINA J2534 or DA-ST512 vehicle interface

DA-Dongle J2534 Functions:

1. It will allow normal operation with the JLR SDD diagnostic tool,once the J2534 DLL files are loaded.

2. The DA-Dongle J2534 connects directly to the vehicle OBDII (diagnostic) connector and then to a laptop via a USB cable for use with SDD

3. Only SCP communications are not possible with this device

How to operate in J2534 mode?

1. Download the latest J2534 DLL software files from the Diagnostic Associates web site www.diagnostic-associates.com/download.htm and install these on the SDD laptop.

2. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).

3. Connect the 12ft USB cable to the J2534 device and the other end to the SDD laptop.

4. The red vehicle power (PWR) LED will illuminate to show that the device is powered.

5. During communication with the vehicle the status (STS) LED will flash green.

6. The device interacts with the SDD diagnostic tool in the same way as the existing VCM.

Package List:

1pc x DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles
