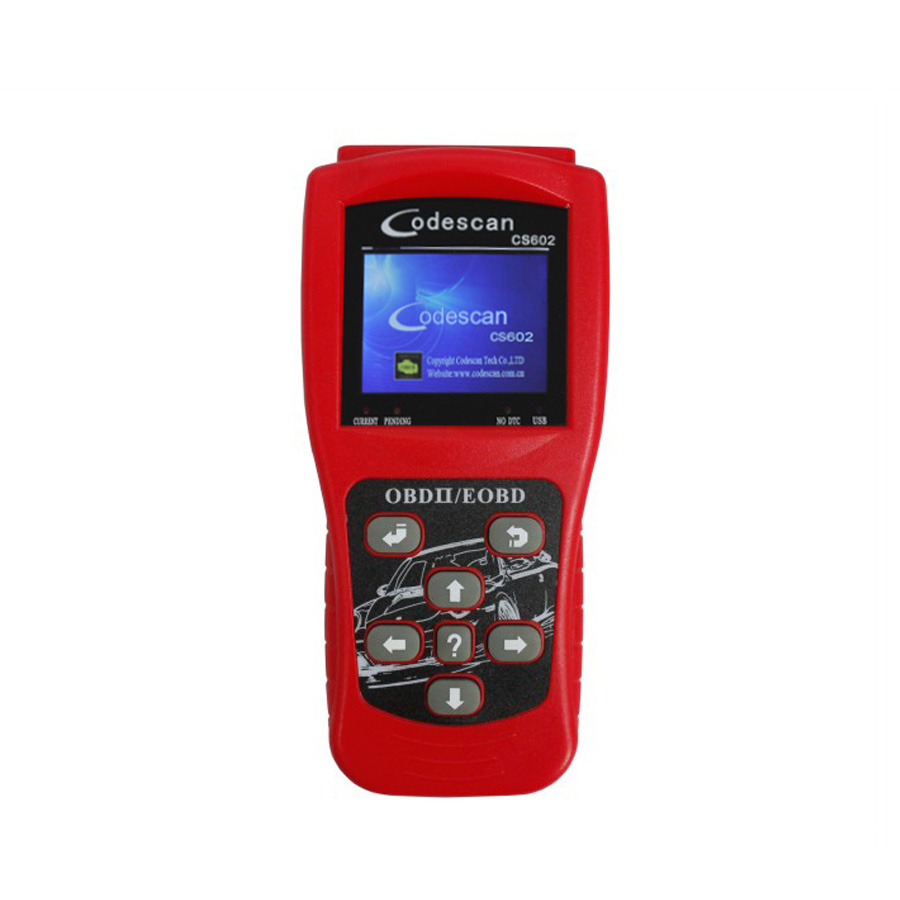

CS602 Codescan OBDII EOBD Scanner

CS602 Codescan Function list:

1. Retrieve and erase trouble codes;
2. View freeze frame data;
3. View live data with graph;
4. I/M Readiness test;
5. O2 sensor monitor test;
6. On board monitor test;
7. DTC lookup
8. Record and playback history data

CS602 Codescan Feature & Functions:

1. Works on all 1996 and later OBDII compliant US, European and Asian vehicles;
2. Support all 10 OBDII test modes, including the latest SOA mode;
3. Support diagnostic protocol including SAE J1850 PWM/VPW, ISO 9141-2, ISO 14230-4(KWP), ISO15765-4(11bit and 29bit CAN)
5. Uses 2.8' color LCD display;
6. Retrieves generic codes and manufacturer specific and resets monitors;
7. View freeze frame data;
8. View live PCM datastream;
9. Graphs live datastream;
10. Read live O2 sensors test data;
11. Read vehicle information(VIN, CID and CVN)
12. Record and playback history data;
13. Build in OBDII DTC lookup libray.

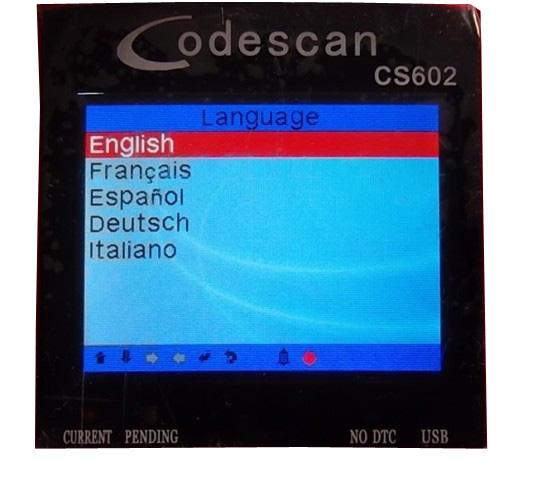

CS602 Color Screen Codescan OBDII EOBD Scanner language available:

English
français
español
Deutsch
italiano

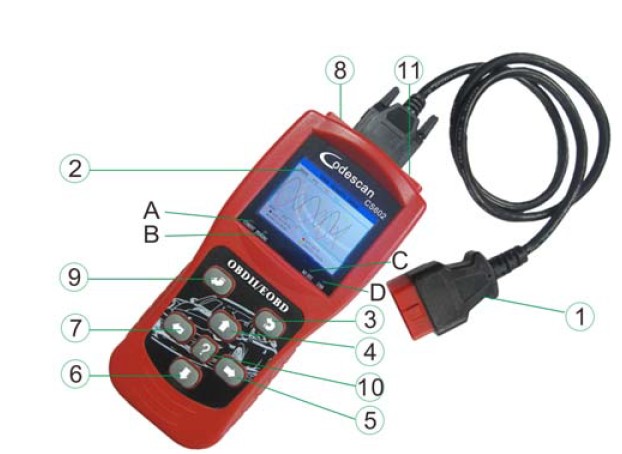

CS602 outline:

1. Cable with OBDII connector--Connect CS602 to the vehicle'data link connector;
2. LCD Display--Indicate test result;
3. Exit Button--Return to previous menu;
5/7 Right/Left Buttons--Move cursor right or left for selection;Or turn page up or down when more than one page is displayed;
4/6 Up/Down Buttons--Move cursor up or down for selection;
8. USB Port--Connect CS602 to computer for update online;
9. Enter Button--confirm a selection(or action) from a menu list.
10. Help Button--Show help information for user;
11. Power Port--Power supply of 12V.
A Red LED indicator lamp--confirmed DTC; When it displays"Confirmed DTC", the red indicator lamp will light on;
B Yellow LED indicator lamp--Pending DTC; When it not sure or unknown DTC, the yellow indicator lamp will light on;
C Green LED indicator lamp--No DTC; When they are no DTC, the green indicator lamp will light on;
D Blue LED indicator lamp--USB; Dispaly the status of usb communication when updating.

Specification:

1) Screen: 2.8” TFT 262K true color, 320*240 QVGA LCD display
2) Input voltage range: 8~32V
3) Operating current: <100mA@
4) Power consumption: <1.2W (Typical)
5) Operating temperature: 32°F~122°F / 0
6) Storage tempetature: -4°F~158°F / -20°C ~70°C @
7) Outline dimension: 4.7’*3.2’*1.0’ / 121*82*26 mm LWH
8) Weight : <17.6 oz (500g)

Vehicle coverage:
The CS602 is specially designed to work with all OBD II compliant vehicles, including Control Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all American, Asian and European vehicles.
A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label, which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate “OBD II Certified”. Additionally, Government regulations mandate that all OBD II compliant vehicles must have a “common” sixteen-pin Data Link Connector (DLC).
For the vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

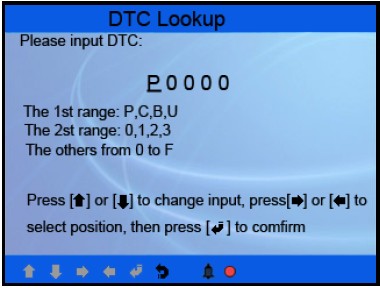

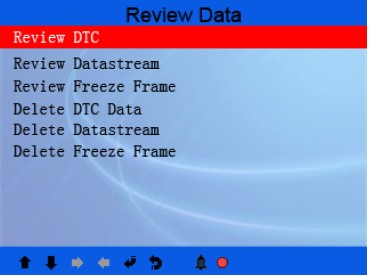

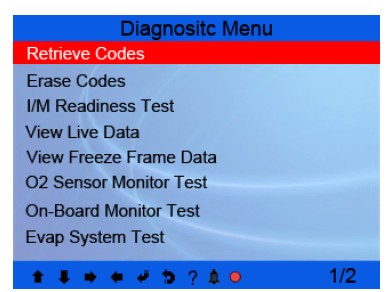

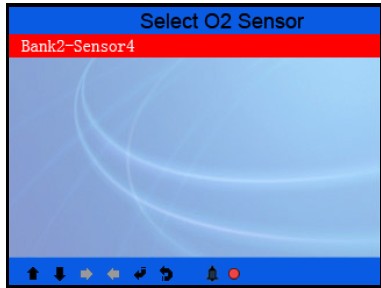

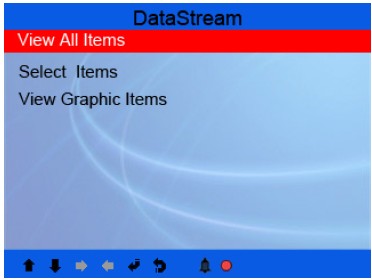

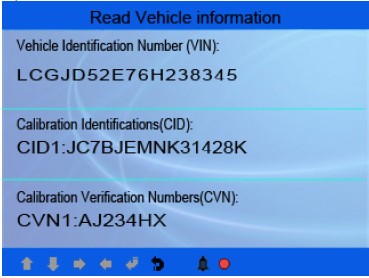

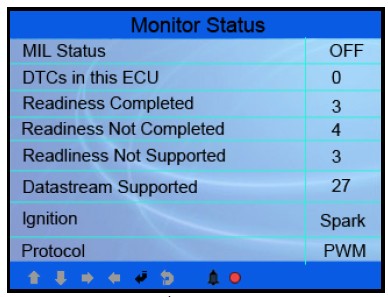

Screen Like This:







CS602 Codescan Package including:

1pc x CS602 Main Unit
1pc x USB Cable
1pc x OBD2 Cable
1pc x CD
