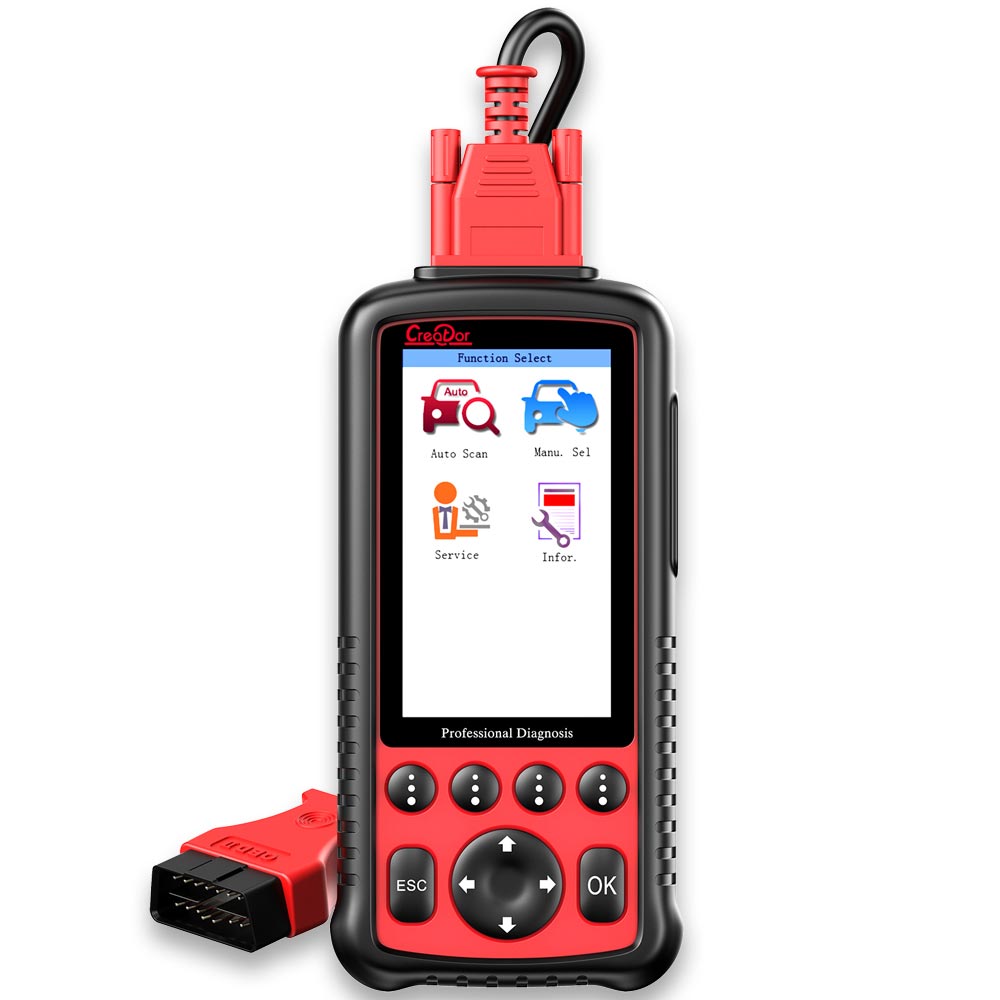

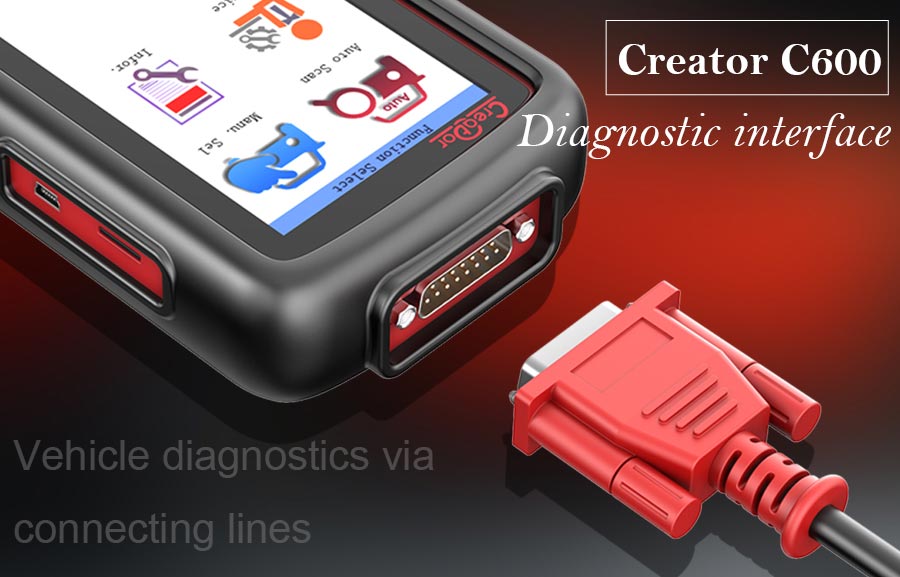

Creator C600 Professional Multi-System Scanner Car Diagnostic Tool Auto Diagnostic Scanner Code Reader

Creator C600 is a unique tool that delivers OE-level diagnostics for all the electronic systems of different car brands. It supports the most commonly required service features such as Oil Light/Service reset, Brake deactivation , Diesel particle filter and so on.



Creator C600 Highlights:

1. Supports 7 Languages: English, Japanese, German, French, Dutch, Chinese and Traditional Chinese
2. Upgrade: Free software upgrade within one year .
3. Available applications are BMW, Mercedes-Benz, Fiat, Volkswagen, Seat, Audi, Skoda and more.
4. ECU Information: Provides the retrieved ECU Information in detail
5. Selecting it opens and information screen.
6. Read Trouble Codes: display detailed information of DTC records retrieved from the vehicle control module Clear Trouble
7. Codes: erases DTC records and other data from the ECU
8. Read Data stream: retrieves and display living data and parameters from vehicle's ECU
9. Service Function: Oil Light, Brake Reset, Micro Filter Reset, Diesel Particulate Filter Reset, Brake Fluid etc, each vehicle have different service.

What you can do with Creator C600:

1. Read fault codes and view life data. Such as Engine, Transmission, ABS and Instrument Clusters.
2. Clear the fault code and turn off the error indicator.
3. In addition, you can use it for oil maintenance, brake reset, diesel particulate filters, etc.

Technical Services & Online Consultation

We can provide consulting services and repair assistance for common car failures. We combine industry knowledge to provide customers with high-quality products and maintenance solutions to benefit our customers. Professional, Efficiency and Quality is always our mission.



Creator C600 Software Support:

1. OBDII/EOBD
2. BMW/MINI
3. BENZ
4. VAG: VW, Audi, Skoda, Seat
5. Fiat, Alfa-Romeo, Lancia, Abarth

Note:
C600 will be shipped with OBDII software.You can choose one software of the four models, and you have to pay for other models later.

You can select OBDII/EOBD and one vehicle software,such as: OBDII + BMW / Mini,then if you want to add other software,you need to pay.

Creator C600 Software Function:

1. OBDII/EOBD Software Function:
● Works on all 2001 and later OBDII compliant PETROL European vehicles
● Works on all 2004 and later OBDII compliant DIESEL European vehicles
● Works on all 1996 and later OBDII compliant US and Asian vehicles
● Easily determines the cause of the “Check Engine Light ( MIL)”
● Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes
● Turns off Check Engine Light (MIL), clears codes and resets monitors
● Displays DTC definitions on unit screen
● Views freeze frame data
● Identifies pending codes
● Reads live PCM datastream
● Graph displays live PCM datastream
● Read I/M Readiness Status
● Displays live O2 sensor test data
● Performs modules present test
● Retrieves vehicle information (VIN, CIN and CVN)
● Supports CAN (Controller Area Network) and all other current OBD-II protocols

2. BMW/MINI Software Function

Basic Functions: read trouble codes, clear trouble codes, displays live data stream and vehicle version information, short test.
CBS Reset Functions: Engine oil reset , Microfilter, Brake reset, Vehicle check, Spark plugs, Brake fluid, Vehicle inspection, Exhaust emission inspection, DPF etc.
CBS Correct Functions: Engine oil reset , Microfilter, Brake reset, Vehicle check, Spark plugs, Brake fluid, Vehicle inspection, Exhaust emission inspection, DPF etc.
Special Functions: Delete Transport mode, Set Transport mode, Throttle reset.

3. BENZ Software Function

Basic Functions: VIN code recognition, Auto Scan all systems, read trouble codes, clear trouble codes, displays live data stream and vehicle version information.
Special Functions: Engine Oil Reset , EPS Reset, SAS Reset, ETS Match etc.

4. VW, Audi, SKODA, SEAT Software Function

Basic Functions: VIN code recognition, Auto Scan all systems, Read codes, Erase codes, ECU information, Read Data stream, Active test, Basic settings, Advanced ID match
Special Functions: Engine Oil Reset, EPB Reset, TPS Reset, SAS Reset

5. Fiat, Alfa-Romeo, Lancia, Abarth Software Function

Function:
Read codes, Erase codes, ECU information, Live data


Creator C600 Car Models List:

1. Supports BMW between 2001 to 2018
1 Series: 1'_E81/E81/E87/E88,1'_F20/F21
2 Series: 2'_F22/F23,2'_F45/F46,2'_F87
3 Series: 3'_Z3_E36,3'_E46,3'_E90/E91/E92/E93,
3'_F30/F31/F34/F35,3'_F80
4 Series: 4'_F32/F33/F36,4'_F82/F83
5 Series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 Series: 6'_E63/E64,6'_F06/F12/F13
7 Series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X Series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71,
X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z Series: 3'/Z3_E36,Z4_E85/E86,Z4_E89
I Series: I'_I01/I02
MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56
Include : Drive , Chassis and Body all system

2. Supports BENZ Between 2001 to 2018
A (177)，A (176)，A (169)，A (168)
B (242, 246)，B (245)，
C (205)，C (204)，C (203)
E (238)，E (213)，E (212)，E (211)，E (210)，E (207)
S (222)，S (221)，S (220)，S (217)
CLA (117)
CLK (209)，CLK (208)
X 290 AMG
CLS (257)，CLS (218)，CLS (219)
CL (216)，CL (215)
SLK/SLC (172)，SLK (171)，SLK (170)，SL (231)，SL (230)
AMG GT (190)，SLS (197)，GLS (167)，GLE (167)，GLE (292)
M/GLE (166)，M (164)，M (163)
G (463)，G (461)，GL/GLS (166)，GL (164)，GLC (253)，GLK (204)，GLA (156)
R (251)，SLR (199)，Maybach 240
Include : Drive , Chassis and Body all system (Engine, Auto transmission, AB-airbag, ABS, EPS, TPMS, Air condition etc. have more than 100 systems)

3. Supports all vehicle of VW, Audi, SKODA, SEAT before 2020
Supports all system on the vehicle, include: Engine, Auto transmission, AB-airbag, ABS, Air conditioning, Battery management, Light control ect. More than 200 systems.

4. Supports Fiat, Alfa-Romeo, Lancia, Abarth all vehicle between 2001 to 2016

FIAT models: JF-Freemont,FQ-Fiorino Qubo, MT-Mito, PE-Punto EVO, CL-500L, CM-Viaggio, FF-500, DB-Doblo, BF-Fiat 500L, NP-Panda, DC-Ducato, OT-Ottimo, FB-500X, GA-Giulia etc.
Alfa-Romeo models: GU-Giulietta, QC-4C, MT-Mito, GA-Giulia, 33, 145, 146 etc.
Lancia models: NY-Ypsilon, JS-Flavia, DEDRA(111, 181), LYBRA, K, MUSA etc.
Abarth models: CC-Cinquecento, FF-500, 500, PUNTO EVO etc.

Creator C600 Specification:

Display: Backlit, 272*480 TFT color display
Working Temperature: 0 to 60 ℃
Storage Temperature: -20 to 70 ℃
Power supply: 8 – 18V vehicle power and 5V USB power
Dimensions(L*W*H): 200 * 95 * 35 mm
Gross Weight: 700g
Net Weight: 500g

Creator C600 Package includes:

1pc x Creator C600 Multi-System Scanner
1pc x User’s Guide
1pc x TF Memory Card
1pc x Memory Card Reader
1pc x Nylon Carry Bag
