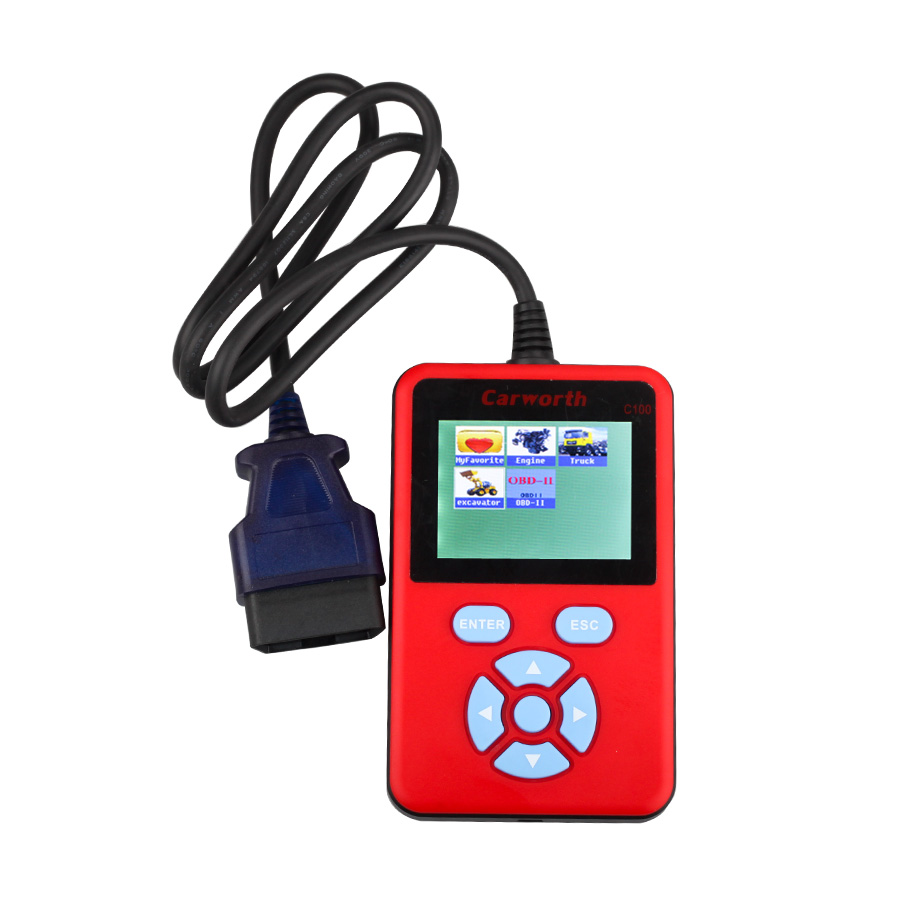

C100-D be designed full of fashion, elegant,and it is easy to carry, it have reading DTCs, clearing DTCs, reading data stream, actuation test functions for 24V Diesel Heavy duty. It is of Easy operation, plug and play ECU can quickly diagnose the cause of the fault and displayed the fault information clearly in text form, and thus discover hidden vehicles which will provide security for the driving.

Ankai,Arf,Astra,Benz,Foton,Cat,Chaochai, Sinotruck,Dacai,Daf,Dfm,Dongfeng,Doosan,VW Jetta,,JMC,CUMMINS,LAIYANG,MACK,MAN,IVECO,QUANC,RENAULT,SANY,SCANIA,SUNLONG,TOYOTO,UD,VOLVO,WEICHAI,xce,xicai,Nissan,YUCAI
Excavator :
Altas,BOBCAT,CASE,KOBELCO,DASIN,DBC,HITACHI,HYUNDAI,INISCE,KATO,XIAGONG,SUNTON,SUMIT

Bosch, Cummins, Caterpillar, Denso, Siemens, Motorola, Zexel, VITO, NanYue, Delphi, Wabco...

Support for all standard models of OBD-II interface

Support trouble shooting all electrical control systems.

By reading the trouble code feature, you can quickly and accurately obtain the reasons of electronic control system (ECU) fault lights reasons.

A key to the elimination of the electronic control system (ECU) temporary failure exists, fault light extinguished.

Real-time display condition information, including engine speed, intake air pressure, acceleration performance, coolant temperature, oxygen sensor voltage and other information in order to analyze the reasons for failure in the technician or vehicle owner Product packaging and appearance.

Read DTC, Read Engine Model, Read Computer Edition Information, Read QR code, Read System parameter number, Read Data Stream, Clear DTC, Read-in QR Code, Component test, Cut off Cylinder Test, Compression Test, Injector Test, Maintenance Help, Study on line and so on some/ most models .

ISO14230 (KWP2000)

ISO9141

SAE J1850 (PWM)

SAE J1850 (VPW)

J1939 (CAN)

IS014229 (UDS CAN)

BENZ-9BIT

Flash Code Protocol

SAE J1708

Host Parameters

1 CPU dual-core architecture CORTEX M3 + ARM9 400M clocked

2 built-in Built-in high-capacity 8G TF card

3 Power supply 9-36(VDC)

4 Port OBD16

5 System Memory 64M SDRAM

6 Monitor 2.8-inch TFT LCD true color touch

7 Resolution 320 × 240,24-bit

8 weight 0.3kg

9 Dimensions 13.2×8.6×2.0cm

10 Storage Temperature -30~45鈩?/div>
