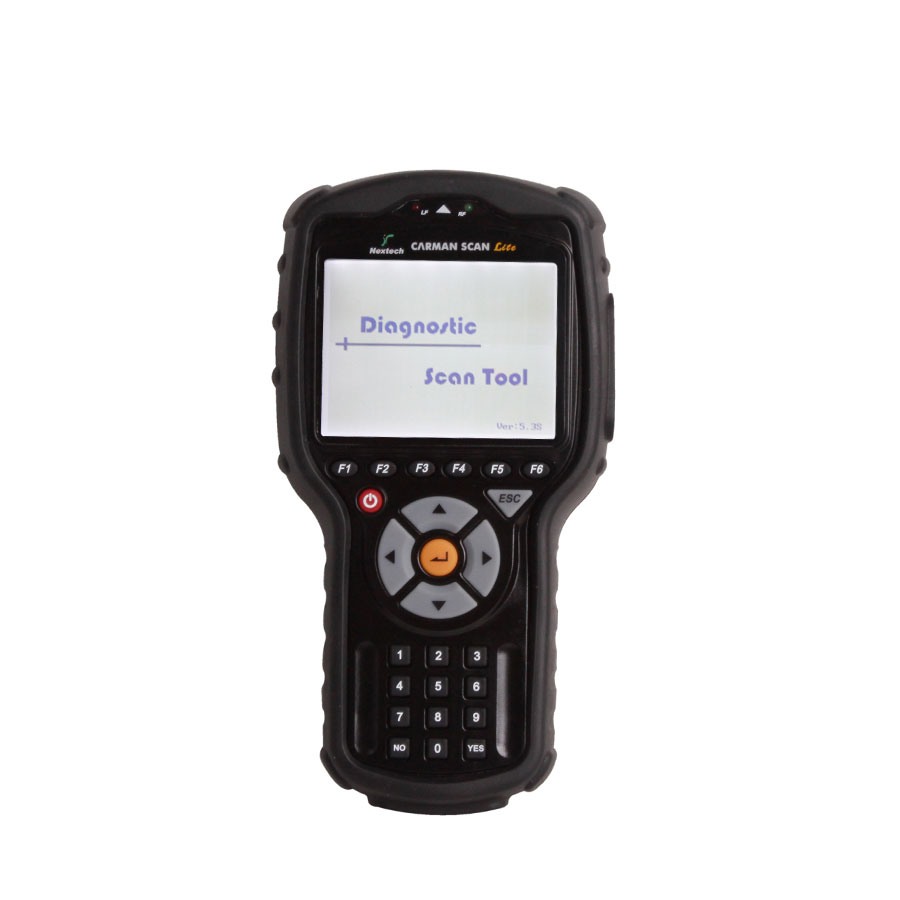

OEM Carman Scan Lite For Hyundai/Kia Especially for Korea Car

Top 5 Reasons to Get Carman Scan Lite

1. Language: English
2. Update: by CD
3. Support year: 1996-2010
4. No need to connect with computer
5. Vehicle Coverage: Hyundai/Kia for Korean, Japanese, European, American, Malaysian, Chinese, Australian and Latin American Locals

Carman Scan Lite Carman Scan Light designed as a compact, robust tool for use in the workshop, We design the SDK (Software Development Kit) for overseas business partnersdevelopment. Without deep knowledge of our hardware and software logic, most of foreign engineers can integrate their having ECU data and develop new scan test software easily.

1. Communication Protocol Compatibility

ISO 9141-2, ISO-14230,

SAE J1850 (PWM, VPW) ,

KWP2000

CAN BUS Communication support

2. Hyundai/Kia Extensive Vehicle Coverage

Korean, Japanese, European, American cars

Malaysian, Chinese, Australian and Latin American locals

3. User Interface

Compact Size: 100 X 150 X 25 mm (4"X 6" X 1")

LED indication of communication status: Tx / Rx

4. Sufficient Memory Capacity

Main Memory: 32MB built-in (Extended up to 128MB)

No external memory is required

Enough to contain extensive supplements

5. Eligibility for Strategic Cooperation with Other Firms

Provision of Open Platform Hardware

Provision of Software after the SDK development

Development of programming and coding tools

Enables faster development by multiple groups

Functionality

On board diagnostic communication

Special vehicle test emulation

The combination provides for easy and comprehensive diagnosis of the electronically

Controlled systems used across the aftermarket model range.

Diagnostic communication with all Hyundai and Kia electronic control systems

Diagnostic communication with Japanese, European, U. S. A. vehicles

OBD-II communication protocol support

Actuator driving function with predefined frequency and duty ratio

High resolution LCD display

Easy and soft touch key

Visual lamp of communication state

Bright screen (Auto backlight)

available in english and French languages.

On-line support for diagnostic trouble code or current data operations

On-line"HELP"key operating support

Built-in main memory (32MB)

Secondary large memory card for s / w update and information storage

PC communication facility

USB support (PC connection etc.)

Compact design

Easy to carry

Technical Data of Components

Case

Bright blue color

High strength ABS material

LCD spec

320 by 240 resolution

EL backlight (Blue green)

Standard character output: 40 columns 12 lines

Keypad

Power ON / OFF key

Soft functional 6 keys

Arrow 4 keys

Enter and ESC each 1 key

Type: soft touch keypad

Memory capacity

8 ~ 36 VDC input

0~ 50

DLC Communication Part

The following protocols can be implemented for applications,

Hyundai and kia vehicle all system

Korea domestic vehicle all system

OBD-II (ISO 9142-2)

OBD-II (SAE-J1850 VPW, PWM)

KWP-2000

CAN

SAE-J1587 for commercial vehicle

Simulator

Vehicle speed (Reed signal) sensor

Actuator driving

Maximum 1A short to ground
