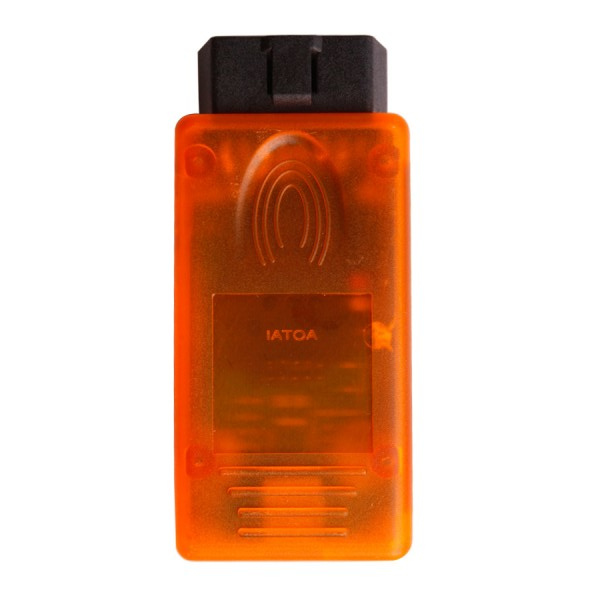

2013.07V E/F SCANNER For BMW

Top 2 Reasons To Get E/F Scanner For BMW

1.166 types of ECU supported
2. Software Version: 2013.07

Notice:

1. Language: English
2. Operating System: Windows XP
3. Please do not update online or use original software, otherwise your BMW E/F SCANNER will be locked! And need send it back for repair
4. There is dongle in the package. Each dongle has the serial number, only can be used the same hardware in the package.
5. Instrument Cluster and CAS1-CAS4 Must Be Adjusted Manually
software system which allows to read,decode and edit ISN password (It is sync password betweenECU and immobilizer ) Correct checksum also calculated automatically

Model List Of BMW E/F SCANNER :

1-series (E81, E82, E87, E88), 2003+
3-series (E90, E91, E92, E93), 2004+
5-series (E60), 2002-2010
5-series (F10), 2010+
5-series “Gran Turismo” (F07), 2009+
7-series (E65, E66), 2000-2008
7-series (F01, F02), 2007+
BMW X5 (E70), 2006+
BMW X6 (E71), 2007+
Mini Cooper (R56, R57), 2005+
Rolls-Royce, 2003+

List of Supported ECU For BMW E/F SCANNER :

1) Drive – 6 categories / 30 types; CAS, DME, EGS, EKPM, GWS, VTG
2) Chassis – 12 categories / 15 types; ASR, CIM, DSC, EDC, EDCSHL, EDCSHR, EDCSVL, EDCSVR, EHC, EMF, RDC, VDM
3) Body – 65 categories / 121 types; AHM, AMP, BFH, BFS, BZM, CCC, CDC, CHAMP, CIC, CID, DWA, ECL, FAH, FAS, FLA, FOMO, FRM, FZD, HKL, HUD, IHKA, JBBF, KBM, KGM, KOMBI, LMA, MASK, MMC, MMI, MPM, PDC, PGS, RAD, RFK, RLS, RSE, SASL, SASR, SBSL, SBSR, SD, SECUR, SFZ, SGM, SHD, SHZH, SIM, SSBF,SSFA, SSH, STVL, STVR, SZL, SZM, TEBF, TEFA, TEL, TMB, TMBH, TMF, TMFH, VID, WIM, ZBE, ZGM

System Capabilities:

DTC reading with clear text explanation, car setting adjustment, maintenance interval adjustment, key programming or blocking, remote control synchronization and much much more!

1. Diagnosis and interpretation of error codes
2. Reading and adjustment of run hours and maintenance intervals for: Oil, Filters, Brake pads, Spark plugs, Liquids, Inspections and services as well as 小袨, 小袧 inspections etc.
3. Adjustment of mileage and maintenance intervals
4. Change/Adjust FA code (currently in test mode)
5. CPU CODING
6. Read/Write RAM/FLASH/EEPROM *
7. Read/Write ISN (marriage CAS and DME/DDE) *
8. ELV Reset (steering wheel lock)
9. Key read/write via OBD2 in CAS2, CAS3, CAS3+
10. Key prog module for E/F-series
11. Learning key or transponder directly in the ignition lock!
12. Lost keys blocking/unblocking
13. Mileage correction module for E/F-series
14. Change AIF (indexes of programming)*
15. Reading the last saved mileage from ECU VIN change *
16. New battery registration

Tech Tip:

Procedure of used ECU installation in car with automatic transmission:
Install used DME/DDE
Switch ignition ON.
Connect BMW explorer,and run Quick test.
Go to EGS ,press Unlock EWS
Got to DME/DDE and read ISN
Switch ignition OFF,connect to CAS,write down old ISN,write ISN previously read from DME/DDE and save it.
Switch ignition ON
Go to DME/DDE and make synchronization procedure.

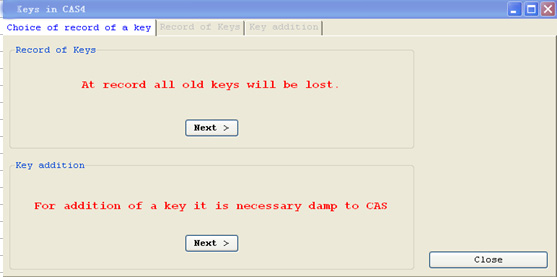

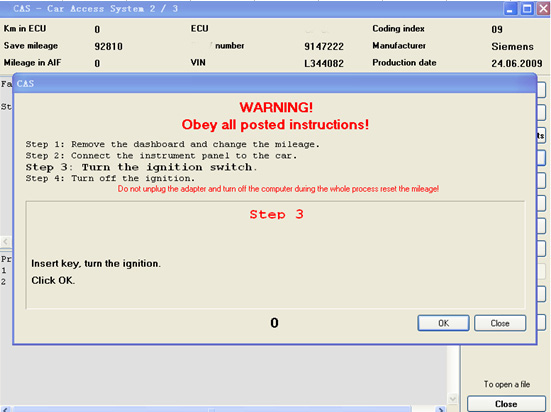

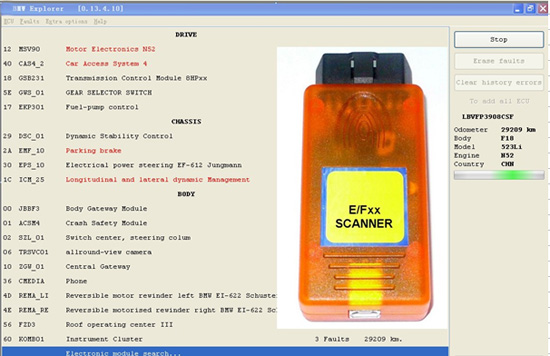

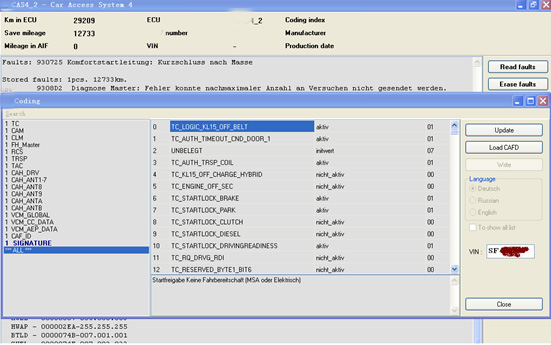

Software Display:
