Benz ECU Test Adaptor

Benz ECU Test Adapter can work with following device:MB KEY OBD2 (SK194),VVDI Tool (SV30), NEC57(SK160, SK160-B), KTAG (SE80 series) and KESS V2 (SE87 series). As long as the ECU flashing tool supports CAN protocol and meanwhile supports these ECU types.

Support ECU Model :

CR3.XX
CR4.XX
CR5
CR6
CR60.XX
SIM271DE2.0
SIM4LKE
SIM271KE2.0
CRD.11
CRD2.XX
ME9.7
MED17.7.X
SIM266
sim4le sim4se

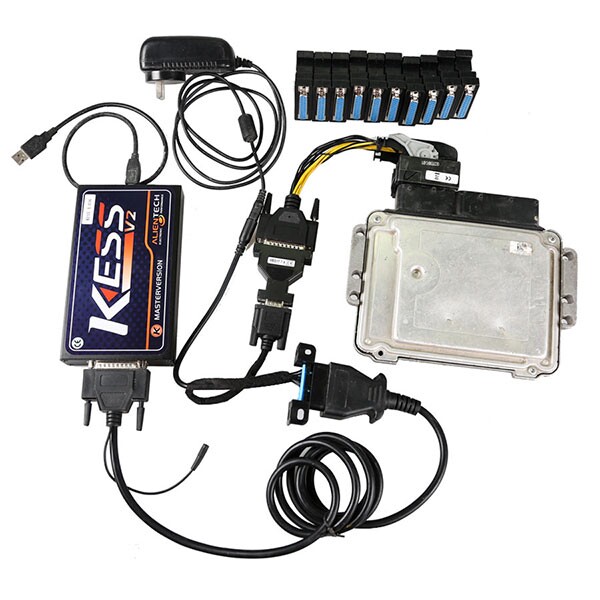

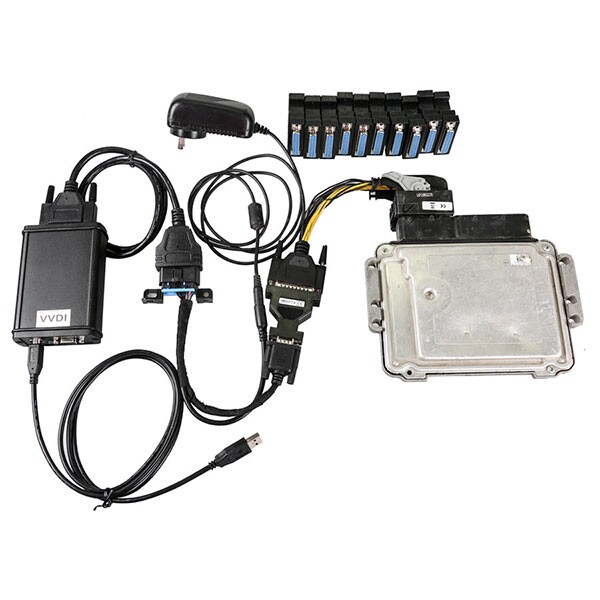

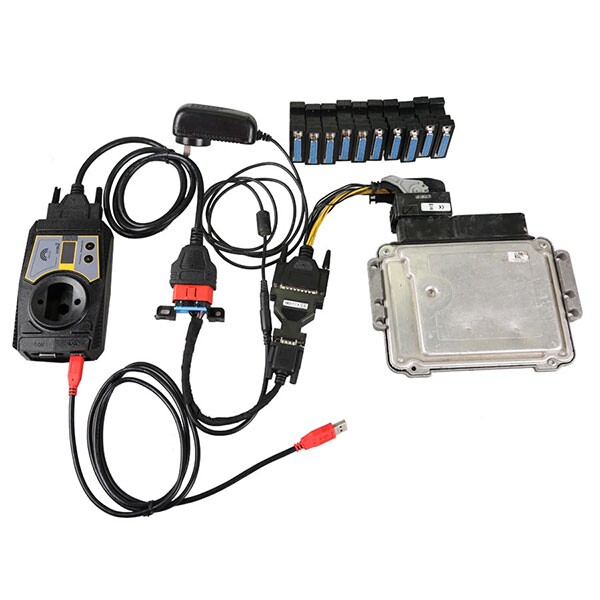

Connection Diagram:




Package Including:

2pc x Benz ECU cable
1pc x CR3.XX Adaptor
1pc x CR4.XX Adaptor
1pc x CR5 Adaptor
1pc x SIM271DE2.0/CR6/CR60.XX Adaptor
1pc x SIM4LKE Adaptor
1pc x SIM271KE2.0 Adaptor
1pc x CRD.11 Adaptor
1pc x CRD2.XX Adaptor
1pc x ME9.7 Adaptor
1pc x MED17.7.X Adaptor
1pc x SIM266 Adaptor
1pc x sim4le Sim4se
