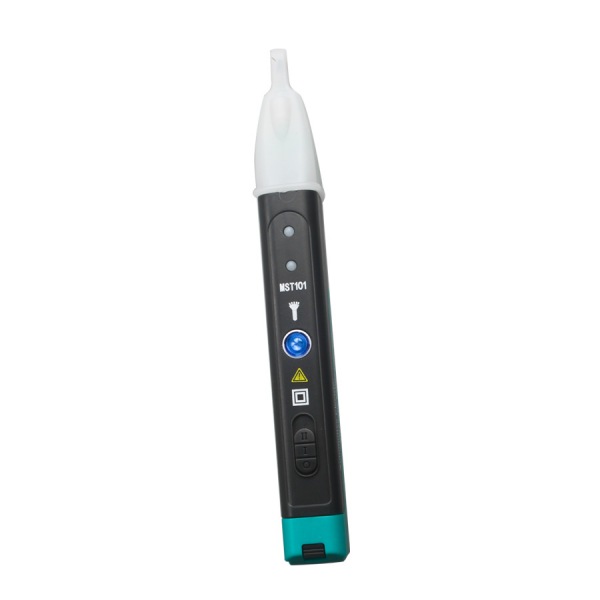

The MST-101 detector is using advanced technology from Germany, it can collect and analyze signals under non-dismantle automotive electrical parts, Testing results are showed by LED indicator and beeper. Easy to know if there is faults of the automotive electronic parts.

Coil (according to the traditional coil, double dingle, according to the coil), coil.

Generators, within the United Nations, combining the fan motor (heating and cooling water valve)

MAITRISER valve, injector, according to the plug-in fuel, power, sensor transfer effect lobby

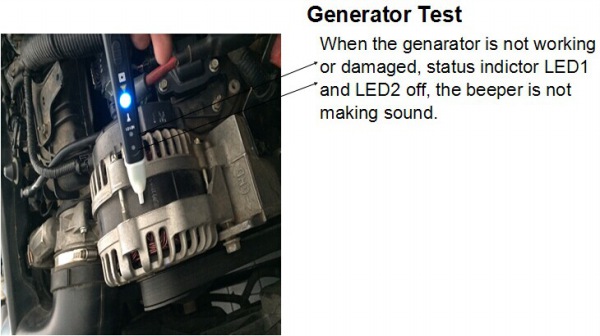

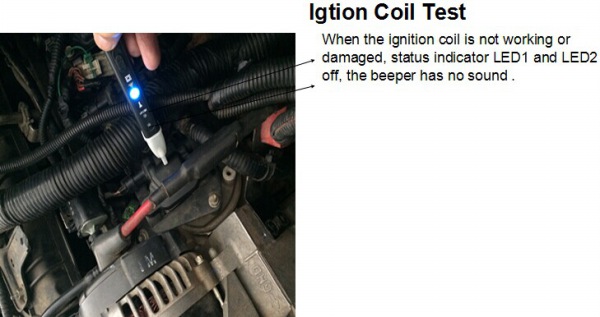

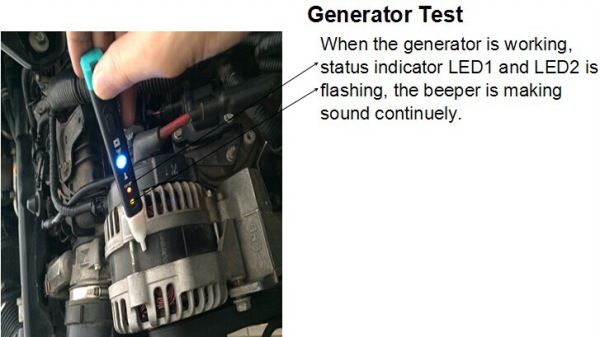

Ignition Coil(traditional coil,double spark coil,single spark coil) generator, fan,electric-magnetic valves,emission gas controlling value, fuel injectors,relay.etc.

1. The car to be tested should park at an area with good air condition, can not suck into exhaust emission from engine

2. The car to be tested should be far away from smoke and fire source;The gasoline engine and chargeable battery is possible to occur explosive air,

so it is very necessory to prepare fire extinguish gears accordingly.

3. During test process, it is necessory to avoid the moving parts and heat source to protect tester and testing equipments.

4. To be far away from the cooling fan of engine

5. Do not put other equipments on the battery which is possible to make the battery inside to be Short, which may cause hurt or damage of tester and equipments.

6. Do to turn off the ignition switch before connecting or remove electrical parts.

7. Do not leave the car during the test

8. Please confirm the gear position of the car : automatic is at P; manual is at blank; Do push tight of manual brake ; put blocks before the driving tyres

9. Please read relative warnings from car manufacturer,pay attention to the important warning information.

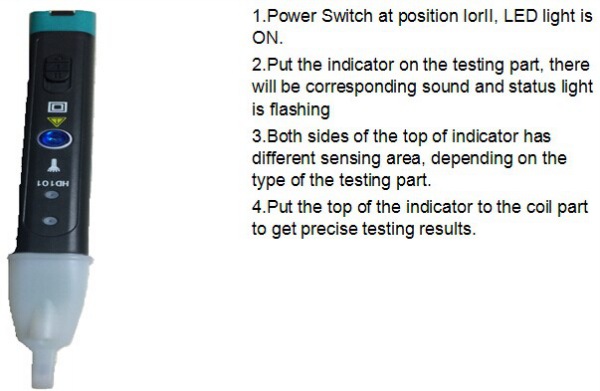

1. To make Pen power signal detector test components, there will be a clignote LED and corresponding spoken language if park run very well.

2. With 2 different detectors on high sensitivity test can be power lines.

3. About a detector Pen line antenna to specific test results.

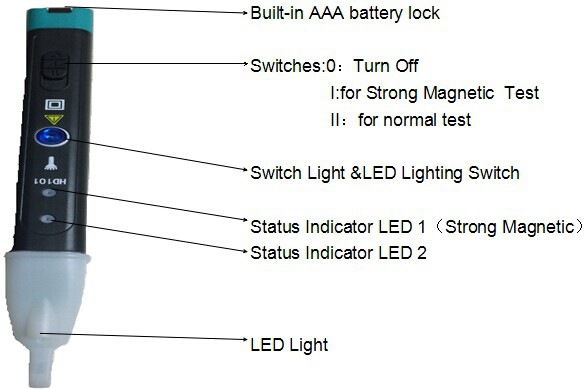

4. There are about detector Pen model overturned.Used for normal test, are being used to strong magnetic field test.

1pc x Automotive Electronic Faults Detector MST-101
