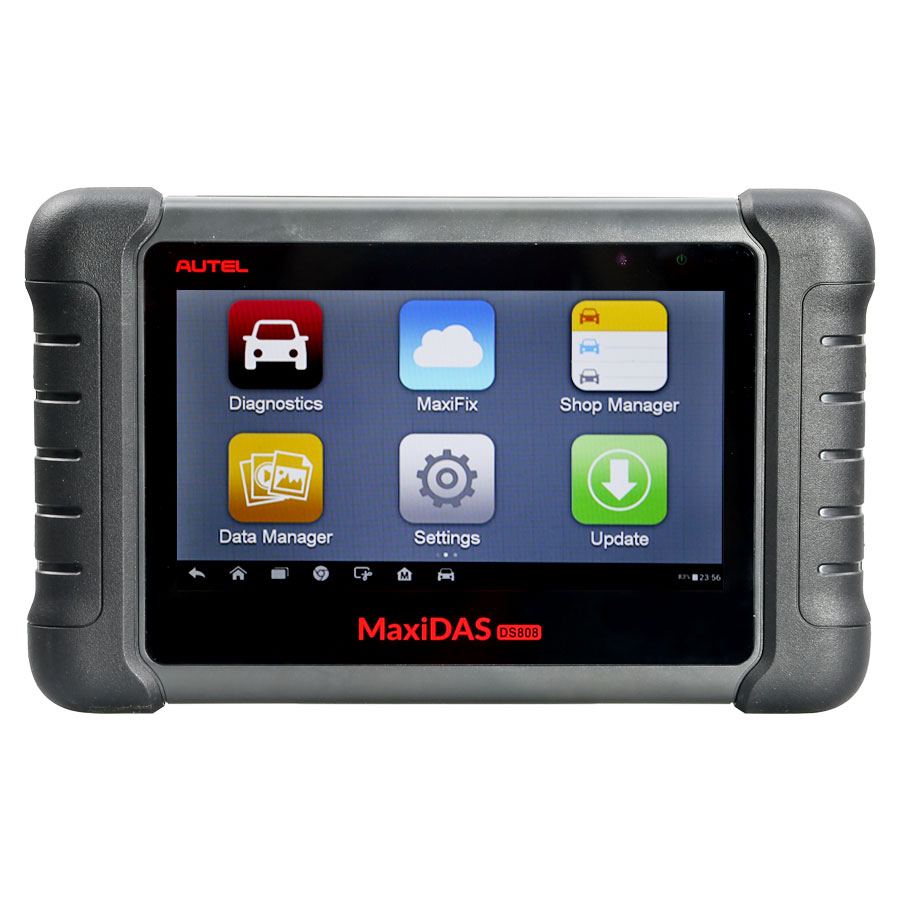

Autel Maxidas DS808

Support injector coding and key coding.

Notice:
1. Autel Maxidas DS808 is standard set, if you want full set, please choose Autel Maxidas DS808K
2. Autel Maxidas DS808 Now Support Customized Languages besides English. If you need to change device languge, please send us serial number and your location first. And it will cost usd120.
We can authorize other language like Korean, Russian, Portuguese, Dutch & Swedish.

Autel Maxidas DS808 Features:

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Smart AutoVIN technology for identifying vehicles easily
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data

Autel Maxidas DS808 Diagnostic Function:

retrieve ECU information,
read & erase DTCs
view live data
perform active tests.

The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more.

Autel Maxidas DS808 Vehicle List:

1. European vehicle list:
AUDI, BENZ, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.

2. USA vehicle vist:
GM, CHRYSLER, FORD

3. Asia vehicle list:
SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.

Autel Maxdidas DS808 Usermanual:

This manual contains device usage instructions,click here to download.

Autel Maxdidas DS808 Update:

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.
2. Tap the Update application button from the MaxiDAS Job Menu; or tap the update notification message when received one; or tap the
Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.
3. Check all available updates: If you decide to update all the items, tap the Update All button.If you only want to update one or some of the item(s), tap the
Update button on the right column of the specific item(s).
4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.
5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

Difference between Autel Maxidas DS808 and Autel Maxidas DS708:

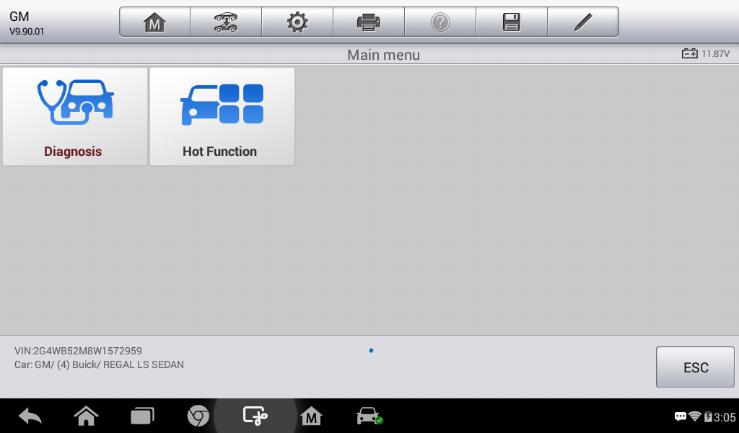

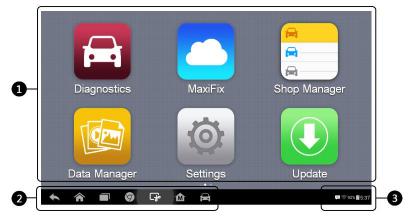

Autel Maxdidas DS808 Screen Display:





Maxidas DS808 Specification:

Recommended Use Indoor
Operating System Android™ 4.4.4
Processor Cortex-A9 processor (1.5 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors Ambient light sensor for brightness auto changing
Audio Input/Output Input: N/A • Output: buzzer
Power and Battery 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. -10 to 60°C(14 to 140°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight 788 g (2.42 lb.)
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed,Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel DS808 Package List:

USB External Power Adapter
USB External Power Adapter
User Manual
Quick reference guide
Main cable
Carry Case Mini
USB Cable
