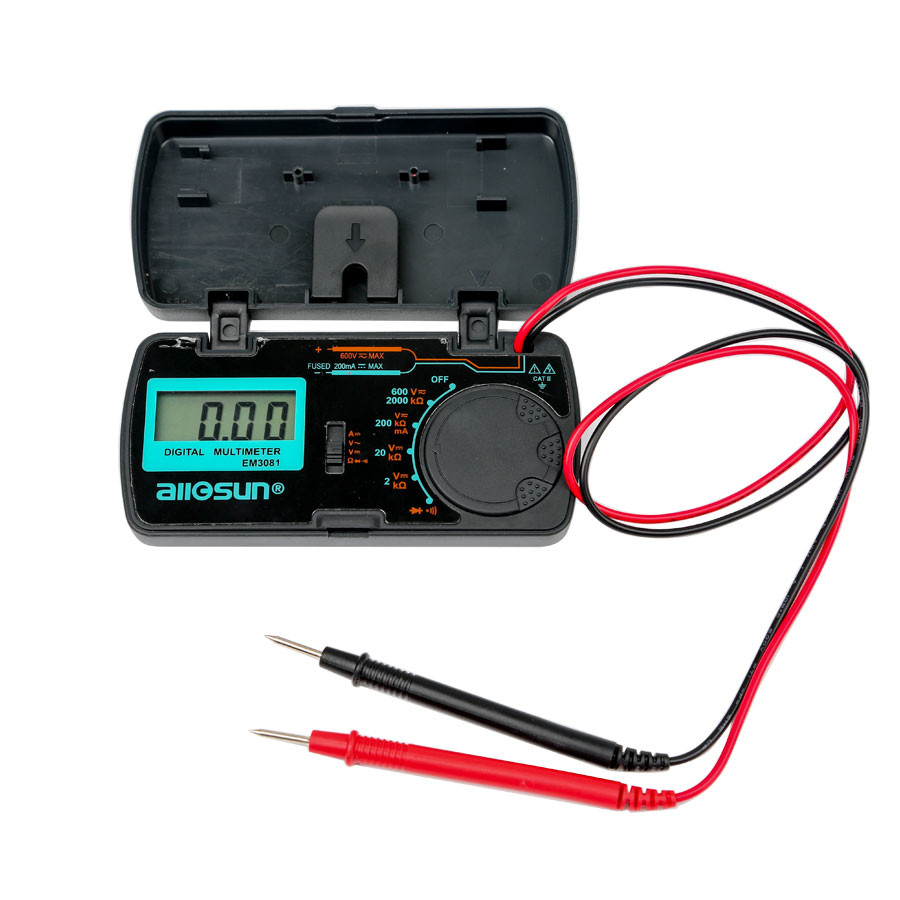

All-Sun EM3081 Digital Multimeter for Measuring DC and AC Voltage EM3081 Diagnostic Tester

All-Sun EM3081 Feature:

1) Display: 3 1/2-digit LCD with a max,reading of 1999
2) Overrange indication: Only figure"1" shown on the display
3) Negative Polarity Indication: Negative sign"-"shown on the display automatically
4) Sampling Rate: Approximate 2 to 3 times/sec
5) Operation Environment: Temperature:0-40 degree
Relative humilty:<75%
6) Storage Temperature: Temperature:-10-50 degree
Relative humilty:<85%

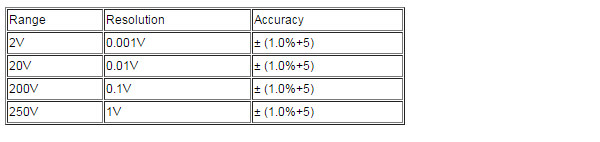

All-Sun EM3081 DC Voltage:


Input Impedance:1MΩ
Max.Allowable Input Voltage:250V dc
Max.Open Circuit Voltage:About 0.4V
Overload Protection:250V DC/AC rms

All-Sun EM3081 AC Voltage:


Input Impendace:About 500KΩ
Frequency Range:40Hz to 400Hz
Max.Allowable Input Voltage:250V ac rms
Responable:Average.calibrated in rms of sine wave

DC Current:







Package List:

1pc x All-Sun EM3081 Digital Multimeter for Measuring DC And AC Voltage
