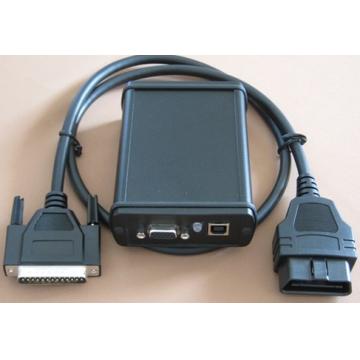

VAG Commander 8.1 is a Windows PC based diagnostic software for the vehicles from VAG. With the help of this tool you can perform operations with vehicles from the VAG group, which are in most cases unsupported from the producer diagnostic testers. The ABRITES Commander for VAG provides you also a full diagnostic capabilities for VAG-vehicles.

Standard diagnostic functions:
Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
For all electronic control units reading identification data
For all electronic control units read error (DTCs)
For all electronic control units clear error (DTCs)
Scan all units
Broadcast requests
Measured values
Adaptation

Special functions:
Instrument CAN- With this function you can establish diagnostic session with the Instrument cluster using KWP2000 over TP2.0- You can read current odometer value- You can change odometer value- Read/Program memory of instrument cluster immobilizer- Reading security access code of the IMMOBILIZER- Read/Write immobilizer related data
EZS - Kessy (Q7/A6/Allroad)- With this function you can prepare dealer key/learn dealer key- Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)
Instrument K-Line- With this function you can establish disgnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)- You can Read/Change odometer value- Read PIN code- Read/Write eeprom- Read ROM/Flash from the Instrument cluster
Engine Control Unit- Read EDC17/MED17 flash memory - Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flashmemory via OBDII (K and CAN). Calculation ofchecksums while programming, ME7.1.1, MED9.x, ME7.5) - Read/Write flash counters (EDC16)- Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.) - Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD) - Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)- Enable/Disable immobilizer (EDC15, ME7.x, EDC16) - Odometer correction (EDC15, EDC16)
