Description:
In accordance with releasing new products that introduce CAN communications systems, MMC has developed the MUT-III as a next generation diagnosis tester for servicing these new and future vehicles.

A personal computer (PC) is connected to the MUTIII unit and used as a system's control terminal, and communicates with a vehicle ECU through the VCI. In addition to being able to handle all diagnosis functions covered by the conventional MUT-II tester, the MUT-III system can display data as easy-to-understand diagrams and graphs on a large screen of the PC. Unlike the MUT-II, the MUT-III can retain data on all vehicles, from old to new models, classified according to destination in the PC's hard disk. This eliminates the awkward but essential job with the MUT-II, of switching the data list (communications protocol data and diagnosis item list database) by replacing the ROM pack with another according to the vehicle model and year model.New functions that make use of the advantages of the PC are also being developed. For example, the workshop manual viewer is a useful function for mechanics as they no longer have to carry around a thick manual and search for relevant pages while working on a vehicle. The workshop manual viewer is currently available for certain vehicle models, and allows users to retrieve the pages containing the failure code for a particular problem at the push of a button.

MUT-3 PC software application supports following languages: English, Czech, French, German, Greek, Italian, Spanish, Turkish, and Russian.

Set Includes:

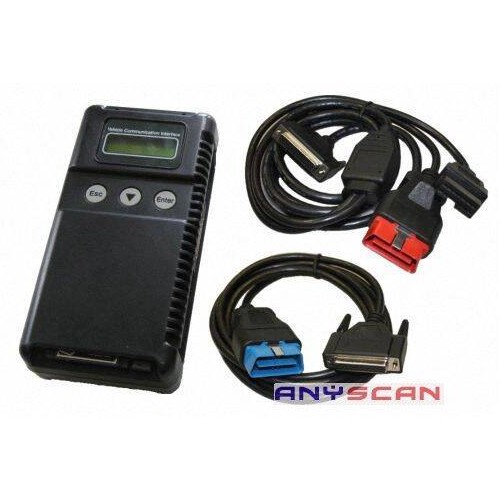

(1) Vehicle Communication Interface (V.C.I.) (MB991824)A communication interface used to connect the vehicle ECUs and the PC.
1. When connected with the PC- Vehicle diagnosis (Interactive fault diagnosis)- SWS communication; CAN communication support- Drive recorder- Volt, Ohm, measurement- Fuel pressure measurement (Not available in US)
2. When used with the V.C.I. unit (disconnected from PC)- V.C.I. Stand-alone diagnosis- Drive recorder- ECU reprogramming- Volt, Ohm measurement- Belt Tension measurement

(2) Memory CardStores data for ECU reprogramming, drive recorder, etc.This is a standard, off-the-shelf memory card. The one provided (with reprogramming data) is a Compact Flash memory card (MB991853) inserted into the CF card adapter (MB991939).

(3) M.U.T.-III Main Harness A (MB991910)Used when connecting the V.C.I. with vehicles that have only one 16-pin diagnosis connector.- Supports fault diagnosis and ECU updating on the above-described vehicles- Supports the CAN communication system

(4) M.U.T.-III Main Harness B (MB991911)Used when connecting V.C.I. with vehicles that have a 16-pin + 12-pin or 16-pin + 13-pin diagnosis connector.For models equipped with only 12-pin (or 12-pin + 12-pin) diagnosis connector, connect the M.U.T.-II adapter harness (MB991498) to the end of this harness in the same as M.U.T.-II, and power is supplied from the cigarette lighter socket.

(5) Carrying case
Download MUT-3 manual
Download SMV manual
PLEASE CONTACT USI

Basic Functions:
1.The MUT3 can be utilized for all types of vehicle electronic control units (incorporating the diagnostics function).
2. The MUT3 reads each diagnostic code and displays it as a name.
3. Using serial communications, the MUT-III reads the RAM data (data list) within the ECU that is required for servicing, thus enabling the display of both graphs and numeric values converted to physical quantities. (Only for ECUs that support serial communications.)
4. The MUT3 can forcibly drive or forcibly stop the actuators required for servicing. (Only for ECUs that support serial communications.)
5. Using its voltage measuring function, the MUT-III can measure DC voltage ranging from +/-40V.
6. Using its resistance measuring function, the MUT-III can measure resistance ranging from 0 ~ 100kOhm.

V.C.I. Function Fault Diagnosis:
1.The V.C.I. can perform fault diagnosis by receiving commands from a PC and communicating with a vehicle ECU. The buttons on the V.C.I. will not function while it is connected to a PC. [Start-up Screen]
2.The screen to the left will be displayed when the USB cable is connected to the main unit. The direction of signal flow between the PC and the V.C.I. will be indicated by an arrow, such as [P->V] or [P<-V].

MUT3 PC software application supports following languages:
English, Czech, French, German, Greek, Italian, Spanish, Turkish, and Russian.

Set Includes:
(1) Vehicle Communication Interface (V.C.I.) (MB991824)
A communication interface used to connect the vehicle ECUs and the PC.

1. When connected with the PC
- Vehicle diagnosis (Interactive fault diagnosis)
- SWS communication; CAN communication support
- Drive recorder
- Volt, Ohm, measurement
- Fuel pressure measurement (Not available in US)

2. When used with the V.C.I. unit (disconnected from PC)
- V.C.I. Stand-alone diagnosis
- Drive recorder
- ECU reprogramming
- Volt, Ohm measurement
- Belt Tension measurement
(2) Memory Card
Stores data for ECU reprogramming, drive recorder, etc.
This is a standard, off-the-shelf memory card. The one provided (with reprogramming data) is a Compact Flash memory card (MB991853) inserted into the CF card adapter (MB991939).
(3) MUT3 Main Harness A (MB991910)
Used when connecting the V.C.I. with vehicles that have only one 16-pin diagnosis connector.
- Supports fault diagnosis and ECU updating on the above-described vehicles
- Supports the CAN communication system
(4) MUT3 Main Harness B (MB991911)
Used when connecting V.C.I. with vehicles that have a 16-pin + 12-pin or 16-pin + 13-pin diagnosis connector.
For models equipped with only 12-pin (or 12-pin + 12-pin) diagnosis connector, connect the M.U.T.-II adapter harness (MB991498) to the end of this harness in the same as M.U.T.-II, and power is supplied from the cigarette lighter socket.
(5) Carrying case
MUT3 manual
SMV manual
PLEASE CONTACT US!
