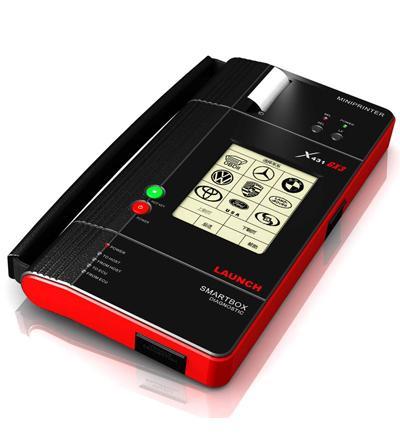

Description of LAUNCH X431 Master
LAUNCH X431 Master is update free by internet for lifetime.It is a new automotive diagnostic product and designed by LAUNCH with the technology of 'Open Control Platform for Vehicle'representing the highest level of automotive diagnostic technology in the world. It's a perfect marriage between automotive electronic technology and information networking.It carries PDA functions apart from reading trouble code, data stream and actuation test, sensor waveform and digital code control.It's faster to communicate with cars than X-431 by integrated structure to save time in work. It can test most of cars by using the unique 16 PIN connector which integrates the function of all 16 PIN connectors of X-431. 24V operating voltage capability is added to work with different kinds of batteries. It is easier and more conveniet to operate than X-431 based on the smart design.The Launch X431 master is one of the best selling X431 launch tools,which has acquired all the diagnostic function of the X431, with a number of improvements. An all new integrated structure, allows faster software download times, speeding up ECU communication and providing enhanced software security.

Characters
1. One 16 pin connector is now used to communicate with all with background light cars fitted with a standard J1962 OBD connector.
2. X431 Master has 24V operating capability enabling it to work with different input voltages, whilst providing unit protection from unexpected voltage surges.
3. To print out test data any time with built-in printer,including the dynamic live date stream, and ECU identification.
4. Easy operation through handwriting input on large touch screen.
5. As generic diagnostic equipment, it can interface with diagnostic adaptors of all vehicles models in the world.
6. Strong test capacity to cover all electronic systems.
7. Unique reading of date stream to ensure fast date updating.
8. Strong waveform display to monitor any change in the data stream.
9. Embedded operation system and open-platform diagnosis to make effective diagnosis possible.
10. Complete after-sales service system to give life-long service.
11. Multi-language choices and easy update via the Internet.

Specifications
POperation System: Linux
CPU: 32-bit processor
CF card: 128M
Interface: Standard serial/ parallel port
Power: DC12V
Output: Approx. 9W
Printer: Mini thermo printer
Printer interface: Standard parallel port
Screen: 240*320 LCD touch screen with backlight
Structure: main units, Smartbox and mini printer

X431 Master software list:

Europe car list
Benz diagnostic software V32.00
BMW diagnostic software V33.00
Volkswagen diagnostic software V23.10
Audi diagnostic software V24.00
Skoda diagnostic software V23.10
Seat diagnostic software V23.10
Volvo diagnostic software V25.00
Citroen diagnostic software V23.00
Peugeot diagnostic software V27.00
Fiat diagnostic software V20.00
Opel diagnostic software V28.00
Renault diagnostic software V27.00
Landrover diagnostic software V25.00
Porsche diagnostic software V11.25

Japan Car list
Toyota diagnostic software V36.00
Nissan diagnostic software V28.05
Honda diagnostic software V27.00
Mitsubishi diagnostic software V23.00
Mazda diagnostic software V26.00
Subaru diagnostic software V17.01

Korean car software list
Daewoo diagnostic softwareV22.00
Hyundai diagnostic softwareV35.00
Kia diagnostic software V32.00

America car software list
Ford diagnostic software V36.00
GM diagnostic software V29.00
Chrysler diagnostic software V17.00

Russia car software list
VAZ diagnostic software VAZ diagnostic software V12.05 V12.05
GAZ diagnostic software GAZ diagnostic software V10.09 V10.09

China car software list and others China car software list and others
Xinkai diagnostic software V11.01
Great Wall diagnostic Software V14.00
EOBDII CAN diagnostic software V12.06
Smart OBDII diagnostic software V20.08
Demo Software V11.03

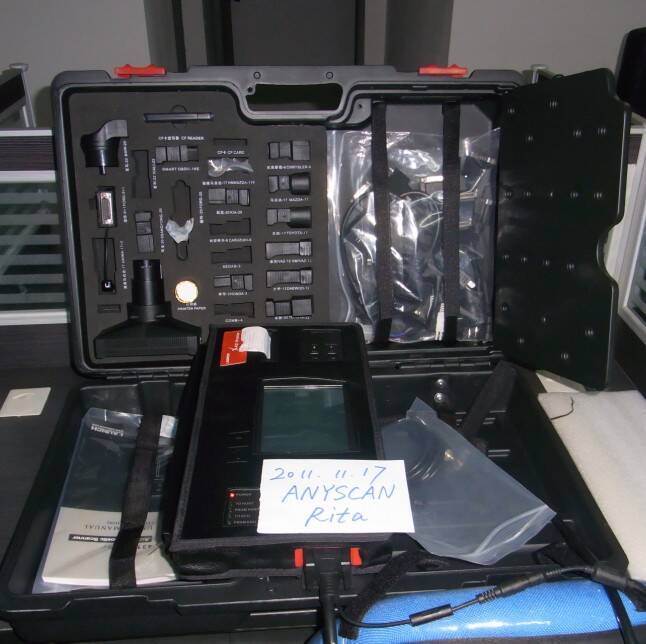

Packing List:
1. Main unit
2. Connectors
TOYOTA-17 1pc
TOYOTA-22 1pc
MITSUBISHI 1pc
HYUNDAI-12+16 1pc
NISSAN-14+16 1pc
HONDA-3 1pc
MAZDA-17 1pc
KIA-20 1pc
BENZ-38 1pc
BMW-20 1pc
GM/VAZ-12 1pc
FORD-6+1 1pc
SMART OBDII-16 1pc
CHRYSLER-6 1pc
UNIVERSAL-3 1pc
FIAT-3 1pc
AUDI-4 1pc
GAZ-12 1pc
BMW-16 1pc
OBDII-16C 1pc
AUDI-16 K-L Converter 1pc
DAEWOO-12 1pc
HONDA-5 1pc
TOYOTA-16 1pc
SUBARU-9 1pc
X-431 CAN BUS II-16 1pc
3.Test Cable Test Cable
MAIN CABLE 1pc
LIGHTER 1pc
CLIPPER 1pc
4.Software memory card
CF card CF card 1pc
5.Accessories Accessories
Clipper fuse 5*20mm 4pcs
Lighter fuse 6*30mm 2pcs
X-431 Power supply 1pc
X-431 Printer paper 1pc
CF card reader 1pc
X-431 Main unit user's manual 1pc
X-431 Main unit user's manual(English) 1pc
Private & confidential 1pc
Driver CD of CF card reader 1pc
USB cable 1pc
User’s manual CD 1pc
DEMO CD 1pc
Russia CD 1pc
X-431 Quick Reference Guide 1pc
Rustless Steel Wire 1pc
