Product Description of AK500 Key Programmer:

It is a carefully designed multi-purpose vehicle intelligent programming system that can adapt to a very good variety of programming environments. This product is a high degree of intelligence to realize the automatic programming function. AK-500 is a specialized vehicle tool to meet the modern high-level computer programming complex, high-efficiency and the development of a new generation of intelligent car computer programming system.

Support models:

1,Mercedes-Benz:W220/W220“Keyless Go”W208/W210/W220/W203/W215/W230/W209/W219/W211/ W230/W215 2,BMW1/3/5/6/7/8/MPC(MPC555/556,MPC561/562,MPC563/564),external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPROM(M95xxx)

3,VolkswagenAudi:MPC(MPC555/556,MPC561/562,MPC563/564),external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPROM(M95xxx)

Features:

1, Match and support function “Keyless Go”of Benz Infrared Key;

2, Support Benz Infrared keys lock and unlock for EIS+ESL+ESM , the leading technology all over the world;

3, Support Directly reading EEPROM for BENZ DAS( 1995-1998 )via OBD, can to unlock DAS when you lost all keys and DAS is locked;

4, Read and write the ESL of E/Class and C/Class via K_line, no need remove ESL;

5, Support Benz ECU’s flash(29F400 and 29F800) and generate key data directly, no need Renew Flash and Programming ECU, the leading technology all over the world;

6, No need to choose the MCU type of EIS. When load EIS file, recognize EIS file, and generate key file. If your MCU is HC705, software will automatically suggest "load next EIS file of HC705"

7, Powerful Motorola MCU programming function, Directly reading dumps of EEPROM(HC908) and Flash(HC912,HC9S12,HC9S12X)for Motorola MCU, in support of the engine ECU of Benz, BMW, VW and Audi etc MPC(MPC555/556,MPC561/562,MPC563/564),external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPROM(M95xxx). It is an advanced tool of car ECU repairing, programming, odometer adjustmenting and key programming as well.

Follow-up upgrade:

Benz(R or W220) shift module ISM and 722.9 gearbox ECU drive authority;

Upgrade ESM read and write EEPROM.

Product parameters:

Online Communication Interface: USB2.

Power Specifications:

AC Input 100-240V, 50/60HZ;

output 12V/2A DC power consumption: 40W

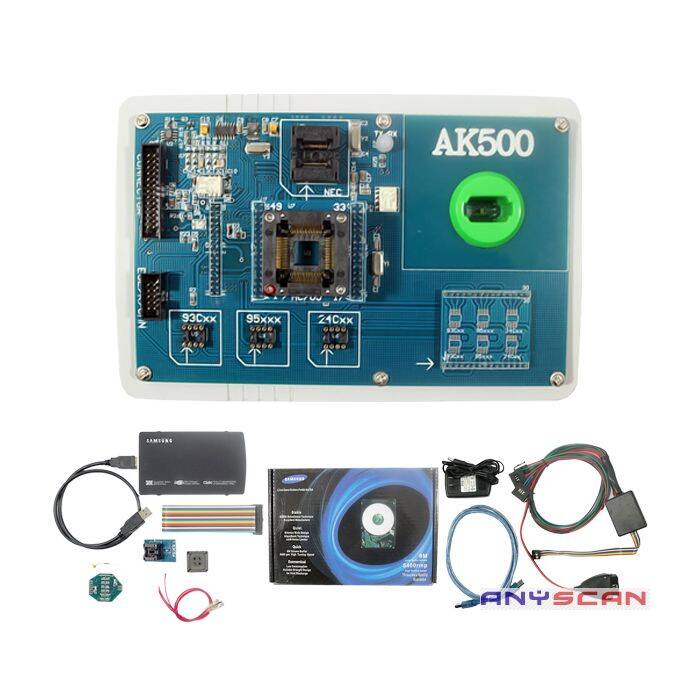

Package Including:

1pc x AK500 Host

1pc x 64G U Disk or mobile hard disk 40G

1pc x HC705 Adapter Folder

1pc x AK500 Connector Cable

1pc x ESL links

1pc x 12V/2A Switching Power Supply

1pc x USB Communication Cable

2pc x MPC Adapter Board

1pc x 4E28B Block Adapter

1pc x EEPROM Adapter Folder
